Cat6a Keystone RJ45 Shielded Inline Coupler Insert
Category: Keystone Jacks & Couplers
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
Overview

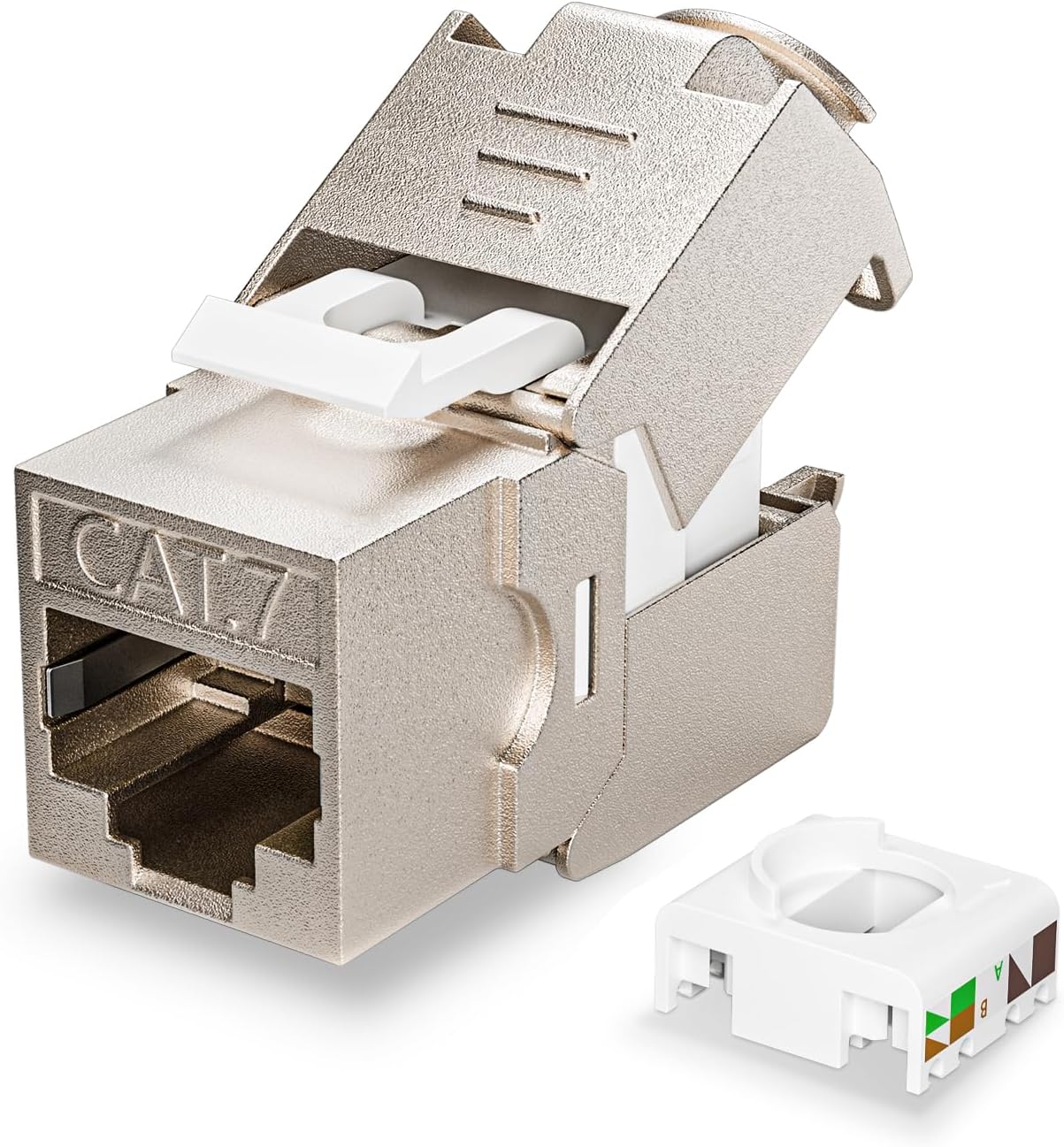

The Cat7 RJ45 shielded toolless keystone jack is designed for ultra-high-speed networking applications. It delivers stable 10 Gigabit Ethernet performance while protecting against electromagnetic interference.
Features
- Supports 10Gbps Ethernet performance
- Bandwidth up to 500–600 MHz
- Shielded design (STP) reduces EMI & crosstalk
- Toolless installation – no punch-down required
- Gold-plated contacts for reliable signal
- Supports 22–26 AWG cables
- T568A & T568B wiring standards
Key Benefits
- Ideal for data centers and high-noise environments
- Fast installation saves time and labor
- High signal stability and reduced interference
- Future-proof network performance
Applications
- Data centers
- Enterprise networks
- Industrial networking
- High-speed LAN infrastructure
- Server rooms
Technical Specifications
| Specification | Details |
|---|---|
| Connector | RJ45 (8P8C) |
| Category | Cat7 |
| Shielding | Shielded (STP) |
| Bandwidth | Up to 600 MHz |
| Data Rate | 10Gbps |
| Cable Support | 22–26 AWG |
| Wiring | T568A / T568B |
| Material | Zinc Alloy Housing |
| Installation | Toolless |
| Compatibility | Cat7 / Cat6a / Cat6 / Cat5e |
| Standards | ANSI/TIA-568, ISO/IEC 11801 |
