Horizontal Fiber Optic Splice Closure 144 Core CH028
Part Number: FL-CH028
Category: Fiber Optic Horizontal Closure
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info

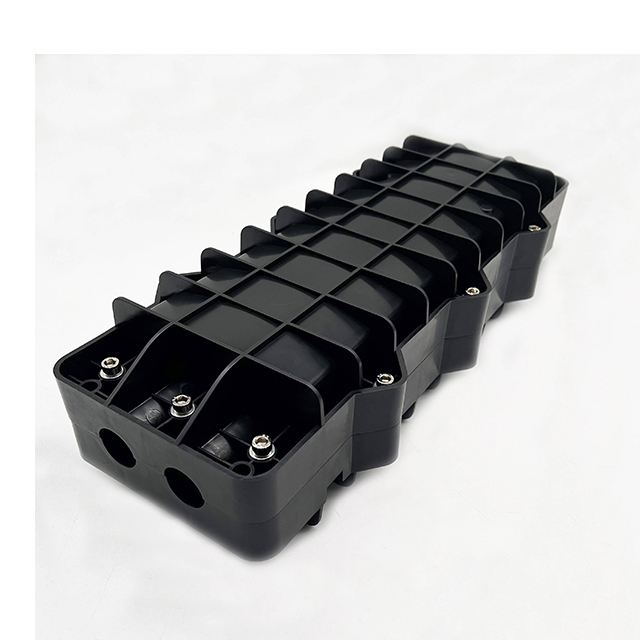

The Horizontal Fiber Optic Splice Closure CH028 is a high-capacity inline splice enclosure designed to protect and organize up to 144 fiber optic splices in outdoor environments. Built with a rugged IP68-rated enclosure and a reusable mechanical sealing system, it provides outstanding protection against water, dust, UV exposure, and harsh weather conditions. The CH028 is ideal for FTTH, FTTx, telecommunications, backbone, aerial, duct, and direct burial fiber optic networks.
- Supports up to 144 fiber optic splices.
- Horizontal inline closure design.
- IP68 waterproof and dustproof protection.
- Reusable mechanical sealing system.
- 6 cable ports for feeder and branch cables.
- High-strength UV-resistant engineering plastic housing.

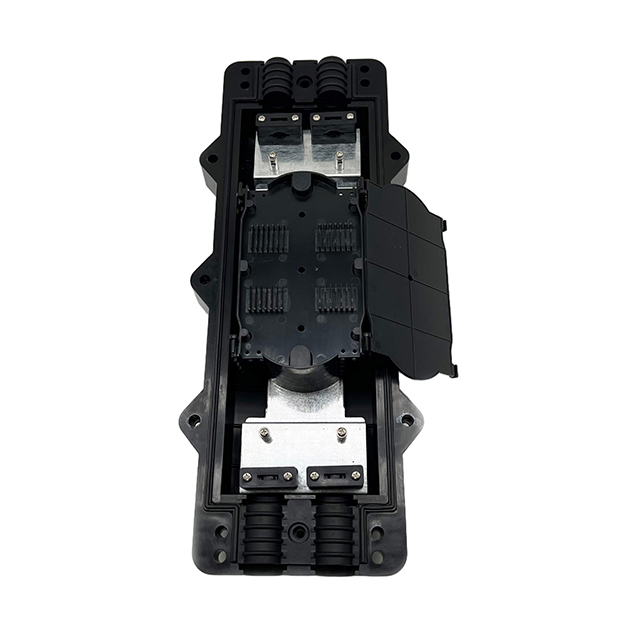

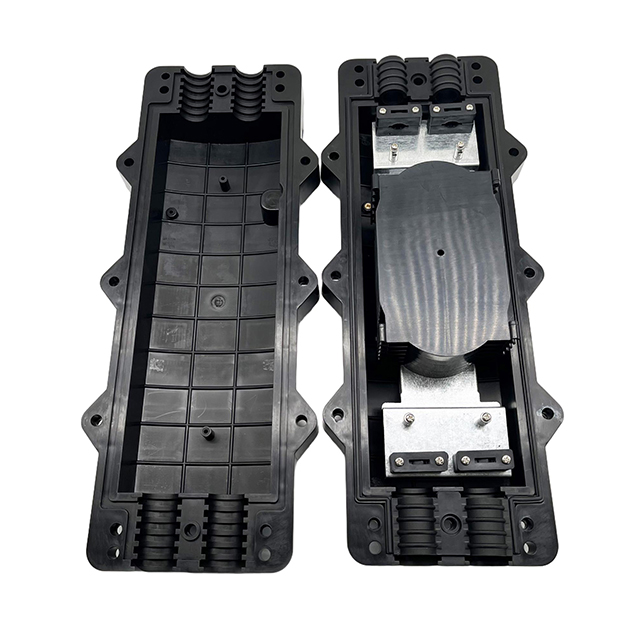

- Modular splice trays for efficient fiber management.
- Compatible with single-mode and multimode fibers.
- Suitable for aerial, duct, wall-mount, and direct burial installations.
- Easy installation and future maintenance.
- Protects fiber optic splices from moisture, dust, and impact.
- Supports high-density fiber optic network deployments.
- Provides quick re-entry for maintenance and network expansion.
- Improves cable routing and splice organization.
- Ensures reliable long-term outdoor performance.
- Reduces maintenance costs with reusable sealing.
- FTTH Networks.
- FTTx Deployments.
- Telecommunication Networks.
- Optical Distribution Networks (ODN).
- Backbone Fiber Networks.
- Aerial Installations.
- Underground Duct Systems.
- Direct Burial Fiber Optic Networks.
| Specification | Details |
|---|---|
| Model | CH028 |
| Product Type | Horizontal Fiber Optic Splice Closure |
| Maximum Fiber Capacity | 144 Fibers |
| Splice Tray Capacity | 24 Fibers per Tray (Up to 6 Trays) |
| Closure Type | Horizontal / Inline |
| Cable Ports | 6 Ports |
| Supported Cable Diameter | Ø8–Ø20 mm |
| Housing Material | UV-Resistant Engineering Plastic (PP + GF) |
| Protection Rating | IP68 |
| Sealing Method | Mechanical Re-enterable Seal |
| Installation Method | Aerial, Wall Mount, Duct & Direct Burial |
| Operating Temperature | -40°C to +65°C |
FAQ
What is the maximum fiber capacity of the CH028?
The CH028 supports up to 144 fiber optic splices using six splice trays with a capacity of 24 fibers per tray.
Is the CH028 suitable for outdoor installations?
Yes. The CH028 features an IP68-rated waterproof enclosure and a reusable mechanical sealing system, providing reliable protection in harsh outdoor environments.
What cable sizes are supported?
The closure supports fiber optic cables with diameters ranging from Ø8 mm to Ø20 mm through its six cable ports.
Where can the CH028 be installed?
The CH028 is suitable for aerial, wall-mounted, underground duct, and direct burial fiber optic network installations.
