LSZH Fiber Optic Patch Cord MM (OM2) 50/125 LC-UPC/ST-UPC Duplex 3.0 mm
Part Number: FLPCO2DX-LC-000-ST-LS
Category: Patch Cord Multi-Mode
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview

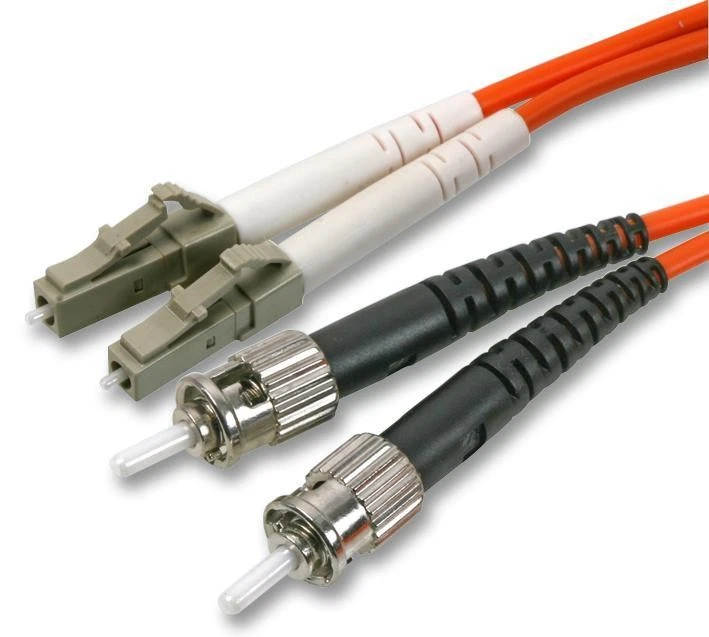

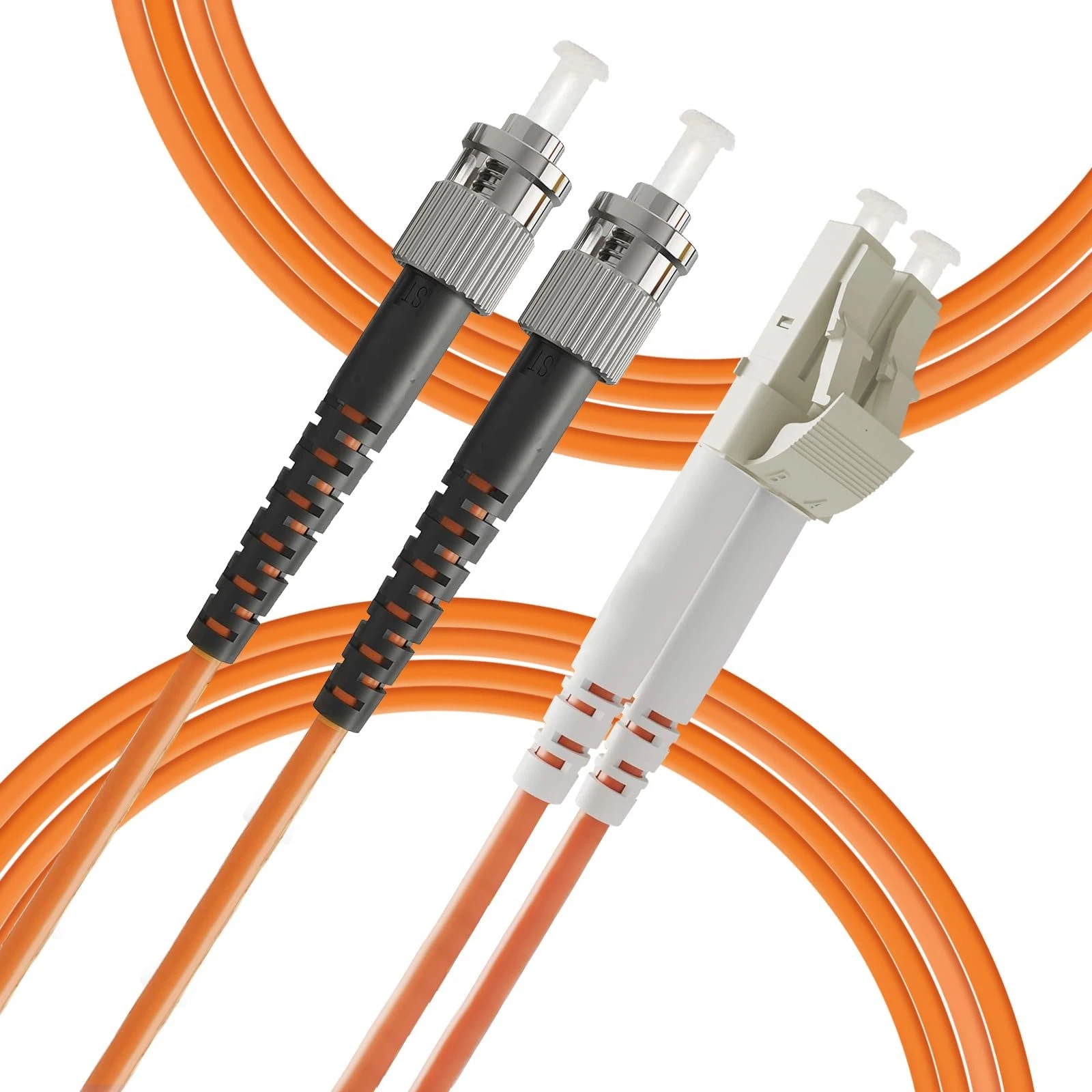

LC-ST OM2 DX patch cord is a multimode duplex fiber optic cable designed for stable and efficient indoor communication systems.
It combines LC and ST connectors, offering flexible integration between modern and legacy fiber equipment.
Features
- LC to ST connector type
- Multimode OM2 fiber (50/125 µm)
- Duplex design (2 fibers)
- Low insertion loss
- High return loss performance
- Hybrid connector compatibility
- LSZH or PVC jacket options
Applications
- Data centers
- Telecom networks
- LAN infrastructure
- Network equipment interconnection
- ODF and patch panel linking
Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Type | Multimode OM2 (50/125 µm) |
| Mode | Duplex |
| Connector Type | LC to ST |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Jacket | LSZH / PVC |
| Operating Temperature | -20°C to +70°C |
FAQs
What is LC-ST patch cord used for?
It is used to connect modern LC equipment with ST legacy systems in fiber networks.
What is OM2 fiber?
OM2 is a multimode fiber type (50/125 µm) used for medium-distance communication.
Is it suitable for data centers?
Yes, it is widely used in data centers and LAN networks.
