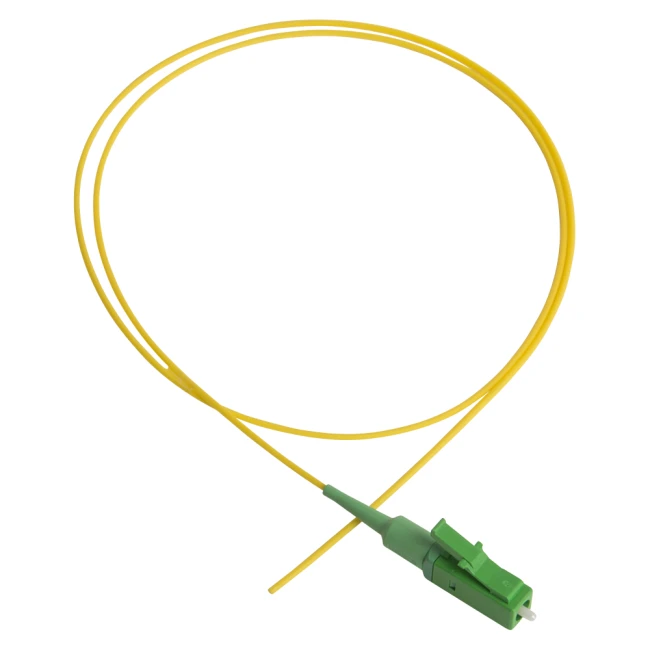

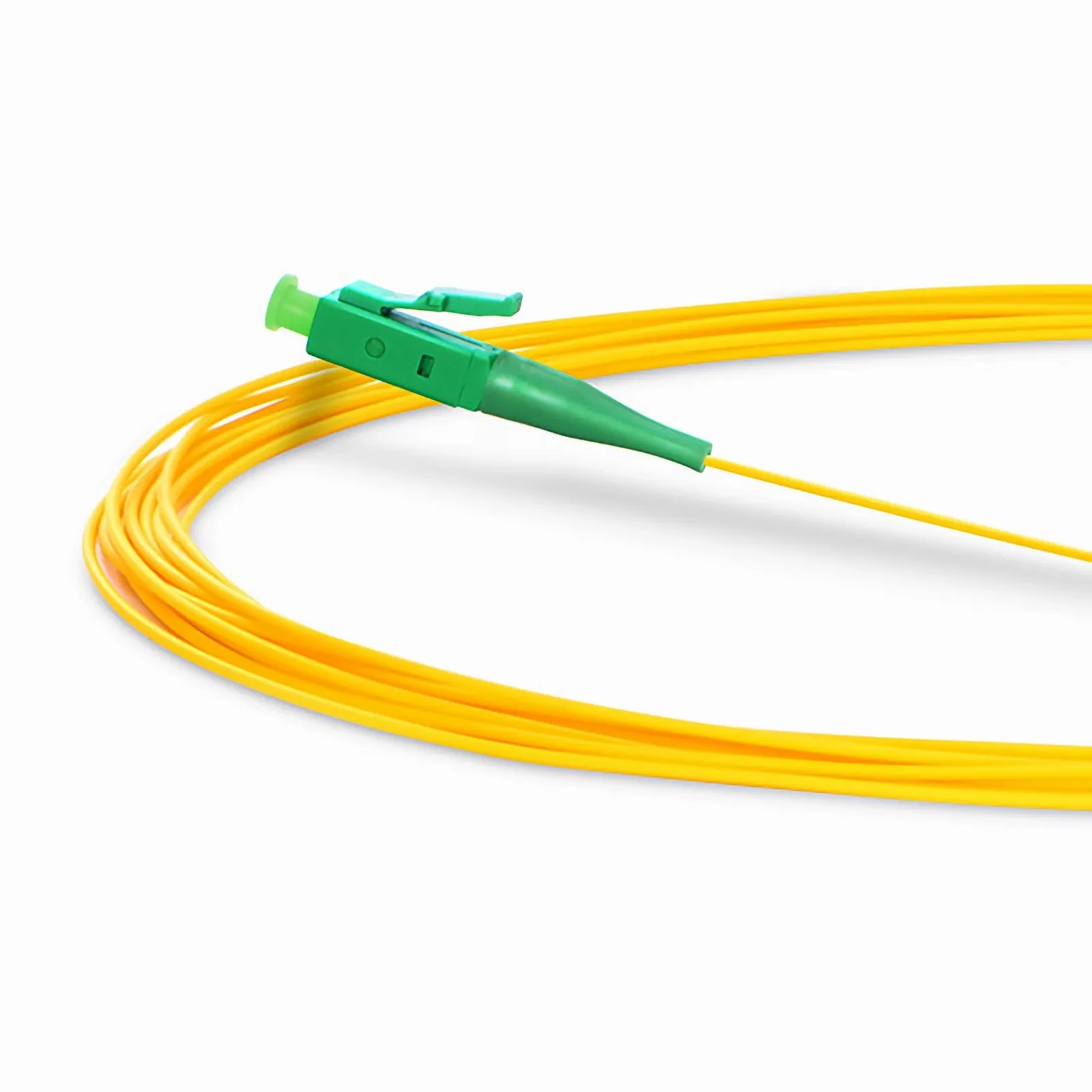

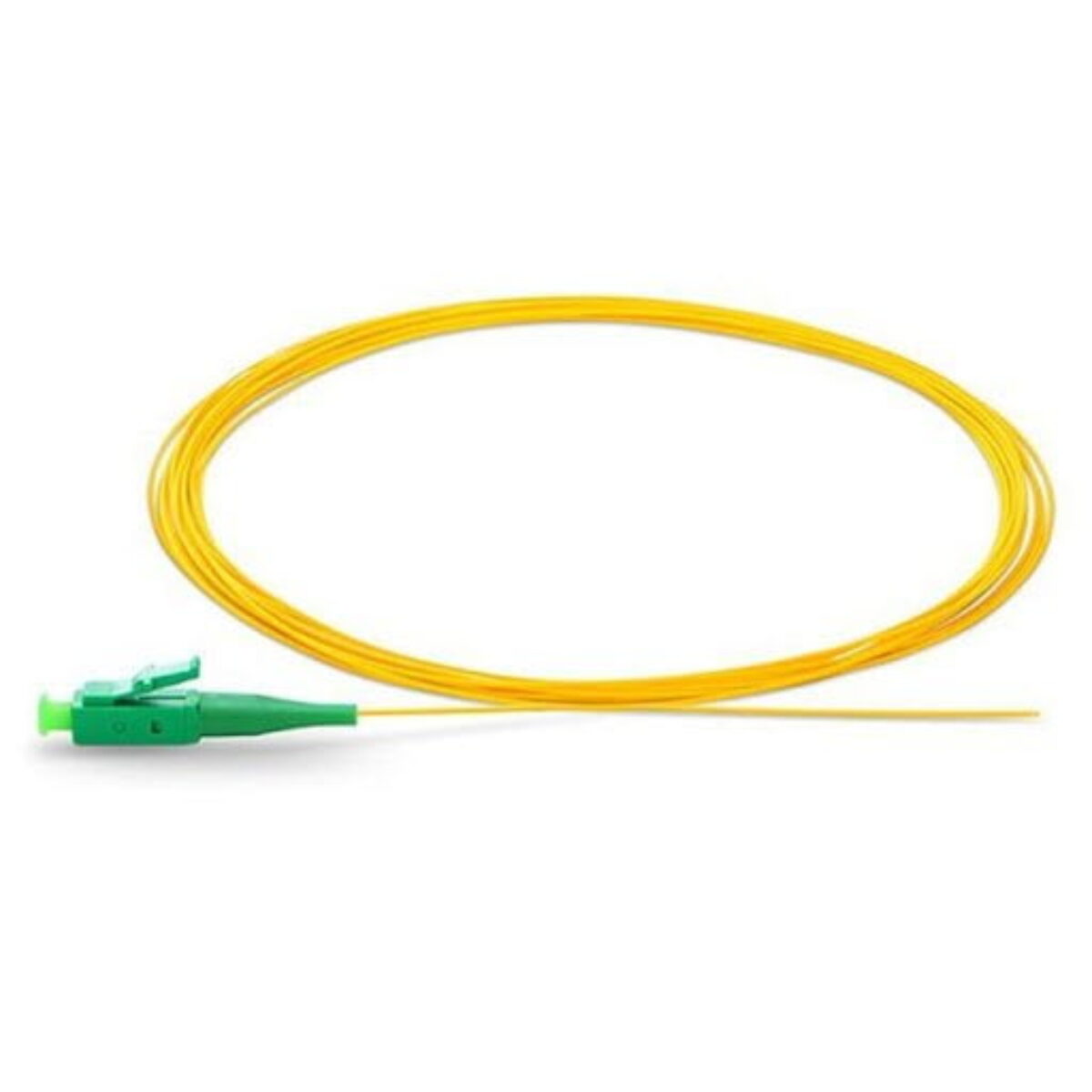

Fiber Pigtail LC APC to Unterminated Simplex OS2 LSZH
Part Number: FLOFPTSCAG7101
Category: Fiber optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fiber Pigtail LC APC to Unterminated Simplex OS2 LSZH is a premium single-mode fiber optic pigtail designed for fusion splicing and optical termination applications. Featuring an LC/APC connector with an 8° angled polished ferrule and OS2 9/125μm fiber, it delivers extremely low back reflection, low insertion loss, and outstanding transmission performance. The LSZH jacket enhances fire safety, making it ideal for FTTH, FTTx, telecommunications, data centers, and high-speed optical networks.
- LC/APC connector with 8° angled polish for ultra-low back reflection.
- OS2 single-mode 9/125μm fiber for long-distance transmission.
- Simplex design with one terminated end and one unterminated end for fusion splicing.
- LSZH (Low Smoke Zero Halogen) jacket for enhanced indoor safety.
- Low insertion loss and excellent return loss.
- Factory polished and 100% performance tested.
- High mechanical durability and long service life.
- Compatible with ODFs, splice closures, patch panels, and FTTH systems.
- Minimizes optical back reflection for superior network performance.
- Provides reliable long-distance single-mode transmission.
- Ideal for high-performance FTTH and FTTx deployments.
- Reduces installation time during fusion splicing.
- LSZH jacket improves safety in enclosed environments.
- Ensures stable and reliable optical connectivity.
- FTTH and FTTx networks.
- Telecommunication infrastructure.
- Optical Distribution Frames (ODF).
- Fiber optic splice closures.
- Data centers and enterprise networks.
- CATV and broadband communication systems.
- Fiber optic fusion splicing applications.
| Specification | Details |
|---|---|
| Product Type | Fiber Optic Pigtail |
| Fiber Type | Single Mode OS2 (9/125μm) |
| Configuration | Simplex |
| Connector Type | LC/APC |
| Connector Polish | APC (8° Angled Polish) |
| Other End | Unterminated |
| Cable Jacket | LSZH |
| Cable Diameter | 0.9 mm |
| Operating Wavelength | 1310 / 1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
FAQ
Why choose an LC/APC connector instead of LC/UPC?
LC/APC connectors feature an angled polished end face that significantly reduces back reflection, making them ideal for high-performance optical networks.
What is this pigtail used for?
It is used for fusion splicing and fiber termination in FTTH, telecom, data center, and broadband fiber optic networks.
Why is the cable jacket made of LSZH?
The LSZH jacket minimizes smoke and toxic gas emissions during fire, making it ideal for indoor installations and enclosed environments.
Is every pigtail factory tested?
Yes. Every pigtail is factory polished and tested to ensure consistent optical performance, low insertion loss, and high reliability.
