LSZH Fiber Optic Patch Cord MM (OM4) 50/125 1 Meter (LC-Connector/SC-Connector) Duplex (3.0 mm)
Part Number: FLPCO4DX-LC-003-SC-LS
Category: Patch Cord OM4 DX
Payment Methods:
Need Support?
01003962411
01044989983
info@fiblit.com
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info

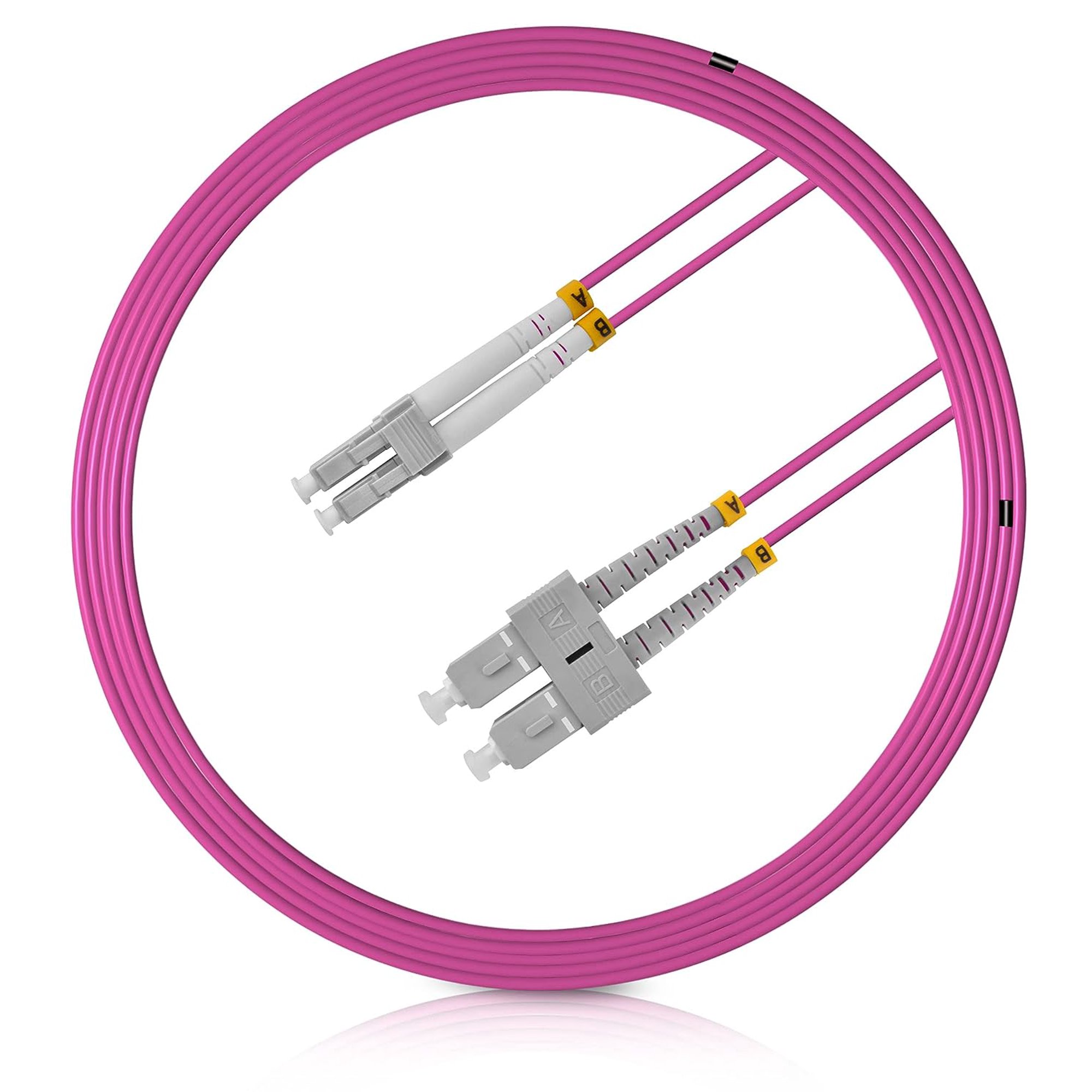

Patch Cord LC-SC OM4 DX Overview
The LC-SC OM4 DX patch cord is a high-performance multimode duplex fiber cable designed for fast data transmission in data centers, LANs, and telecom networks. It features 50/125 µm OM4 laser-optimized fiber, supporting 10Gbps and 40Gbps applications over short to medium distances. The LSZH jacket ensures safety in indoor environments. Ideal for backbone connections, server rooms, and high-speed network cabinets.
Patch Cord LC-SC OM4 DX Applications
- Data centers – backbone and server connections
- Enterprise LAN/WAN networks for high-speed data transfer
- Telecom networks – patch panels and distribution frames
- FTTX (Fiber to the X) deployments for high-speed broadband
- High-performance network cabinets and equipment racks
- Short to medium distance multimode connections (10G/40G)
Patch Cord LC-SC OM4 DX Features
- 50/125 µm OM4 multimode fiber for high-speed performance
- LC to SC duplex connectors with low insertion loss
- Durable LSZH jacket for indoor safety
- Supports 10Gbps and 40Gbps applications
- Flexible and easy to route in patch panels and cabinets
- Available in standard or custom lengths
Patch Cord LC-SC OM4 DX Specifications
| Specification | Details |
|---|---|
| Specification | Details |
| Fiber Type | OM4 50/125 µm Multimode |
| Part Number | FLPCO4DX-LC-003-SC-LS |
| Connector Type | LC to SC Duplex |
| Jacket Material | LSZH |
| Cable Diameter | 3.0 mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 20 dB |
| Standard Length | 1m (custom available) |
| Operating Temperature | -20°C to 70°C |
| Compliance | IEC, RoHS |
Patch Cord LC-SC OM4 DX Benefits
- Reliable low-loss connections for multimode networks
- Safe for indoor installations with LSZH jacket
- Optimized for data center, LAN, and telecom applications
- Supports high-speed 10G/40G network transmission
Patch Cord LC-SC OM4 DX FAQs
What is OM4 fiber used for?
OM4 fiber is optimized for high-speed multimode transmission, supporting 10G/40G networks over short to medium distances.
What connectors are available?
This patch cord uses LC and SC duplex connectors.
Can I order custom lengths?
Yes, lengths such as 1m, 2m, 3m, 5m, 10m, and custom sizes are available.
Is it suitable for indoor use?
Yes, the LSZH jacket reduces smoke and toxic emissions, making it safe for indoor installations.
