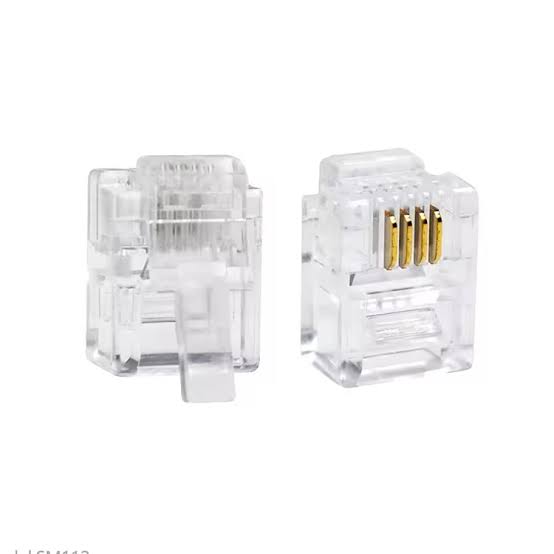

RJ11 Cat3 UTP Standard Modular Plug
Category: Connectors & Plugs
Payment Methods:
Pick up from Our Store
Today 9 am - 6 pm
Indrive, UBER, DiDi delivery
Delivered to your address
Overview
Features
Applications
Technical Specs
Overview
The RJ11 Cat3 UTP Plug is designed for telephone lines and low-speed data transmission. Provides reliable connectivity with standard unshielded twisted pair (UTP) wiring.
Features
- Cat3 standard for voice and low-speed data
- UTP design for easy installation
- Gold-plated contacts for signal reliability
- Compact RJ11 modular design
Applications
- Telephone line connections
- Low-speed data lines
- PBX and communication equipment
Technical Specifications
| Specification | Details |
|---|---|
| Standard Compliance | TIA/EIA-568-B.1 (Cat3) |
| Connector Type | RJ11 Modular Plug |
| Shielding | Unshielded (UTP) |
| Number of Contacts | 6 Gold-Plated Contacts |
| Conductor Compatibility | 22–26 AWG Solid or Stranded Copper |
| Insulation Diameter | 0.90–1.05 mm |
| Operating Temperature | -10°C to 60°C |
