Cat7 RJ45 Shielded Tool-Free Modular Plugs
Category: Connectors & Plugs
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
Overview

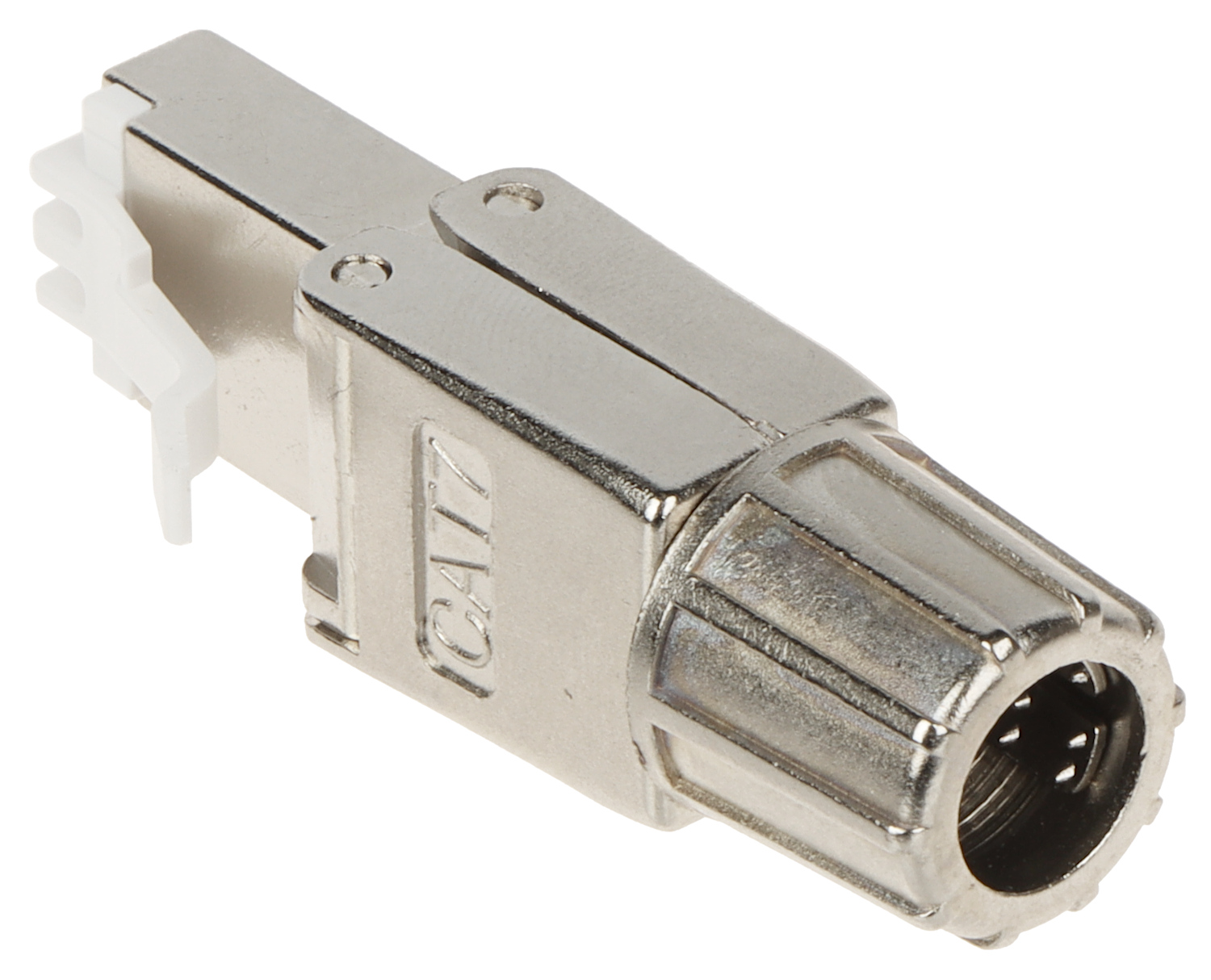

Cat7 RJ45 Shielded Tool-Free Modular Plugs are designed for high-speed network terminations without the need for crimping tools. These connectors support 10 Gigabit Ethernet and provide superior shielding against electromagnetic interference, making them ideal for professional installations.
Features
- Tool-free design (no crimping required)
- Shielded zinc alloy housing for EMI/RFI protection
- Gold-plated contacts for stable signal transmission
- Supports 10Gbps high-speed networking
- Compatible with solid & stranded cables
- Reusable design for easy re-termination
Benefits
- Fast and easy installation (saves time)
- Reduces signal interference and crosstalk
- Improves network reliability and performance
- Durable metal housing for long-term use
Applications
- Data centers & server rooms
- Enterprise network installations
- High-speed LAN environments
- Industrial networking
- HDBaseT and video transmission systems
Technical Specification
| Specification | Details |
|---|---|
| Connector Type | RJ45 8P8C |
| Category | Cat7 (compatible with Cat6A) |
| Termination | Tool-Free (IDC) |
| Shielding | Zinc Alloy Shielded |
| Wire Gauge | 22~24AWG |
| Data Rate | Up to 10Gbps |
| Frequency | Up to 600–750 MHz |
| Wiring Standard | T568A / T568B |
| Operating Temperature | -20°C to 65°C |
Q: Do I need a crimping tool?
No, it is fully tool-free.
Q: What speed does it support?
Up to 10Gbps Ethernet.
Q: Is it reusable?
Yes, it can be reinstalled multiple times.
Q: Why shielding is important?
It reduces EMI and improves signal quality in high-speed networks.
