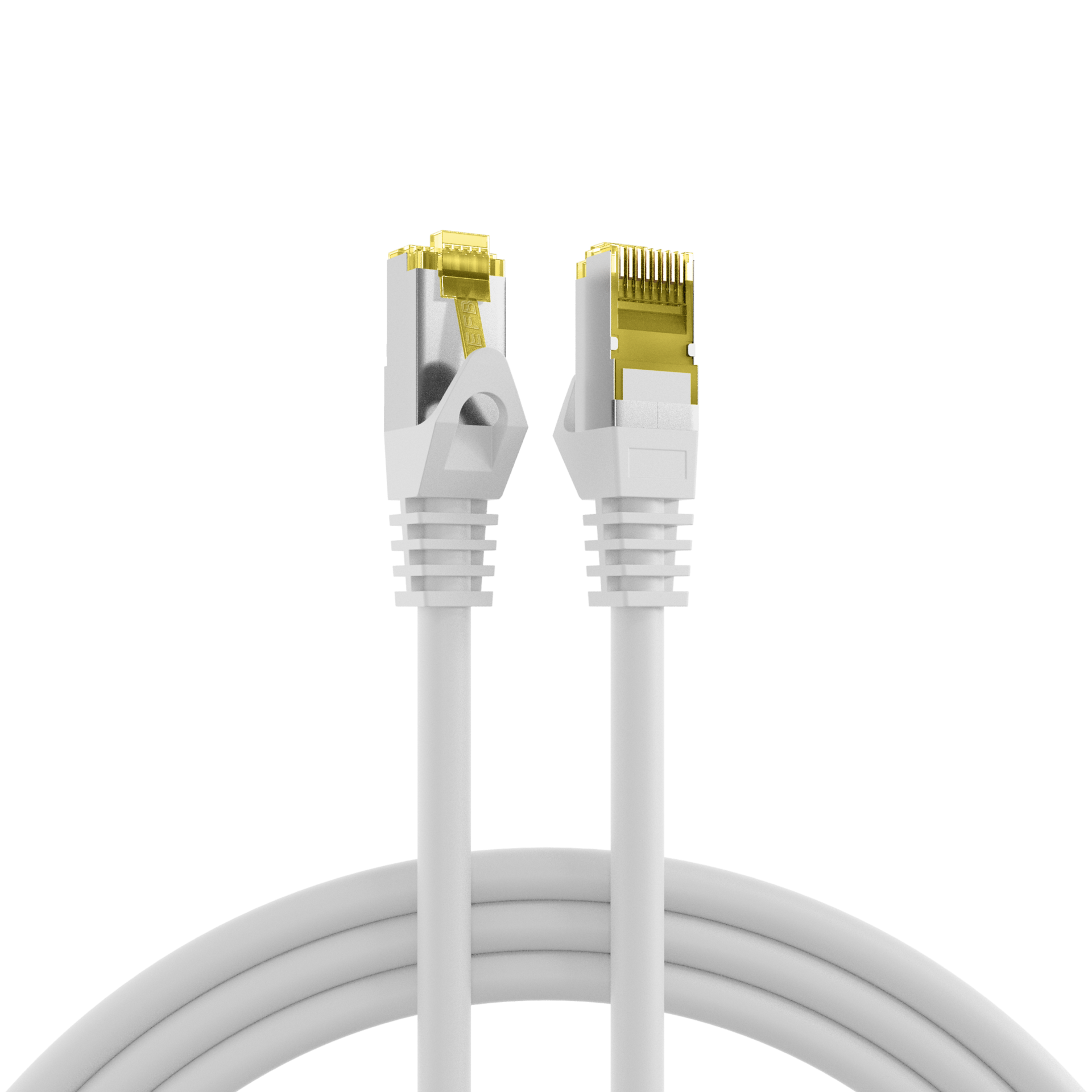

CAT7 S/FTP Patch Cord 26AWG LSZH – 10Gbps High-Performance Shielded Cable
Available Length
1M
1.5M 2M
Custom lengths are available upon request.
Color Options
Available in a wide range of colors upon request.
Payment Methods:
Delivery Options:
Fast Delivery
2–5 Business Days
2–5 Business Days
Secure Packaging
Safe & Protected Shipping
Safe & Protected Shipping
Overview
CAT7 S/FTP Patch Cord 26AWG is a high-performance shielded network cable designed for advanced data transmission environments. It features individually shielded twisted pairs (S/FTP) to minimize interference and ensure superior signal quality. Ideal for data centers, enterprise networks, and high-speed 10Gbps applications.
Technical Specifications
| Product Type | CAT7 S/FTP Patch Cord |
| Conductor | 26 AWG Stranded Copper |
| Connector Type | RJ45 |
| Cable Structure | S/FTP (Shielded) |
| Pairs | 4 Pairs Twisted |
| Bandwidth | 600 MHz |
| Data Rate | Up to 10 Gbps |
| Jacket | LSZH (Optional) |
| Length Options | 1m, 1.5m, 2m (Custom Available) |
| Color Options | Blue, White, Grey (Custom Available) |
| Standard | ISO/IEC 11801 |
Applications
Data Centers
Enterprise Networks
Server Rooms
Patch Panels
Switch Connections
High-Speed LAN
Benefits
High-speed 10Gbps transmission
Advanced S/FTP shielding
Reduced electromagnetic interference
Superior signal stability
Durable stranded copper construction
Suitable for professional environments
Features
26 AWG Conductors
600 MHz Bandwidth
S/FTP Shielding
RJ45 Connectors
FAQs
What is the maximum speed of CAT7?
Supports up to 10 Gbps depending on network configuration.
What does S/FTP mean?
It means each twisted pair is individually shielded with an overall shield for maximum protection.
Where is CAT7 used?
Used in data centers, enterprise networks, and high-performance networking systems.
