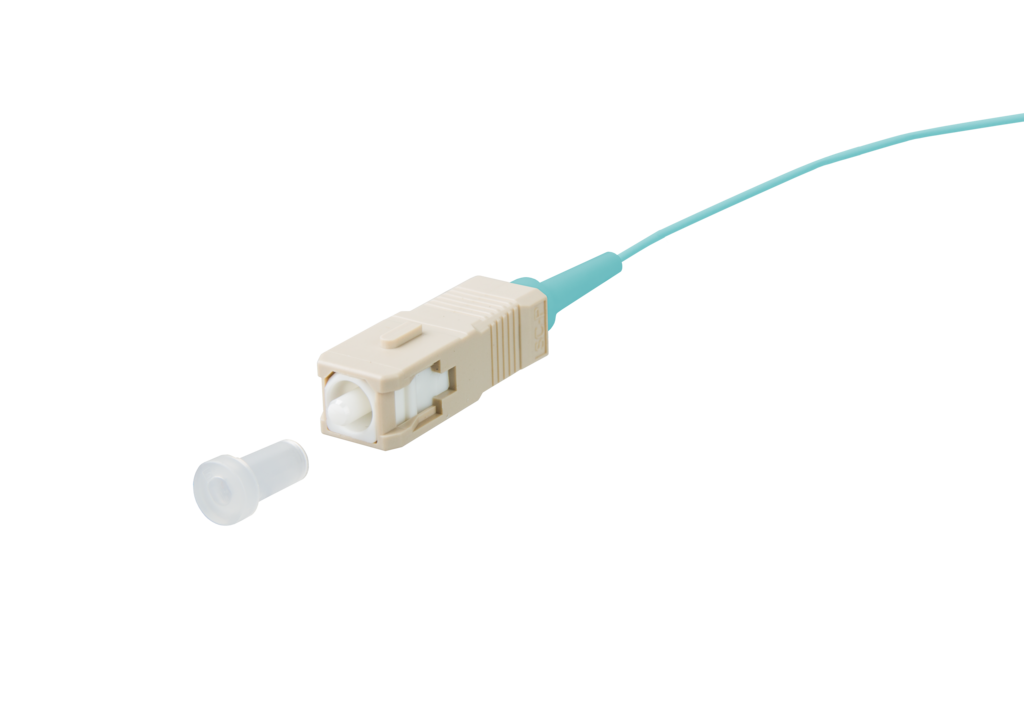

Fiber Pigtail SC UPC to Unterminated Simplex OM3 LSZH
Part Number: FLOFPTSCO301
Category: Fiber optic Connector
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fiber Pigtail SC UPC to Unterminated Simplex OM3 LSZH is a premium multimode fiber optic pigtail designed for fusion splicing and fiber termination applications. Manufactured with OM3 50/125μm fiber and a Low Smoke Zero Halogen (LSZH) jacket, it delivers low insertion loss, excellent return loss, and reliable optical performance. It is ideal for high-speed LANs, data centers, FTTH deployments, and enterprise optical networks.
- Data centers.
- Local Area Networks (LAN).
- Enterprise optical networks.
- Fiber Optic Distribution Frames (ODF).
- FTTH installations.
- Telecommunication systems.
- Fiber optic patch panels.
- Ensures stable and high-speed optical transmission.
- Ideal for fusion splicing and fiber termination.
- Reduces signal attenuation and network downtime.
- Supports high-bandwidth multimode applications.
- LSZH jacket enhances safety in indoor installations.
- Compatible with standard SC optical equipment.
| Specification | Details |
|---|---|
| Product Type | Fiber Optic Pigtail |
| Fiber Type | OM3 Multimode (50/125μm) |
| Configuration | Simplex |
| Connector Type | SC/UPC |
| Other End | Unterminated |
| Cable Jacket | LSZH |
| Cable Diameter | 0.9 mm |
| Operating Wavelength | 850 / 1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
- SC/UPC connector with precision ceramic ferrule for stable optical performance.
- OM3 multimode 50/125μm fiber optimized for high-speed data transmission.
- Simplex design with one terminated end and one unterminated end for fusion splicing.
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety in indoor installations.
- Low insertion loss and excellent return loss.
- Factory polished and 100% performance tested.
- Excellent mechanical durability and long service life.
- Compatible with patch panels, ODFs, splice closures, and optical distribution systems.
- Data centers.
- Local Area Networks (LAN).
- Enterprise optical networks.
- Fiber Optic Distribution Frames (ODF).
- FTTH installations.
- Telecommunication systems.
- Fiber optic patch panels.
FAQ
What is this fiber pigtail used for?
It is designed for fusion splicing and fiber termination in multimode optical networks.
What fiber type does this pigtail use?
It uses OM3 50/125μm multimode fiber optimized for high-speed network applications.
Why is the cable jacket made of LSZH?
The LSZH jacket minimizes smoke and toxic gas emissions during fire, making it ideal for indoor environments.
Is this pigtail factory tested?
Yes, every pigtail is factory polished and tested to ensure consistent optical performance and low insertion loss.
