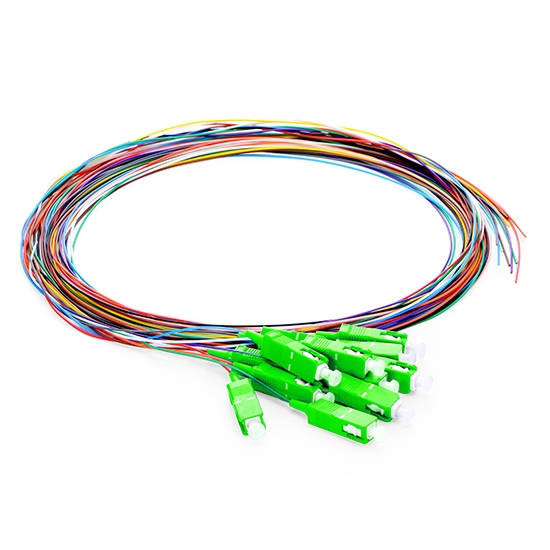

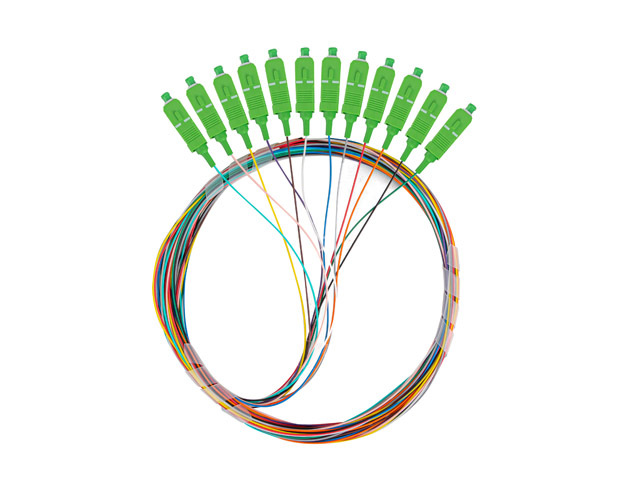

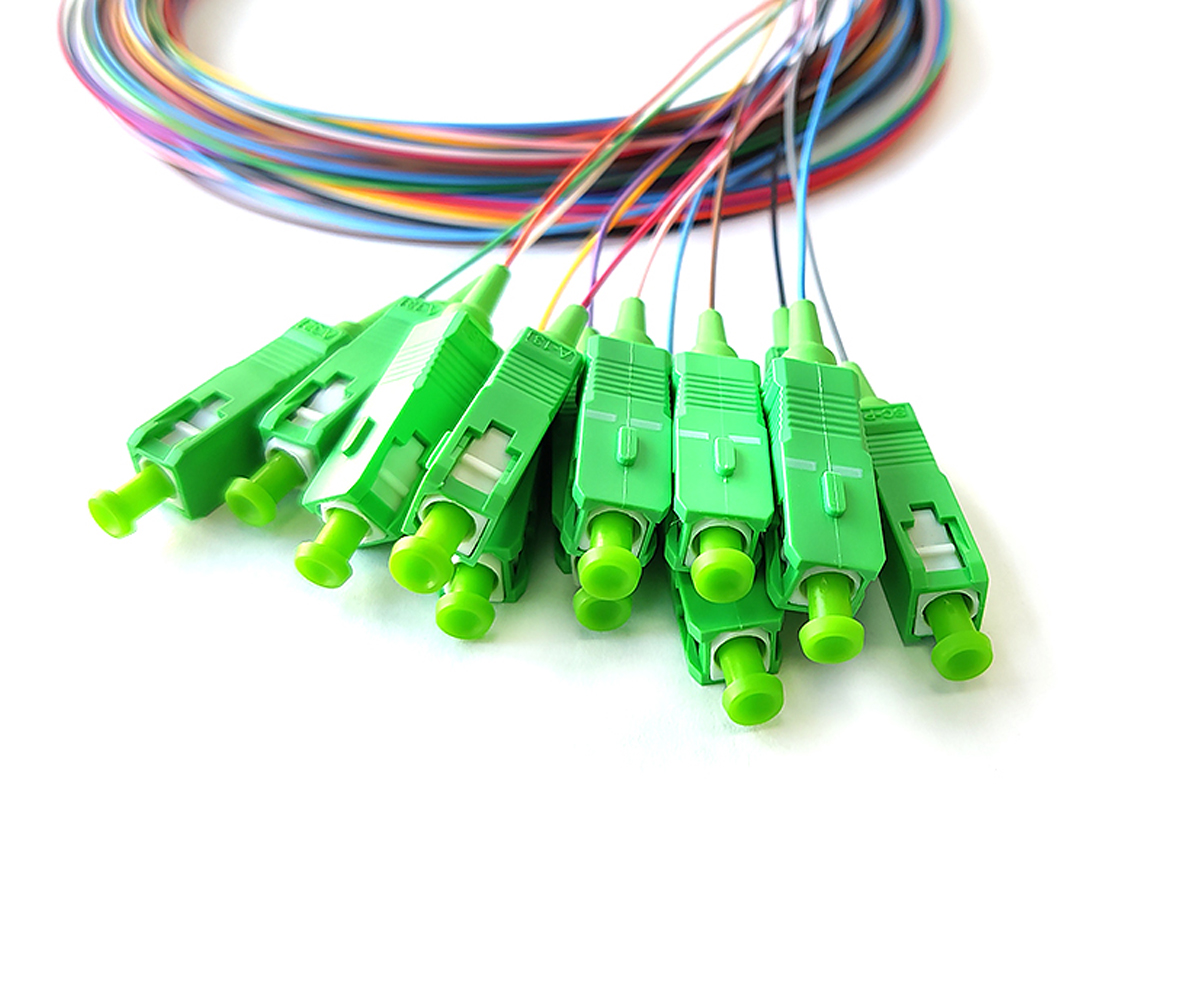

12 Fiber SC Single Mode Fiber Optic Pigtail APC – ITU-T G.657A1
Part Number: FLOFPTSCAG7102
Category: Fiber Optic Pigtail
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
SC Single Mode Fiber Pigtail Overview
The SC Single Mode Fiber Optic Pigtail APC (PN: FLOFPTSCAG7102) is designed for high-performance optical networks. It provides low insertion loss and excellent return loss, making it ideal for FTTH and telecom applications.
SC Single Mode Fiber Pigtail Features
- 12 Fiber Pack
- SC APC Connector
- Single Mode Fiber
- Low Insertion Loss
- High Return Loss
- ITU-T G.657A1 Compliant
SC Single Mode Fiber Pigtail Benefits
- Improves network performance
- Reduces signal reflection
- Reliable long-term stability
- Easy installation and splicing
- Suitable for indoor deployments
SC Single Mode Fiber Pigtail Applications
- FTTH Networks
- Telecommunication Systems
- Data Centers
- Optical Distribution Frames (ODF)
- Patch Panels
SC Single Mode Fiber Pigtail Specifications
| Specification | Details |
|---|---|
| Part Number | FLOFPTSCAG7102 |
| Product Type | Fiber Optic Pigtail |
| Fiber Type | Single Mode (SMF) |
| Connector Type | SC APC |
| Fiber Count | 12 Fibers |
| Standard | ITU-T G.657A1 |
| Jacket Material | LSZH |
| Operating Temperature | -20°C to 70°C |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
SC Single Mode Fiber Pigtail FAQs
What is the difference between APC and UPC?
APC connectors have an angled polish that reduces back reflection,
while UPC connectors are flat polished and mainly used where lower reflection is acceptable.
Is this suitable for FTTH?
Yes, it is fully suitable for FTTH installations and telecom networks.
Can it be used in data centers?
Yes, it is ideal for data center backbone and patch panel connections.
