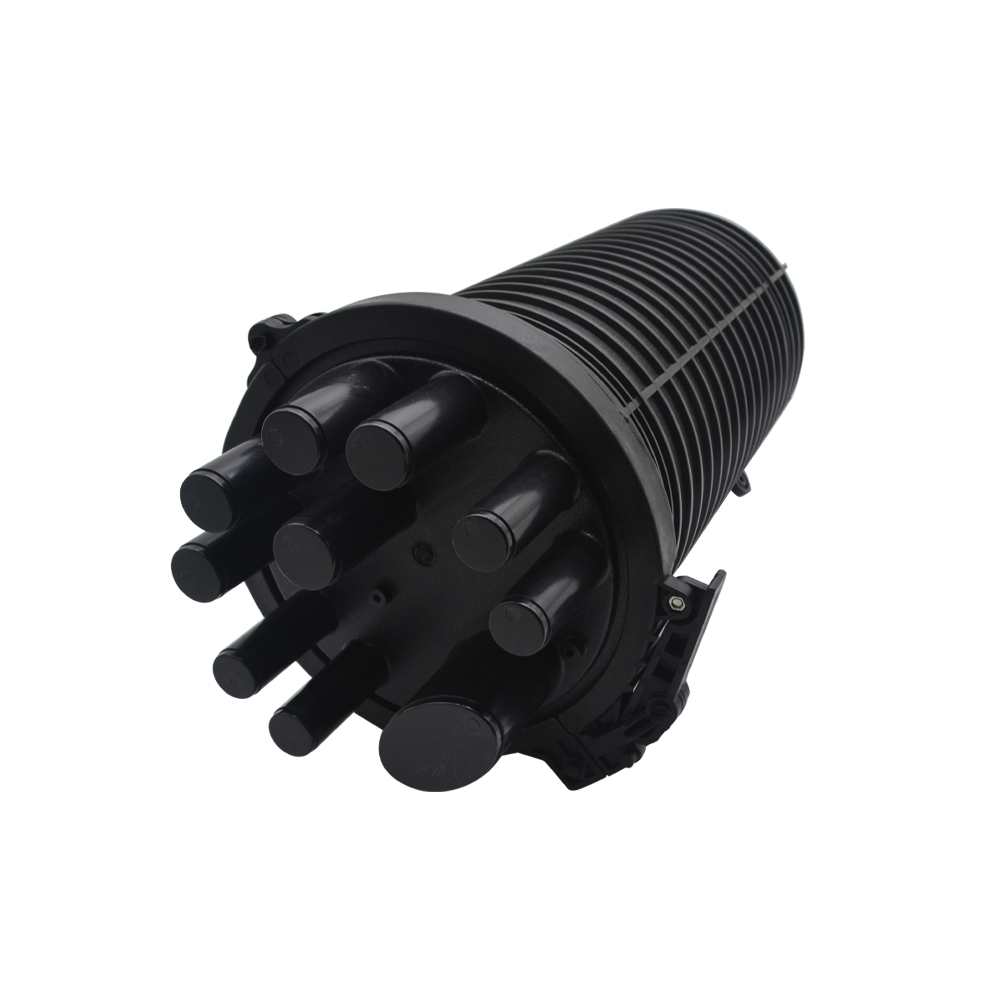

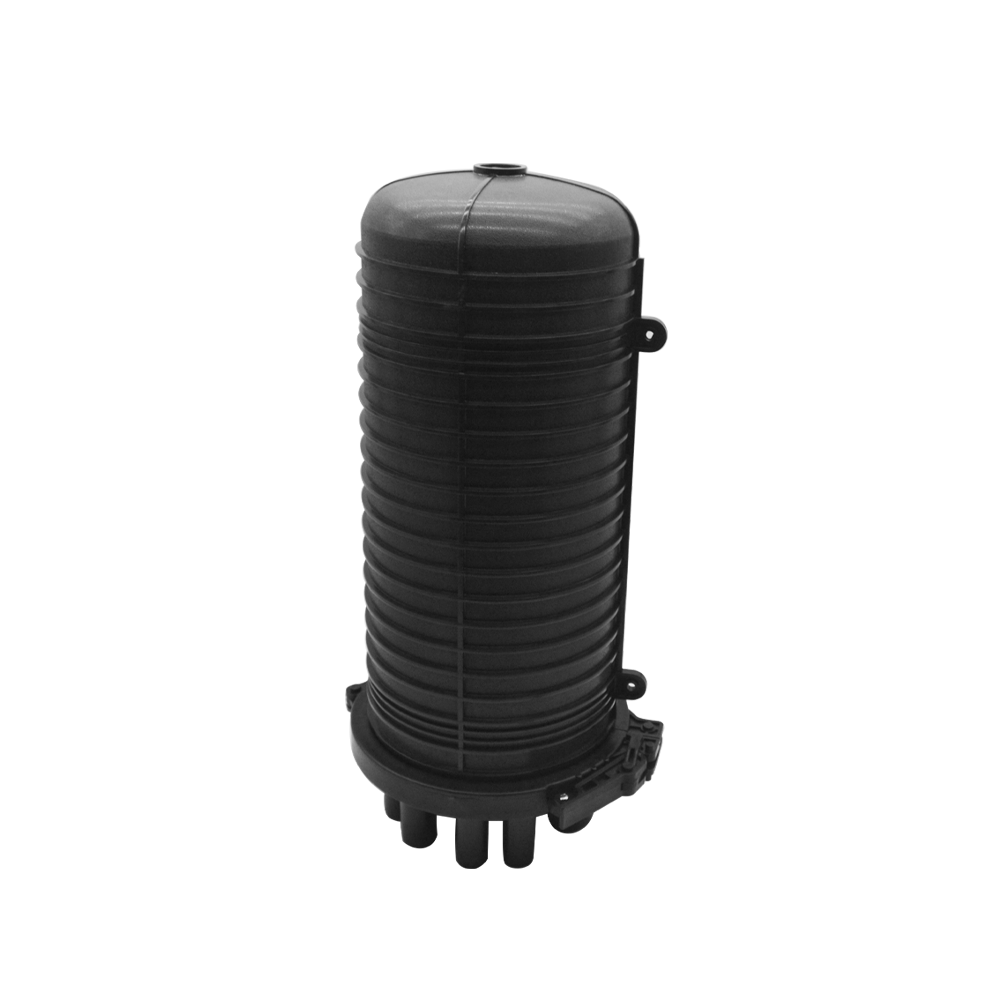

336FO 9+1 Ports Fiber Optic Joint Boxox
Part Number: FLOFDCH336C
Category: Fiber Optic Dome Closure
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The 336FO 9+1 Ports Fiber Optic Joint Box is a high-capacity dome fiber optic splice closure designed for large-scale FTTH, FTTx, and telecommunications backbone networks. With support for up to 336 fiber splices, a durable IP68-rated enclosure, and a reliable mechanical sealing system, it delivers outstanding protection against water, dust, UV radiation, and harsh environmental conditions. The closure is suitable for wall-mounted, pole-mounted, aerial, underground duct, and direct burial installations.
- Supports up to 336 fiber optic splices.
- 9 round cable ports plus 1 oval cable port.
- IP68 waterproof and dustproof protection.
- Reusable mechanical sealing system.
- High-strength UV-resistant engineering plastic housing.

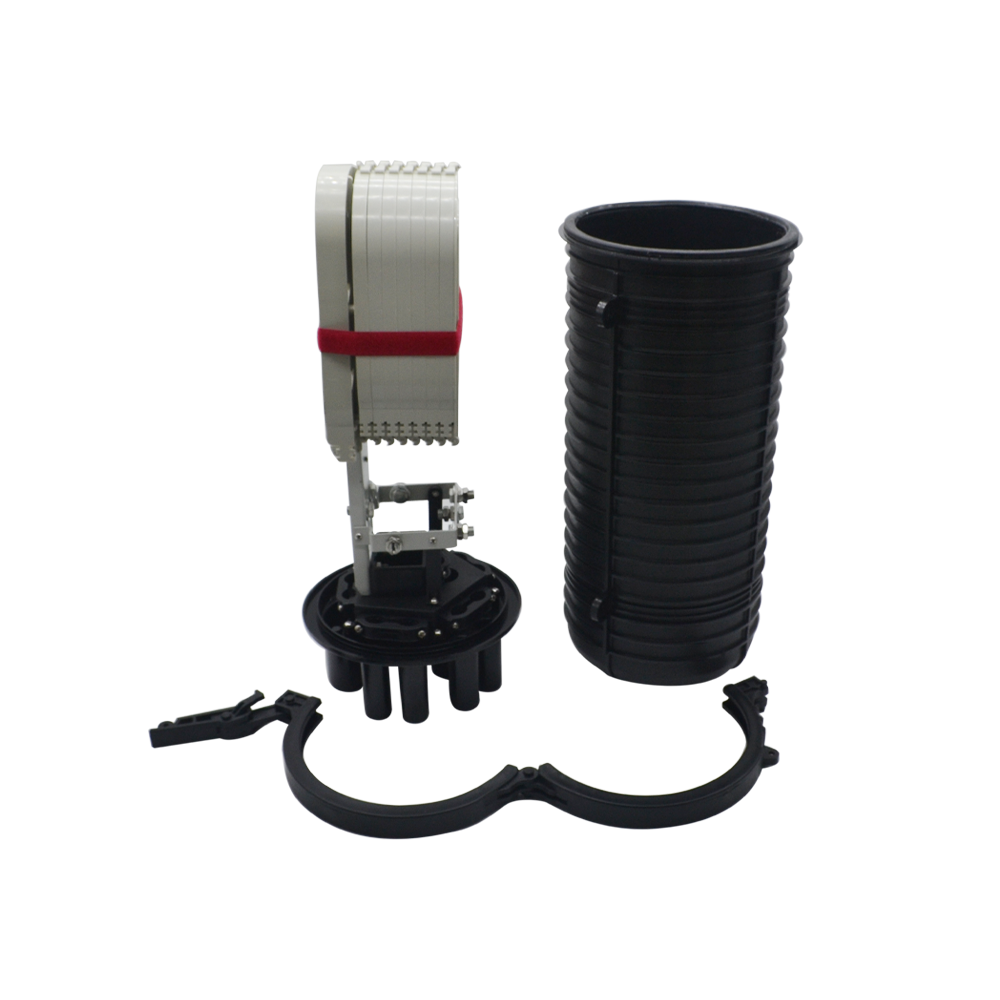

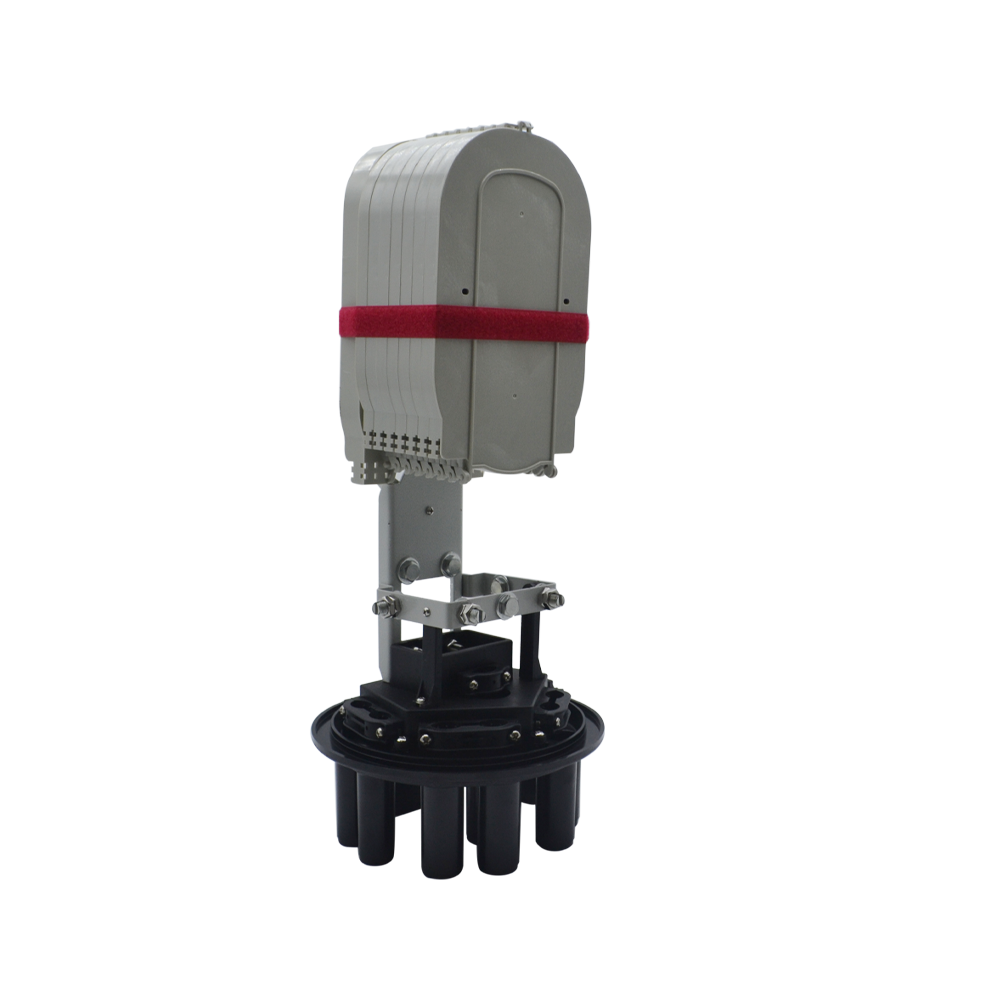

- Modular splice trays for high-density fiber management.
- Suitable for single-mode and multimode fiber cables.
- Excellent resistance to corrosion, moisture, and impact.
- Easy installation, inspection, and maintenance.
- Designed for carrier-grade outdoor fiber networks.
- Supports high-density fiber optic deployments.
- Provides long-term protection against harsh outdoor environments.
- Organizes large fiber counts efficiently.
- Reduces maintenance time with reusable sealing.
- Supports future network expansion.
- Ideal for telecom backbone and FTTH distribution networks.
- FTTH (Fiber to the Home) Networks.
- FTTx Access Networks.
- Telecommunication Backbone Networks.
- Optical Distribution Networks (ODN).
- Metropolitan Area Networks (MAN).
- Pole Mount Installations.
- Wall Mount Installations.
- Aerial, Underground Duct, and Direct Burial Applications.
| Specification | Details |
|---|---|
| Product Type | Dome Fiber Optic Joint Box |
| Maximum Fiber Capacity | 336 Fibers |
| Closure Type | Dome |
| Cable Ports | 9 Round Ports + 1 Oval Port |
| Splice Tray Capacity | 24 Fibers per Tray (Up to 14 Trays) |
| Housing Material | UV-Resistant Engineering Plastic (PP + GF) |
| Protection Rating | IP68 |
| Sealing Method | Mechanical Re-enterable Seal |
| Supported Cable Diameter | Main Cable: Ø10–25 mm Branch Cable: Ø7–20 mm |
| Installation Method | Wall Mount, Pole Mount, Aerial, Underground & Direct Burial |
| Operating Temperature | -40°C to +65°C |
FAQ
What is the maximum fiber capacity?
The closure supports up to 336 fiber optic splices, making it ideal for high-density FTTH and telecom backbone applications.
What does the 9+1 port configuration mean?
The closure features nine round cable entry/exit ports and one oval port, providing flexible cable routing for feeder and distribution cables.
Is this closure suitable for outdoor installations?
Yes. The IP68-rated enclosure and mechanical sealing system protect the fiber splices from water, dust, UV exposure, and extreme weather conditions.
Where can the closure be installed?
It can be installed on walls, poles, aerial networks, underground ducts, and direct burial fiber optic systems.
