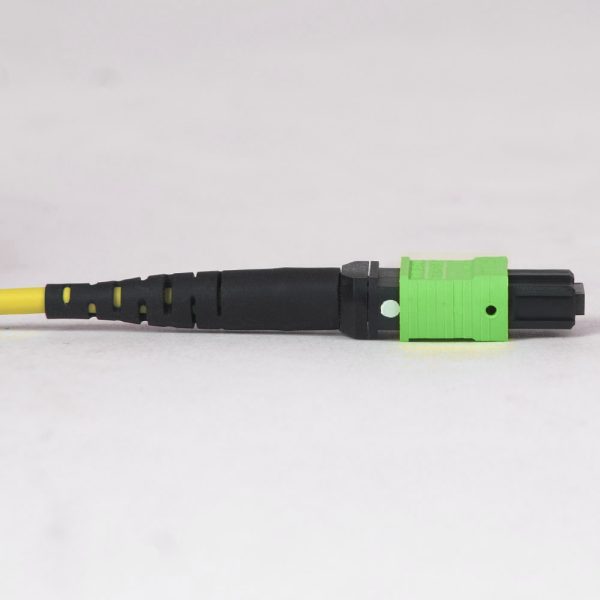

LSZH Fiber Optic Patch Cord SM (G.657A1) MPO to MPO
Part Number: FLPCG71SX-MPO-000-MPO-LS
Category: Patch Cord Single Mode
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The MPO to MPO Fiber Optic Cable is a high-density, pre-terminated fiber optic trunk cable designed for high-speed data transmission in modern data centers, telecommunications networks, and enterprise environments. Featuring MPO connectors on both ends, it provides efficient cable management, rapid deployment, and reliable optical performance for 40G, 100G, 200G, and 400G network applications.
- MPO to MPO pre-terminated fiber optic cable.
- Available in Single Mode (OS2) and Multimode (OM3/OM4/OM5).
- Supports high-density fiber connectivity.
- Low insertion loss and high return loss performance.
- Available in 8, 12, 24, 48, 72, and 144 fiber configurations.
- Suitable for 40G, 100G, 200G, and 400G Ethernet applications.
- Factory terminated and 100% tested.
- Compact design for efficient cable management.
- Reduces installation time with plug-and-play deployment.
- Supports high-bandwidth data center applications.
- Improves cable organization and space utilization.
- Provides reliable and consistent optical performance.
- Scalable solution for future network expansion.
- Minimizes downtime and maintenance requirements.
- Data centers and cloud computing facilities.
- Telecommunication backbone networks.
- 40G/100G/200G/400G Ethernet systems.
- Storage Area Networks (SAN).
- Enterprise campus networks.
- High-performance computing environments.
| Specification | Details |
|---|---|
| Product Type | MPO to MPO Fiber Optic Cable |
| Connector Type | MPO / MPO |
| Fiber Type | OS2, OM3, OM4, OM5 |
| Fiber Count | 8 / 12 / 24 / 48 / 72 / 144 Fibers |
| Polarity | Type A, Type B, Type C |
| Connector Gender | Male to Male / Female to Female |
| Insertion Loss | ≤ 0.35 dB (Low Loss Optional) |
| Return Loss | ≥ 20 dB (MM) / ≥ 60 dB (SM) |
| Jacket Material | LSZH / OFNR / OFNP |
| Operating Temperature | -20°C to +70°C |
| Application | High-Speed Data Center Networks |
FAQ
What is an MPO to MPO fiber optic cable?
An MPO to MPO cable is a high-density fiber optic trunk cable with MPO connectors on both ends, used for high-speed network connectivity.
What fiber types are available?
The cable is available in Single Mode OS2 and Multimode OM3, OM4, and OM5 fiber types.
Can this cable be used for 100G applications?
Yes, MPO cables are widely used in 40G, 100G, 200G, and 400G high-speed data center networks.
What polarity options are available?
The cable is available in Type A, Type B, and Type C polarity configurations depending on network requirements.
