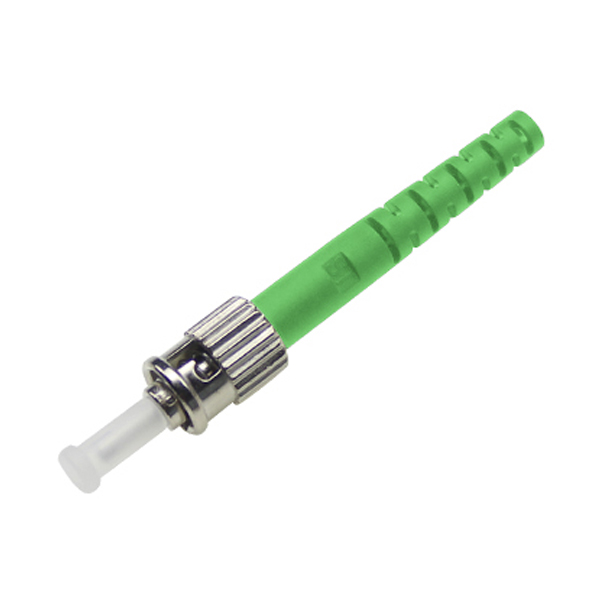

Fiber Optic Epoxy ST/APC Single Mode Simplex Connector, 3mm
Part Number: FLOFCNSTAPCSM003
Category: Fiber Optic Connectors
Payment Methods:
Need Support?
01003962411
01044989983
info@fiblit.com
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
Connector Epoxy ST APC SM 3mm Overview
The Connector Epoxy ST APC SM 3mm is a single-mode fiber optic connector designed to deliver low back reflection and stable optical performance. The ST bayonet-style coupling allows quick installation and secure connection, while APC angled polishing minimizes signal reflection, making it suitable for precision fiber optic applications.
Connector Epoxy ST APC SM 3mm Applications
- Telecommunication networks
- FTTH and access networks
- CATV systems
- Fiber optic patch panels and ODFs
- Testing and measurement equipment
Connector Epoxy ST APC SM 3mm Features
- Connector Type: ST
- Polish Type: APC (Angled Physical Contact)
- Fiber Type: Single Mode (9/125 µm)
- Cable Diameter: 3.0 mm
- Termination Method: Epoxy & Polishing
- Excellent optical and mechanical characteristics
Connector Epoxy ST APC SM 3mm Specifications
| Specification | Details |
|---|---|
| Connector Type | ST |
| Part Number | FLOFCNSTAPCSM003 |
| Polish | APC |
| Fiber Mode | Single Mode (9/125 µm) |
| Cable Diameter | 3.0 mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Operating Temperature | -40°C to +75°C |
Connector Epoxy ST APC SM 3mm Benefits
- Low insertion loss for efficient signal transmission
- High return loss with APC angled polishing
- Fast and secure bayonet-style ST coupling
- Durable epoxy termination for long-term reliability
- Stable performance in demanding network environments
Connector Epoxy ST APC SM 3mm FAQs
What is an ST APC connector?
An ST APC connector uses a bayonet-style coupling with angled physical contact
polishing to reduce back reflection and improve signal quality.
Why is APC polishing important?
APC polishing minimizes optical back reflection, which is critical
for long-distance and high-precision fiber optic networks.
Is this connector suitable for long-distance transmission?
Yes, it is designed for single-mode fiber systems used in long-distance transmission.
