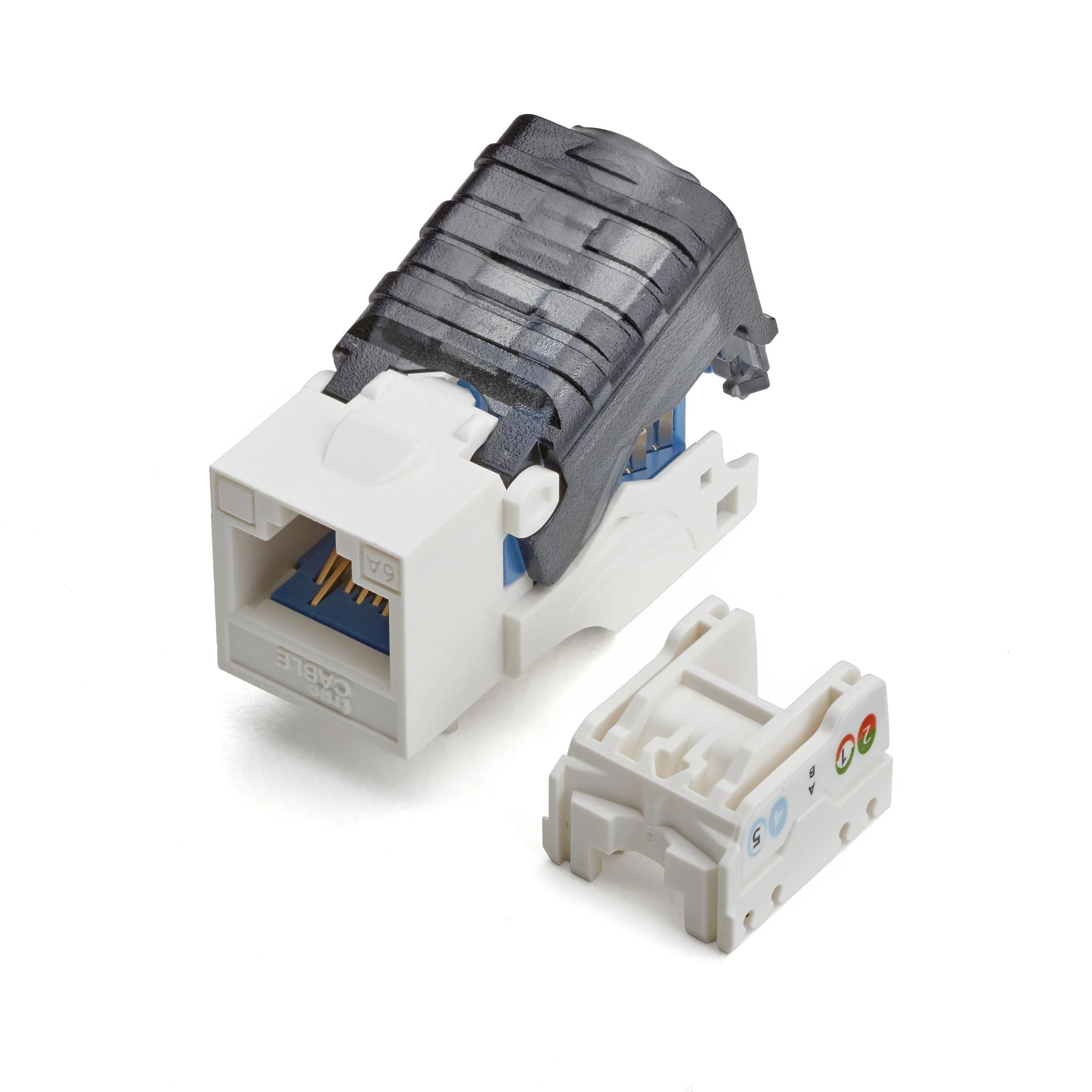

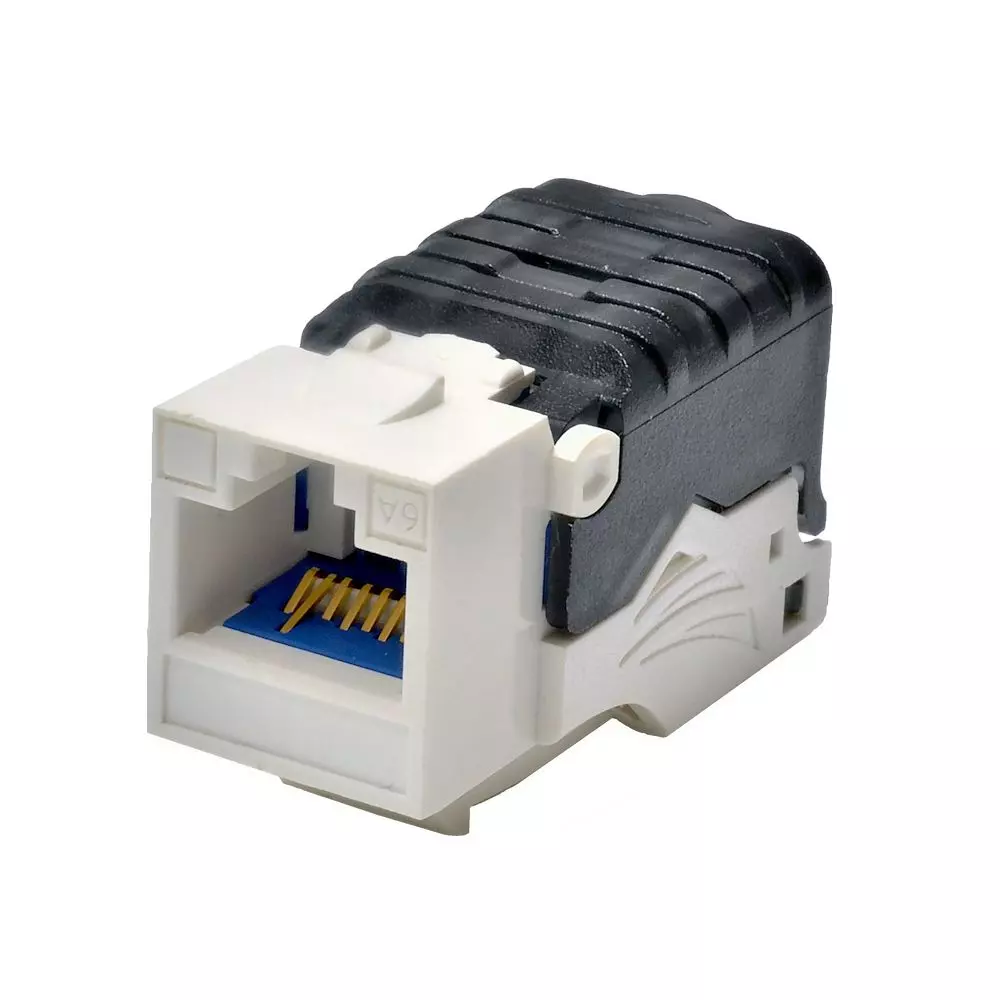

Cat6a RJ45 Unshielded Toolless Keystone Jack
Category: Keystone Jacks & Couplers
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
The Cat6a RJ45 unshielded toolless keystone jack is designed for high-speed Ethernet networks, providing reliable performance up to 10 Gigabit. Its toolless design allows fast installation without the need for punch-down tools, making it ideal for efficient network deployment.
Features
- Supports Cat6a performance up to 10Gbps
- Toolless design for quick and easy installation
- Unshielded (UTP) – ideal for low EMI environments
- Gold-plated contacts for stable conductivity
- Compatible with 23–24 AWG solid cables
- T568A & T568B wiring standards
Key Benefits
- Faster installation without special tools
- Reliable high-speed data transmission
- Cost-effective compared to shielded solutions
- Flexible and easy integration into networks
Applications
- Office and enterprise networks
- Home networking systems
- Patch panels and wall plates
- Structured cabling systems
- LAN infrastructure deployment
Technical Specification
| Specification | Details |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Category | Cat6a |
| Shielding | No (UTP) |
| Termination | Toolless |
| Bandwidth | Up to 500 MHz |
| Data Rate | Up to 10Gbps |
| Supported Cable | 23–24 AWG |
| Compatibility | Cat6a / Cat6 / Cat5e |
| Mounting | Keystone (wall plate / patch panel) |
| Standards | TIA/EIA-568, ISO/IEC 11801 |
| PoE Support | Up to 100W (PoE++) |
| Compliance | RoHS |
FAQs
Q: What is the difference between shielded and unshielded?
Unshielded (UTP) jacks are used in environments with low interference, while shielded versions are designed for high EMI areas.
Q: Does it support 10Gbps?
Yes, Cat6a keystone jacks support up to 10Gbps and 500 MHz bandwidth. :contentReference[oaicite:0]{index=0}
Q: What cables can be used?
Typically supports 23–24 AWG Ethernet cables. :contentReference[oaicite:1]{index=1}
Q: What does toolless mean?
It allows cable termination without using a punch-down tool, making installation faster and easier. :contentReference[oaicite:2]{index=2}
