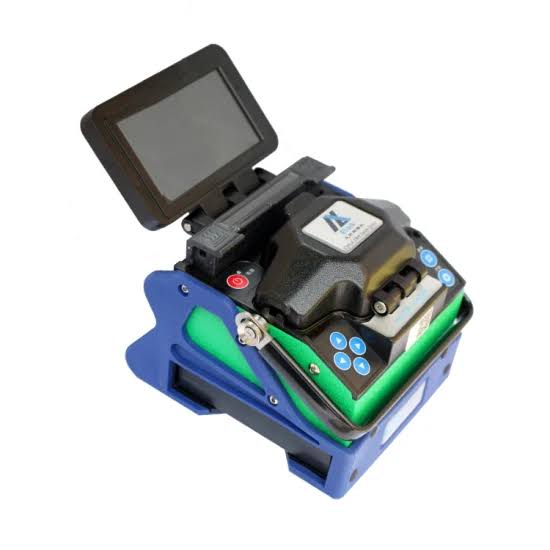

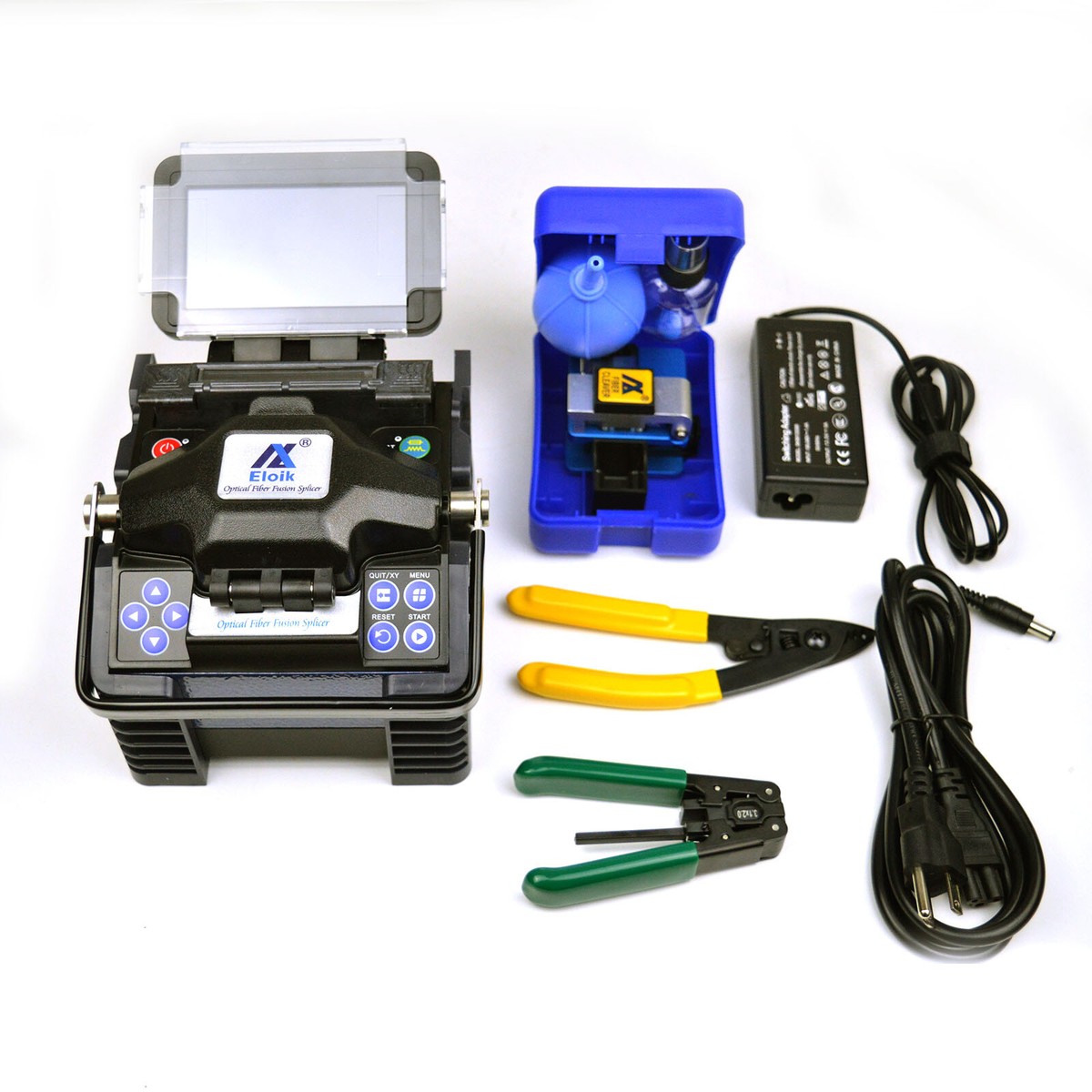

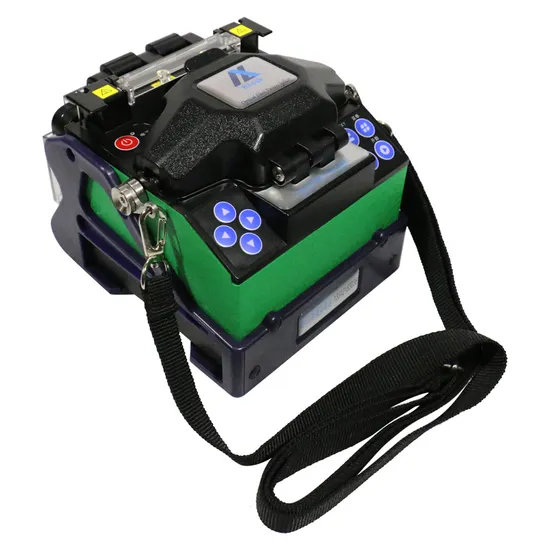

ELOIK Splicing Machine ALK-88A
Part Number: FLOFALK-88A
Category: Fiber optic Fusion splicing
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The ELOIK ALK-88A Fiber Optic Fusion Splicing Machine is a professional core-alignment fusion splicer engineered for FTTH, FTTx, telecommunications, ISP backbone networks, and data center installations. Featuring advanced PAS (Profile Alignment System) technology, fast splicing, rapid heating, and a rugged portable design, the ALK-88A delivers accurate fiber alignment, low splice loss, and dependable field performance for professional fiber optic technicians.
- Advanced PAS core alignment technology.
- Supports SM, MM, DS, NZDS, EDF, and BIF optical fibers.
- Fast fusion splicing in as little as 7 seconds.
- Rapid sleeve heating in approximately 9 seconds.
- 4.3-inch high-resolution color LCD display.
- 6800mAh removable lithium battery.
- Stores up to 10,000 splice records.
- USB 2.0 interface for software updates and data transfer.
- Shockproof, dustproof, and water-resistant housing.
- Provides accurate core alignment with minimal splice loss.
- Reduces installation time through fast splice and heating cycles.
- Suitable for both indoor and outdoor fiber optic projects.
- Improves network reliability and optical performance.
- Portable and rugged for field technicians.
- Supports a wide range of telecom and enterprise fiber applications.
- FTTH Deployments.
- FTTx Networks.
- Telecommunication Infrastructure.
- ISP Backbone Networks.
- Fiber Optic Maintenance.
- Data Centers.
- Enterprise Optical Networks.
- CATV Fiber Systems.
| Specification | Details |
|---|---|
| Alignment Method | PAS Core Alignment |
| Applicable Fiber | SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655), EDF, BIF/UBIF |
| Fiber Core | Single Fiber |
| Cladding Diameter | 80–150 μm |
| Coating Diameter | 100–1000 μm |
| Typical Splice Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS) |
| Return Loss | >60 dB |
| Splicing Time | 7 sec (Fast Mode), 9 sec (Typical) |
| Heating Time | 9 sec (Fast Heating) |
| Display | 4.3-inch Color LCD |
| Battery | 6800mAh Lithium Battery |
| Battery Capacity | Up to 280 Splice & Heat Cycles |
| Storage Capacity | 10,000 Splice Records |
| Data Interface | USB 2.0 |
| Operating Temperature | -20°C to +55°C |
| Protection | Shockproof, Dustproof, Water-Resistant |
FAQ
What fiber types are supported by the ALK-88A?
The ALK-88A supports Single Mode (SM), Multi Mode (MM), DS, NZDS, EDF, and bend-insensitive optical fibers.
How fast is the splicing process?
The fusion splice takes approximately 7 seconds in Fast Mode, while the protection sleeve heating requires about 9 seconds.
How many splice cycles does the battery support?
The removable 6800mAh lithium battery supports up to approximately 280 splice and heat cycles on a full charge.
Is the ALK-88A suitable for FTTH installation?
Yes. It is designed for FTTH, FTTx, telecom, ISP backbone, enterprise networks, and fiber optic maintenance where accurate and reliable field splicing is required.
