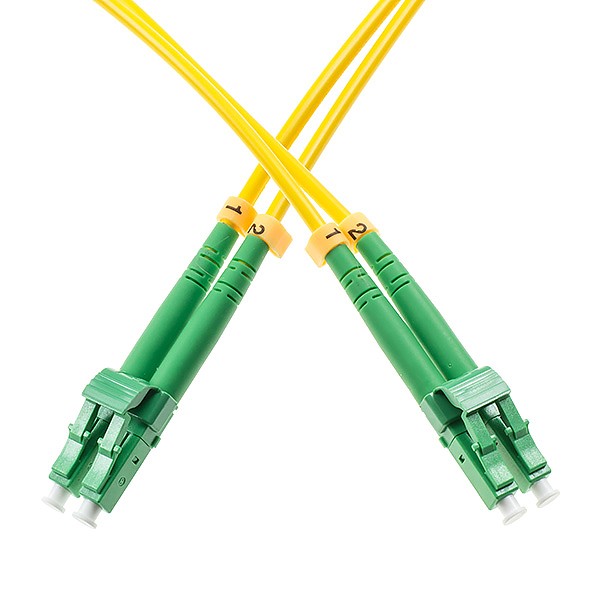

Patch Cord LC/APC-LC/APC DX
Patch Cord LC/APC-LC/APC DX

Patch Cord LC/APC-LC/APC DX

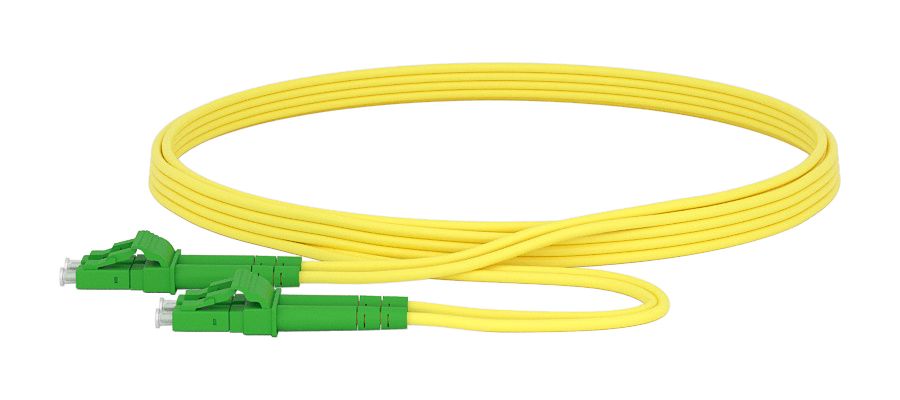

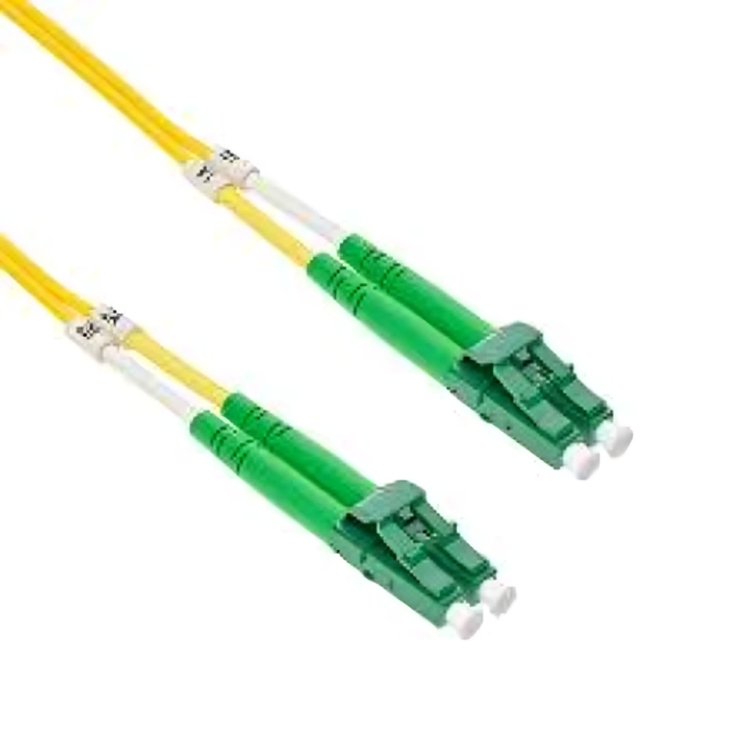

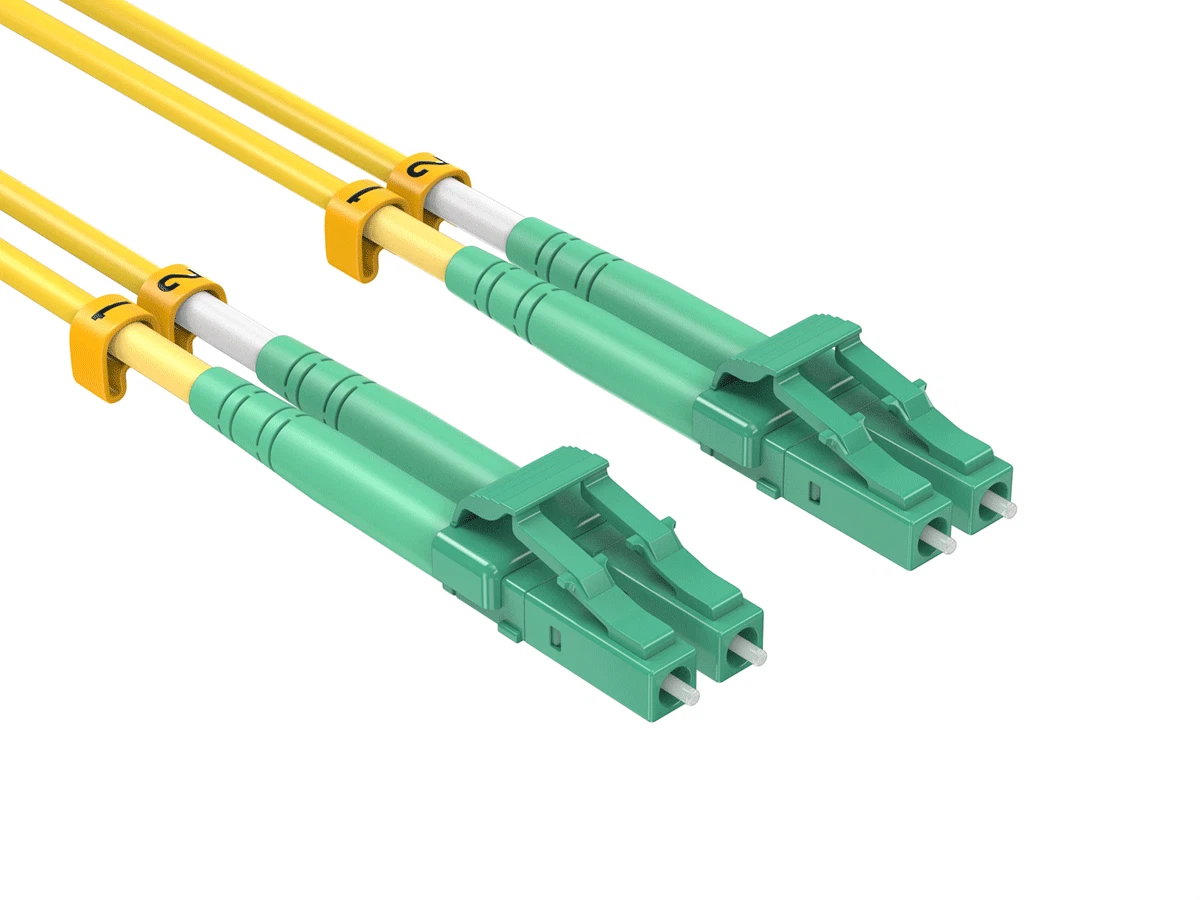

LSZH Fiber Optic Patch Cord SM (G.657A1) 9/125 1 Meter (LC-Connector/LC-Connector) Duplex (3.0 mm)

Download Datasheet Contact Us

PN: FLPCG71DX-LCA-003-LCA-LS

Category: Patch Cord DX

Technical Specifications

Part NumberFLPCG71DX-LCA-003-LCA-LS
Connector ALC Male
Connector BLC Male
Fiber TypeOS2 9/125µm Single-Mode Fiber (SMF)
Fiber CountDuplex
Polish TypeAPC to APC
Jacket Diameter3.0 mm
Jacket TypeLSZH
Wavelength1310nm / 1550nm
Attenuation at 1310 nm0.3 dB/km
Attenuation at 1550 nm0.25 dB/km
Insertion Loss SC0.3 dB
Storage Temperature-20°C ~ +60°C
Operating Temperature-20°C ~ +60°C
Minimum Bend Radius30 mm
Length1m, 2m, 3m, 5m, 7m, 10m

Features & Compliance

  • High-precision ceramic ferrules, robust jackets.
  • Meets optical performance standards, suitable for short-to-medium distances.
  • Compliant with TIA/EIA, ISO/IEC, CE, RoHS standards.

Applications

  • LAN, WAN and Metro Networks
  • FTTH project & FTTX Deployments
  • CATV System
  • GPON, EPON
  • Fiber Optic Test Equipment
  • Data-base Transmit Broadband Net
