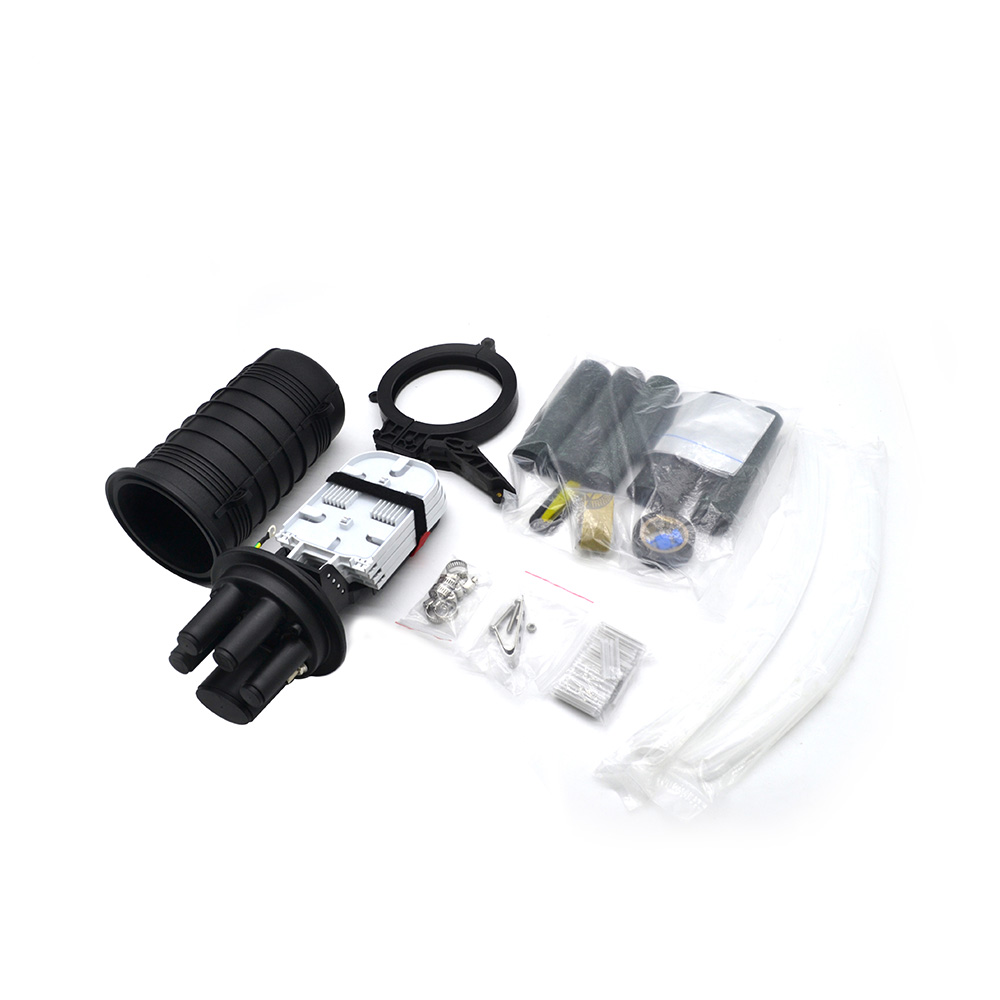

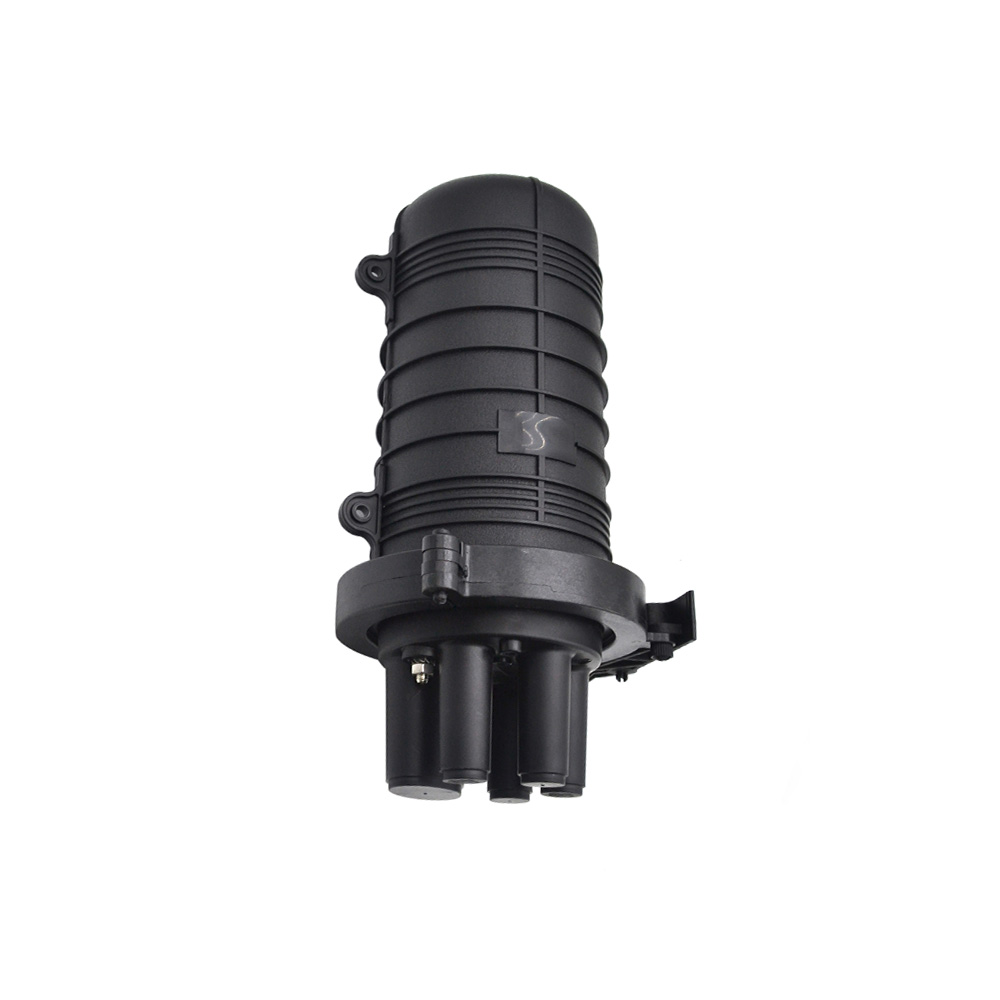

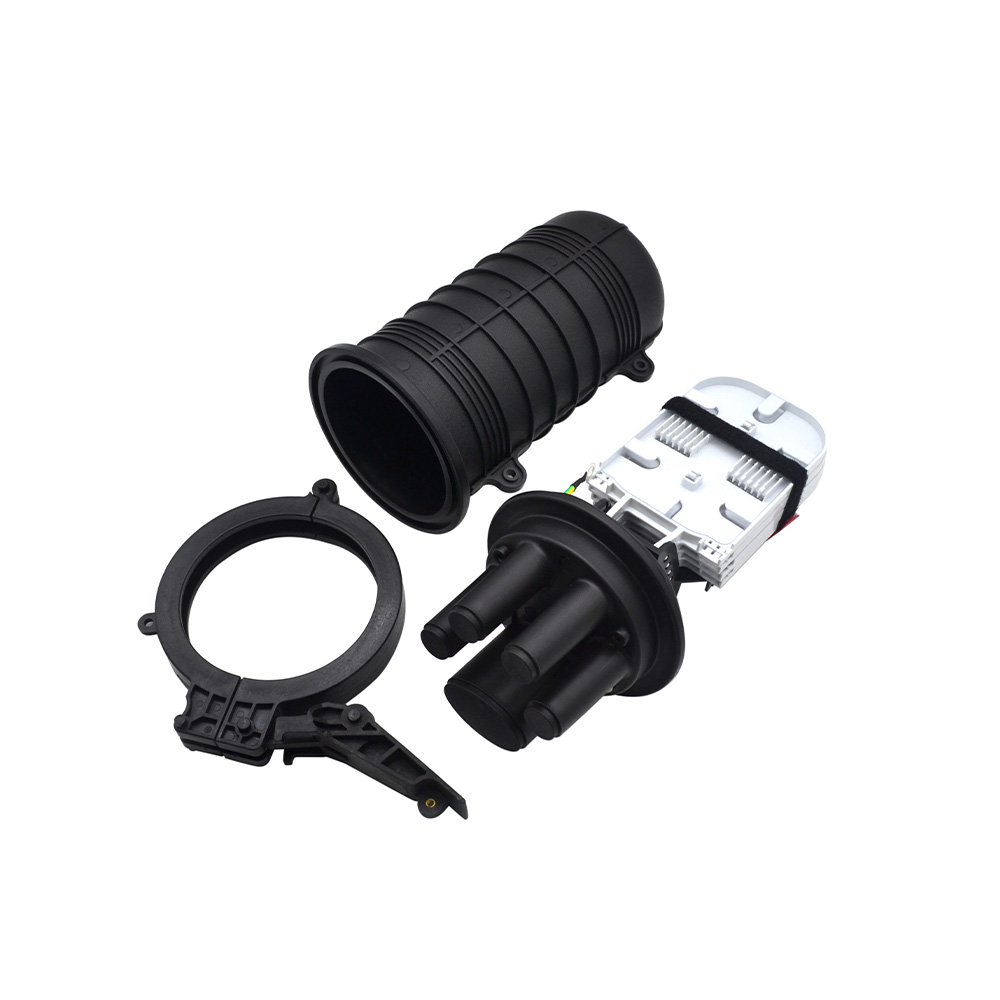

24-96 Core FTTH Network Dome Type Wall Mount Fiber Optic Splice Closure
Part Number: FLOFDC24-96C
Category: Fiber Optic Dome Closure
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The 24-96 Core FTTH Network Dome Type Wall Mount Fiber Optic Splice Closure is designed to protect and organize fiber optic splices in outdoor FTTH and FTTx networks. Manufactured from high-strength engineering plastic with an IP68-rated enclosure and reliable mechanical sealing system, it safeguards fiber connections against water, dust, UV exposure, and harsh environmental conditions. Its versatile design supports wall mounting, pole mounting, aerial, and underground installations.
- Supports fiber capacities from 24 to 96 cores.
- Dome-type enclosure for maximum environmental protection.
- IP68 waterproof and dustproof protection.
- Mechanical re-enterable sealing system.
- Wall mount and pole mount installation.
- Suitable for aerial and underground applications.
- High-strength UV-resistant engineering plastic housing.
- Modular splice trays for organized fiber management.
- Compatible with single-mode and multimode fibers.
- Easy installation, inspection, and maintenance.
- Provides long-term protection for fiber optic splices.
- Prevents water, dust, and UV damage.
- Supports flexible fiber capacities from 24 to 96 cores.
- Simplifies cable routing and splice organization.
- Allows easy network maintenance and future expansion.
- Ideal for outdoor FTTH and telecom deployments.
- FTTH (Fiber to the Home) Networks.
- FTTx Access Networks.
- Telecommunication Networks.
- Optical Distribution Networks (ODN).
- Backbone Fiber Networks.
- Wall Mount Installations.
- Pole Mount Installations.
- Aerial and Underground Fiber Networks.
| Specification | Details |
|---|---|
| Product Type | Dome Fiber Optic Splice Closure |
| Fiber Capacity | 24–96 Fibers |
| Closure Type | Dome Type |
| Splice Tray Capacity | 12 or 24 Fibers per Tray (Model Dependent) |
| Cable Ports | 1 Oval Port + 4 Round Ports |
| Supported Cable Diameter | Main Cable: Ø10–22 mm Branch Cable: Ø7–18 mm |
| Housing Material | UV-Resistant PP + Glass Fiber (PP+GF) |
| Protection Rating | IP68 |
| Sealing Method | Mechanical Re-enterable Seal |
| Installation Method | Wall Mount, Pole Mount, Aerial & Underground |
| Operating Temperature | -40°C to +65°C |
FAQ
What fiber capacities are available?
This dome splice closure is available in capacities ranging from 24 to 96 fiber cores, making it suitable for various FTTH and FTTx network requirements.
Is the closure suitable for outdoor installations?
Yes. The IP68-rated enclosure and mechanical sealing system provide reliable protection against water, dust, and harsh weather conditions.
What installation methods are supported?
The closure supports wall mounting, pole mounting, aerial installation, and underground duct applications.
Which fiber types are compatible?
The closure is compatible with both single-mode (SM) and multimode (MM) fiber optic cables and standard fusion splice protectors.
