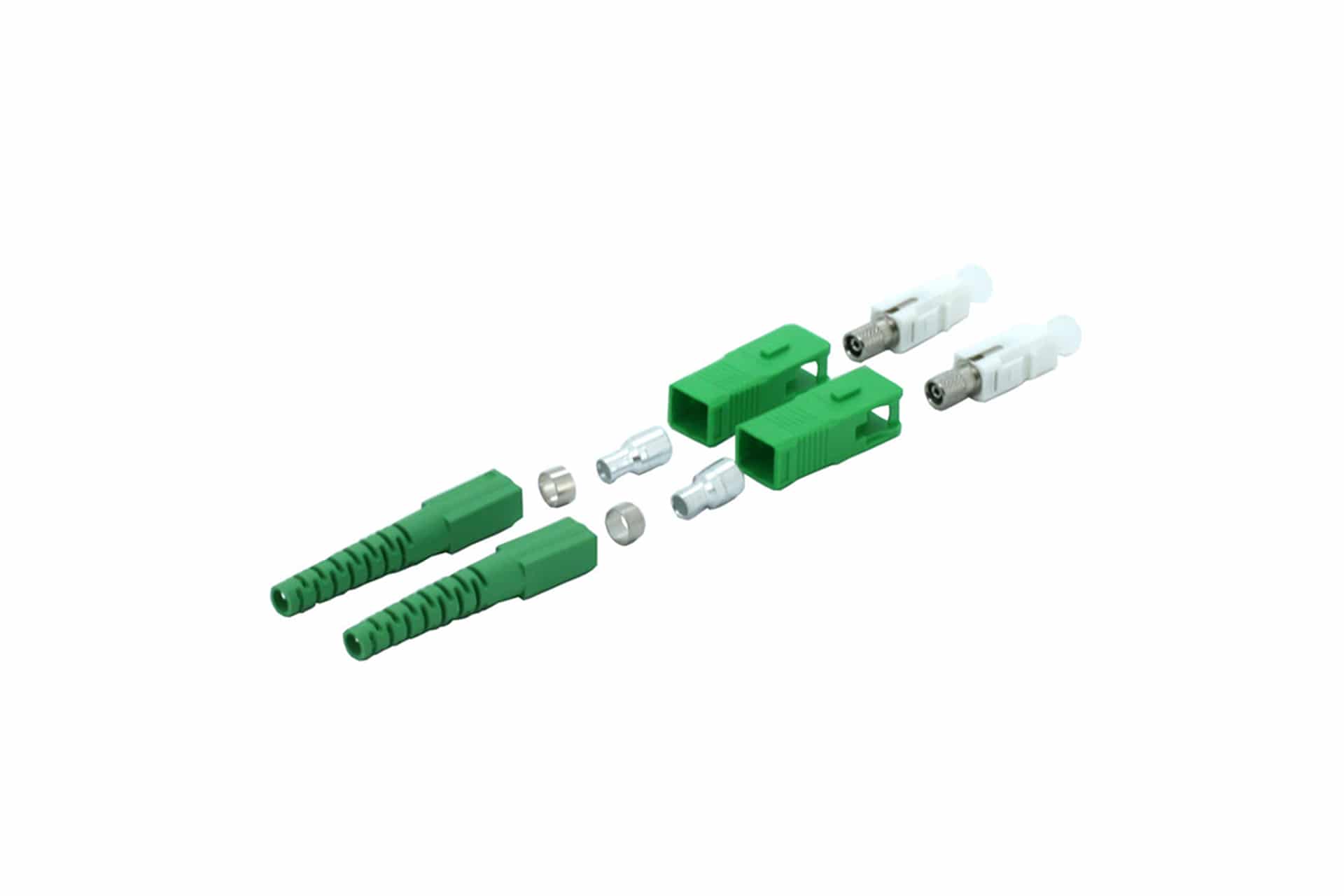

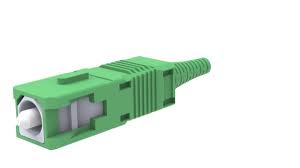

Fiber Optic SC/APC Single Mode Duplex Connector, 3mm
Part Number: FLOFCNSCAPCDX003
Category: Fiber Optic Connectors
Payment Methods:
Need Support?
01003962411
01044989983
info@fiblit.com
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
Connector SC APC SM 3mm Overview
The SC/APC SM Duplex Connector is designed for high-performance optical networks, supporting single-mode fibers with epoxy polish termination. Its duplex design ensures efficient pair connections, low insertion loss, and high return loss, ideal for FTTH, data center, and telecom applications.
Connector SC APC SM 3mm Applications
- Fiber-to-the-Home (FTTH) networks
- Telecom backbone networks
- Data center and LAN/WAN networks
- Indoor and outdoor fiber installations
- Optical testing and maintenance
Connector SC APC SM 3mmm Features
- SC / APC duplex interface with ceramic ferrules
- Single-mode fiber support (SMF)
- 3.0 mm cable diameter
- Epoxy & polish termination
- Low insertion loss ≤ 0.3 dB
- High return loss ≥ 50 dB
- Durable mechanical design for repeated mating
- IEC & ITU-T compliant
Connector SC APC SM 3mm Specifications
| Specification | Details |
|---|---|
| Connector Type | SC / APC Duplex |
| Part Number | FLOFCNSCAPCDX003 |
| Fiber Type | Single Mode (SMF) |
| Termination Method | Epoxy & Polish |
| Cable Diameter | 3.0 mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Wavelength | 1310 / 1550 nm |
| Operating Temperature | -40°C to +75°C |
| Mating Durability | ≥ 1000 mating cycles |
| Compliance | IEC, ITU-T |
Connector SC APC SM 3mm Benefits
- Reliable, low-loss connections for single-mode duplex networks
- Epoxy-based design ensures mechanical stability and durability
- Quick installation reduces setup time and labor costs
- Compact duplex design fits standard patch panels and enclosures
- Supports high-speed transmission in FTTH, LAN, and telecom networks
Connector SC APC SM 3mmFAQs
What fiber type is compatible?
Single-mode fiber (SMF) with 125 µm cladding.
Can it be used outdoors?
Yes, the duplex design is durable for indoor and outdoor use.
Expected insertion loss?
Typically ≤ 0.3 dB per channel.
