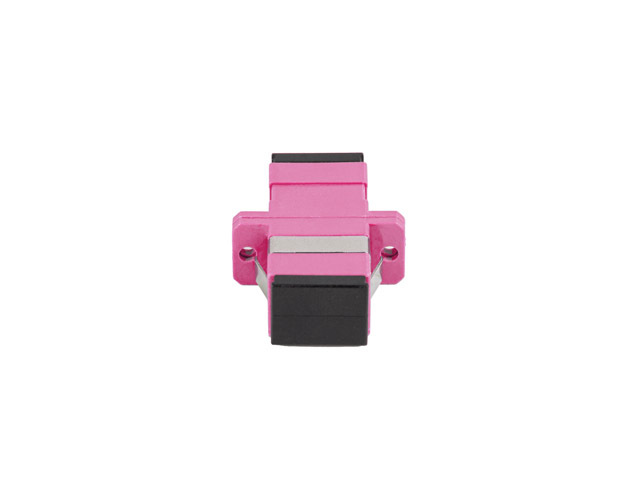

SC Adapter MM-OM4-SX-UPC 2.5mm MMF
Part Number: FLOFASCO4SX
Category: Fiber Optic Adapter
Payment Methods:
Need Support?
01003962411
01044989983
info@fiblit.com
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
SC Adapter MM-OM4-SX-UPC 2.5mm MMF Overview
The SC Adapter MM-OM4-SX-UPC 2.5mm is a precision fiber optic adapter designed for OM4 multimode fiber (50/125 µm) systems. It provides stable alignment and low insertion loss (≤ 0.2 dB typical) while connecting SC/UPC multimode connectors in LAN, SAN, FTTH, and campus fiber networks. OM4 is a laser-optimized multimode grade for high-speed data traffic over multimode links.
SC Adapter MM-OM4-SX-UPC 2.5mm MMF Applications
- Local Area Networks (LAN)
- Storage Area Networks (SAN)
- FTTH and enterprise fiber deployments
- Campus and metropolitan fiber networks
SC Adapter MM-OM4-SX-UPC 2.5mm MMF Features
- Designed for OM4 multimode fiber (50/125 µm)
- UPC polish for low insertion and return loss
- Simplex (SX) configuration for single-port connection
- Ceramic alignment sleeve (2.5 mm) for precision coupling
- Durable thermoplastic housing
- Panel-mount or free-hanging installation options :contentReference[oaicite:1]{index=1}
SC Adapter MM-OM4-SX-UPC 2.5mm MMF Specifications
| Specification | Details |
|---|---|
| Part Number | FLOFASCO4SX |
| Connector Type | SC/UPC |
| Fiber Mode | Multimode (OM4) |
| Ferrule Diameter | 2.5 mm |
| Polish Type | UPC |
| Insertion Loss | ≤ 0.2 dB (typical) |
| Return Loss | High (multimode typical performance) |
| Alignment Sleeve | Ceramic |
| Operating Temp | −40 °C to +85 °C |
| Housing | Composite plastic |
| Standards | IEC/TIA multimode adapter standards :contentReference[oaicite:2]{index=2} |
SC Adapter MM-OM4-SX-UPC 2.5mm MMF Benefits
- Maintains high signal integrity in multimode networks
- Suitable for high-bandwidth applications
- Easy integration into patch panels and enclosures
- Enhanced reliability with robust construction
SC Adapter MM-OM4-SX-UPC 2.5mm MMF FAQs
What is OM4 multimode fiber?
OM4 is a laser-optimized 50/125 µm multimode fiber grade designed for high-speed multimode networks, often supporting 10 Gbps and above with low attenuation. :contentReference[oaicite:3]{index=3}
What does UPC mean in this adapter?
UPC (Ultra Physical Contact) polish improves connection quality by minimizing back reflection and insertion loss in multimode fiber connections. :contentReference[oaicite:4]{index=4}
Can this adapter be used on patch panels?
Yes. It can be used for patch cable-to-patch cable or patch cable-to-equipment connections in panels, frames, or free-hanging installations. :contentReference[oaicite:5]{index=5}
