SC Multi Mode Fiber Optic Pigtail UPC OM4 ITU-T G.651 12 Fiber
Part Number: FLOFPTSCO402
Category: Fiber Optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info

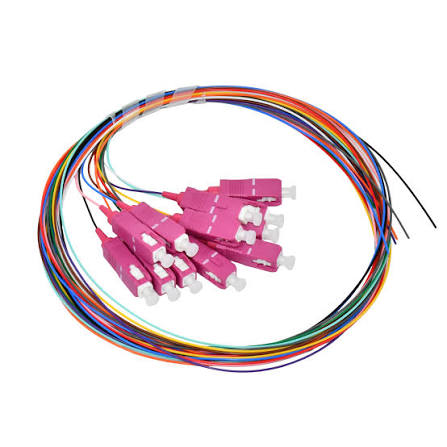

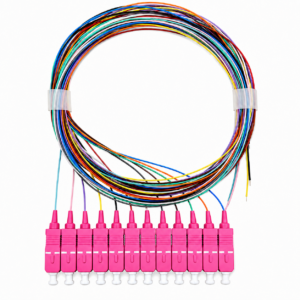

The SC Multi Mode Fiber Optic Pigtail UPC OM4 – ITU-T G.651, 12 Fiber is a premium 12-fiber ribbon pigtail designed for high-density fiber optic splicing and termination. Manufactured with OM4 50/125μm multimode fiber and precision SC/UPC connectors, it delivers low insertion loss, excellent optical performance, and high bandwidth for data centers, LANs, enterprise networks, and high-speed optical communication systems.
- 12-fiber ribbon pigtail with SC/UPC connectors.
- OM4 50/125μm multimode fiber compliant with ITU-T G.651.
- Precision ceramic ferrules for excellent optical alignment.
- Low insertion loss and high return loss.
- Factory polished and 100% performance tested.
- Color-coded fibers for easy identification and splicing.
- LSZH jacket suitable for indoor installations.
- Compatible with ODFs, patch panels, splice closures, and distribution boxes.
- Supports high-speed 10G, 40G, and 100G multimode networks.
- Provides low-loss optical transmission.
- Simplifies mass fusion splicing with 12-fiber ribbon design.
- Improves installation efficiency and cable management.
- Ensures reliable long-term network performance.
- Ideal for high-density fiber optic deployments.
- Data Centers.
- Enterprise Networks.
- Local Area Networks (LAN).
- Telecommunication Networks.
- Fiber Optic Distribution Frames (ODF).
- Fiber Patch Panels.
- Campus Backbone Cabling.
- High-Speed Optical Communication Systems.
| Specification | Details |
|---|---|
| Brand | Fiber Light |
| Product Type | Fiber Optic Pigtail |
| Connector Type | SC/UPC |
| Fiber Count | 12 Fiber |
| Fiber Type | OM4 Multimode (50/125μm) |
| Standard | ITU-T G.651 |
| Configuration | Ribbon Pigtail |
| Connector Ferrule | Ceramic |
| Polish Type | UPC |
| Insertion Loss | ≤0.30 dB |
| Return Loss | ≥35 dB |
| Cable Jacket | LSZH |
| Operating Wavelength | 850 / 1300 nm |
| Operating Temperature | -20°C to +70°C |
FAQ
What is this 12-fiber pigtail used for?
It is designed for high-density fusion splicing in optical distribution frames, patch panels, and data center cabling systems.
Is this pigtail suitable for 40G and 100G networks?
Yes. OM4 multimode fiber supports high-speed Ethernet applications including 10G, 40G, and 100G over recommended transmission distances.
Why choose SC/UPC connectors?
SC/UPC connectors provide low insertion loss, stable optical performance, and easy push-pull installation.
Are the pigtails factory tested?
Yes. Every Fiber Light pigtail is factory polished and individually tested to ensure reliable optical performance before shipment.
