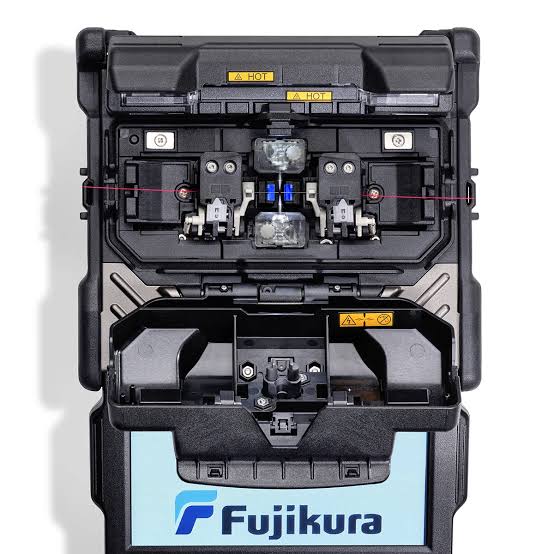

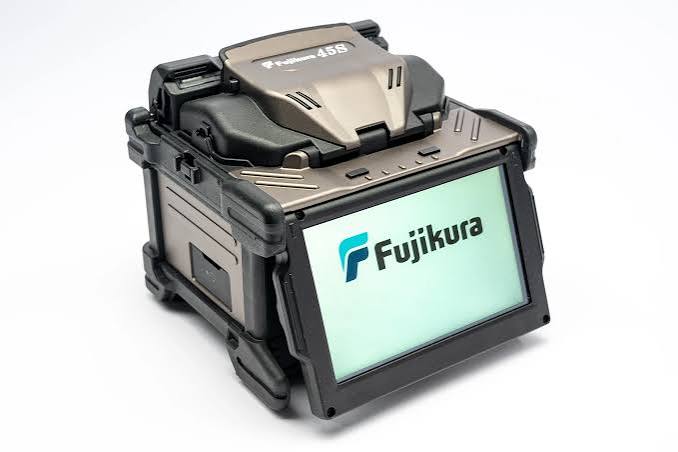

Fujikura 45S Fiber Optic Fusion Splicer
Part Number: FLOFFJ45S
Category: Fiber optic Fusion splicing
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fujikura 45S Fiber Optic Fusion Splicer is a compact, high-performance active cladding alignment fusion splicer designed for FTTH, FTTx, telecommunications, ISP networks, and enterprise fiber optic installations. Featuring Active Fusion Control, Bluetooth connectivity, rapid splice and heating times, and simultaneous fiber preparation, the 45S delivers accurate, low-loss splicing while significantly improving field productivity.
- Active cladding alignment technology.
- Supports Single Mode and Multi Mode optical fibers.
- Fast splice time of approximately 6–7 seconds.
- Fast heating time of 15–22 seconds.
- Active Fusion Control for optimized splice quality.

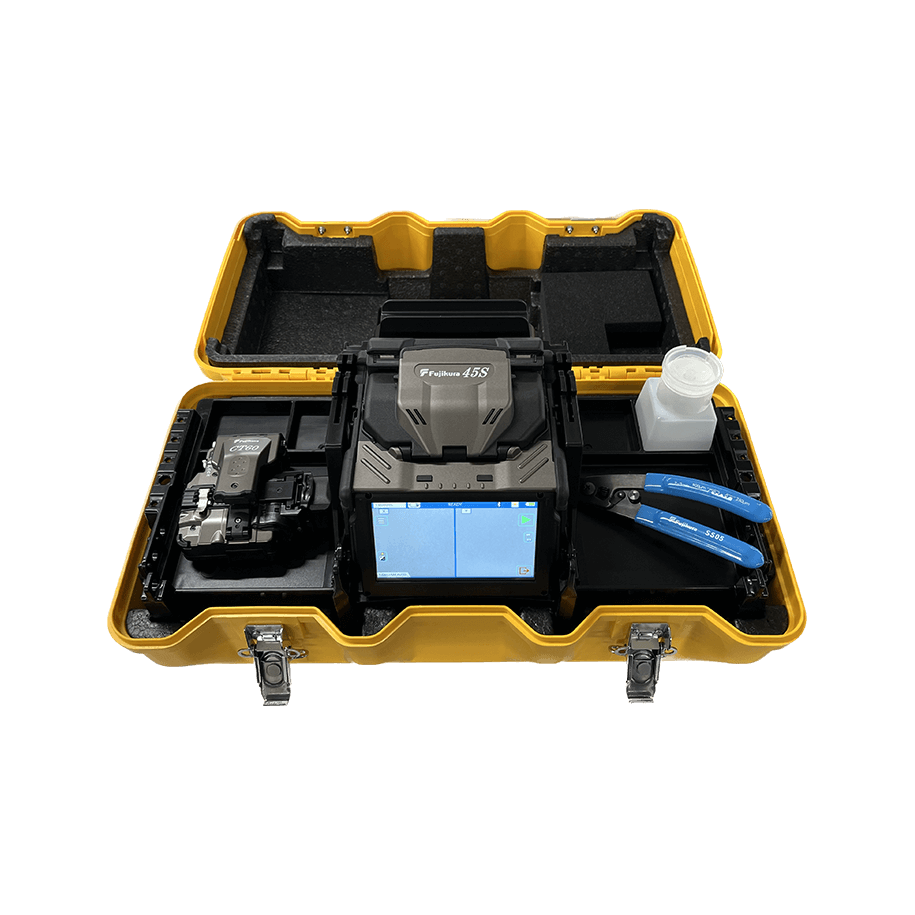

- Active Blade Management with Bluetooth-enabled CT50 cleaver.
- 4.95-inch color TFT touch screen.
- Bluetooth 5.2 wireless connectivity.
- Lightweight portable design weighing only 1.4 kg.
- Produces consistently low splice loss.
- Reduces installation time by up to 30%.
- Improves technician productivity with simultaneous fiber preparation.
- Provides reliable field operation in demanding environments.
- Ideal for FTTH, telecom, ISP, and enterprise fiber projects.
- Long battery life for extended field work.
- FTTH Networks.
- FTTx Deployments.
- Telecommunication Infrastructure.
- ISP Backbone Networks.
- Data Centers.
- Enterprise Fiber Networks.
- Fiber Optic Maintenance.
- Campus and Industrial Networks.
| Specification | Details |
|---|---|
| Alignment Method | Active Cladding Alignment |
| Applicable Fiber | Single Mode, Multi Mode, G.652, G.651, G.653, G.655, G.657 |
| Spliceable Fiber Count | Single Fiber |
| Cladding Diameter | 125 μm |
| Coating Diameter | Up to 3000 μm |
| Typical Splice Loss | 0.03 dB (SM), 0.01 dB (MM) |
| Splicing Time | 6–7 Seconds |
| Heating Time | 15–22 Seconds |
| Display | 4.95-inch Color TFT Touch Screen |
| Wireless Connectivity | Bluetooth 5.2 |
| Battery | 14.4V 3190mAh Lithium-ion |
| Battery Capacity | Up to 230 Splice & Heat Cycles |
| Storage Capacity | 20,000 Splice Results |
| Weight | 1.4 kg (Including Battery) |
| Operating Temperature | -10°C to +50°C |
FAQ
What alignment technology does the Fujikura 45S use?
The Fujikura 45S uses Active Cladding Alignment combined with Active Fusion Control to achieve consistent low-loss splicing.
How fast is the splicing process?
The typical splice time is approximately 6–7 seconds, while sleeve heating takes about 15–22 seconds depending on the sleeve type.
How many splice cycles does the battery support?
The lithium-ion battery supports up to approximately 230 splice and heat cycles on a full charge.
Is the Fujikura 45S suitable for FTTH installations?
Yes. The Fujikura 45S is specifically designed for FTTH, FTTx, ISP, telecom, and enterprise fiber optic installation and maintenance.
