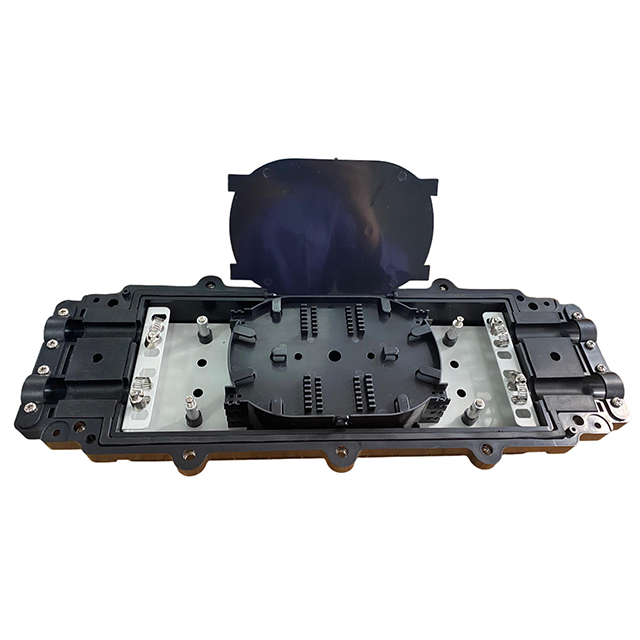

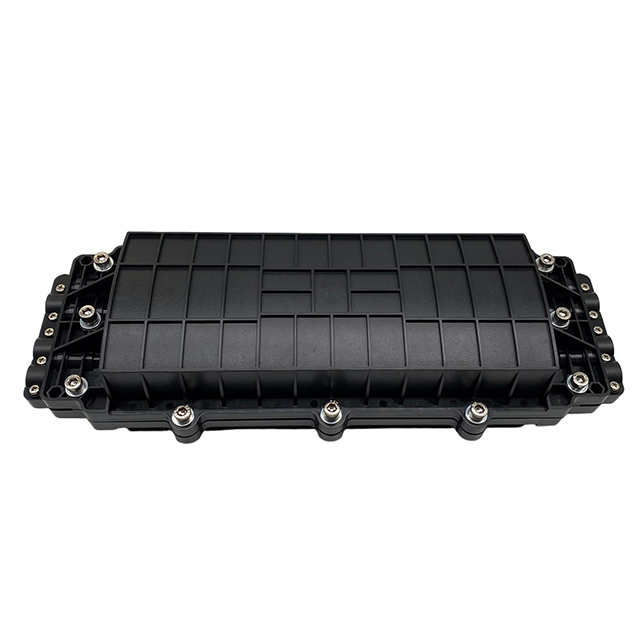

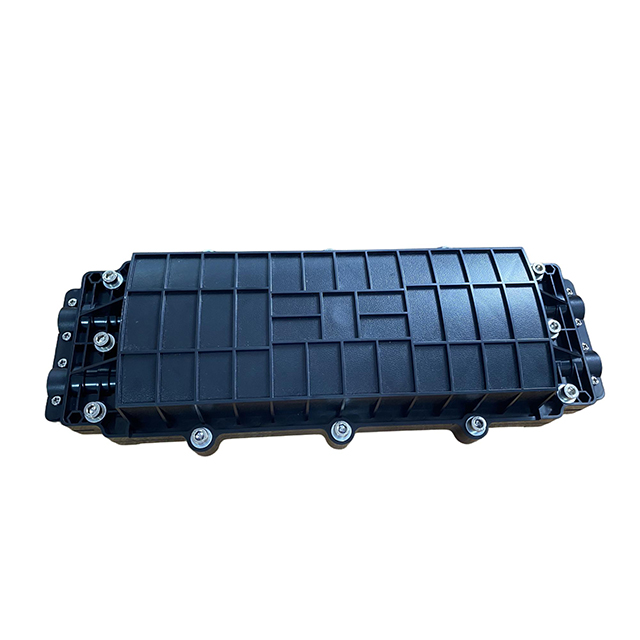

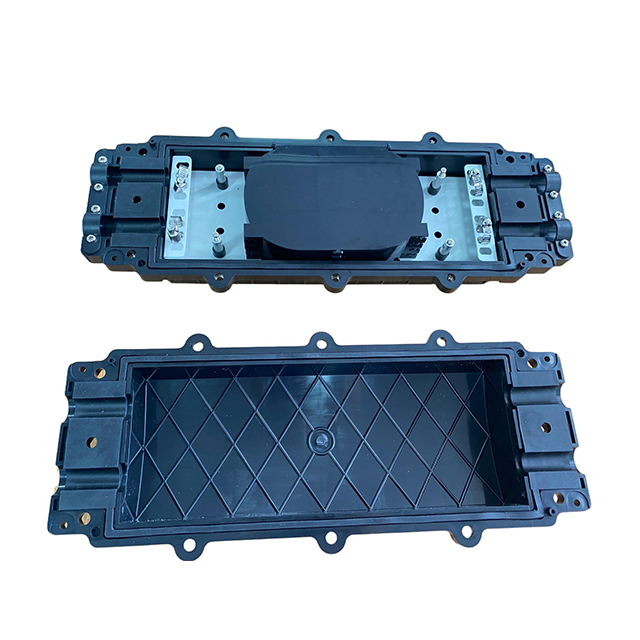

Horizontal Fiber Optic Splice Closure 144 Core CH005
Part Number: FL-CH005
Category: Fiber Optic Horizontal Closure
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Horizontal Fiber Optic Splice Closure CH005 is a high-capacity inline fiber closure engineered to protect and organize up to 144 fiber splices in outdoor environments. Constructed from high-strength ABS engineering plastic with an IP68-rated waterproof enclosure and reusable mechanical sealing system, it ensures reliable protection against moisture, dust, and harsh environmental conditions. It is ideal for FTTH, FTTx, telecommunications, aerial, duct, wall-mounted, and direct burial fiber optic installations.
- Supports up to 144 fiber splices.
- Horizontal inline splice closure design.
- IP68 waterproof and dustproof protection.
- Mechanical re-enterable sealing system.
- 2 cable entry and 2 cable exit ports.
- Supports cable diameters from Ø7 to Ø18 mm.
- High-strength UV-resistant ABS plastic housing.
- Reusable without replacing sealing materials.
- Suitable for single-mode and multimode fiber cables.
- Easy installation and maintenance.
- Provides reliable long-term protection for fiber optic splices.
- Prevents water, dust, and environmental contamination.
- Allows quick re-entry for maintenance and network expansion.
- Supports high-density fiber optic deployments.
- Improves cable routing and splice organization.
- Suitable for demanding outdoor telecom applications.
- FTTH Networks.
- FTTx Deployments.
- Telecommunication Networks.
- Optical Distribution Networks (ODN).
- Backbone Fiber Networks.
- Aerial Installations.
- Underground Duct Systems.
- Direct Burial Applications.
| Specification | Details |
|---|---|
| Model | FL-CH005 |
| Product Type | Horizontal Fiber Optic Splice Closure |
| Maximum Fiber Capacity | 144 Fibers |
| Splice Tray Capacity | 24 Fibers per Tray (Up to 6 Trays) |
| Closure Type | Horizontal / Inline |
| Cable Ports | 2 In × 2 Out |
| Supported Cable Diameter | Ø7–Ø18 mm |
| Dimensions | 466.5 × 179.8 × 120.6 mm |
| Weight | Approx. 2.7 kg |
| Housing Material | High-Strength UV-Resistant ABS Plastic |
| Protection Rating | IP68 |
| Sealing Method | Mechanical Re-enterable Seal |
| Installation Method | Aerial, Wall Mount, Duct & Direct Burial |
| Operating Temperature | -40°C to +65°C |
FAQ
What is the maximum fiber capacity of the CH005 closure?
The CH005 Horizontal Fiber Optic Splice Closure supports up to 144 fiber splices using six splice trays with a capacity of 24 fibers per tray.
Is the CH005 suitable for outdoor installations?
Yes. The CH005 features an IP68-rated waterproof enclosure and a reusable mechanical sealing system, making it ideal for harsh outdoor environments.
What cable sizes are supported?
The closure supports fiber optic cables with diameters ranging from Ø7 mm to Ø18 mm through its 2 in × 2 out cable ports.
Where can the CH005 splice closure be installed?
The CH005 is suitable for aerial, wall-mounted, underground duct, and direct burial fiber optic network installations.
