Horizontal Fiber Optic Splice Closure 144 core CH004
Part Number: FL-CH004
Category: Fiber Optic Horizontal Closure
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info

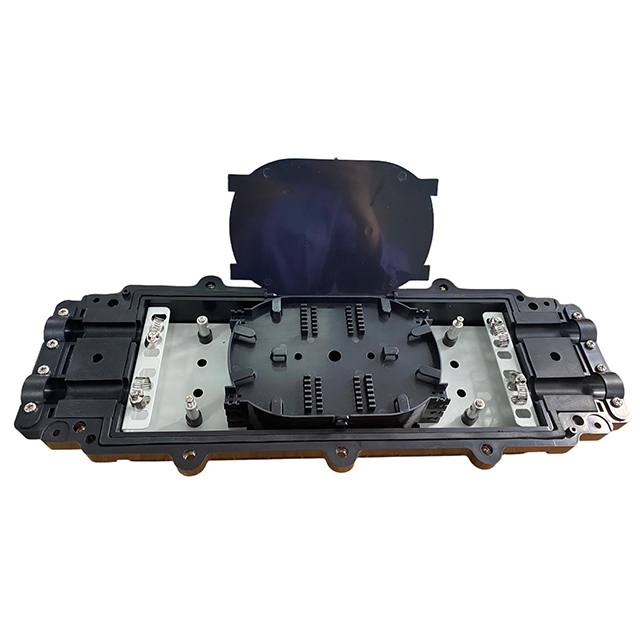

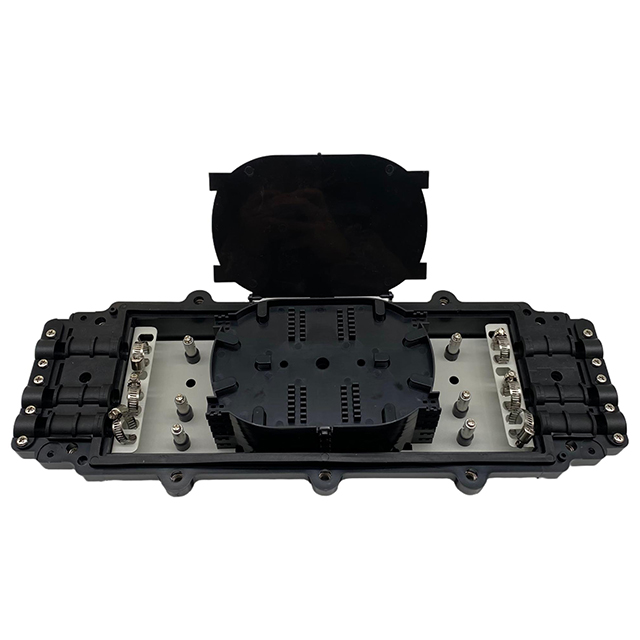

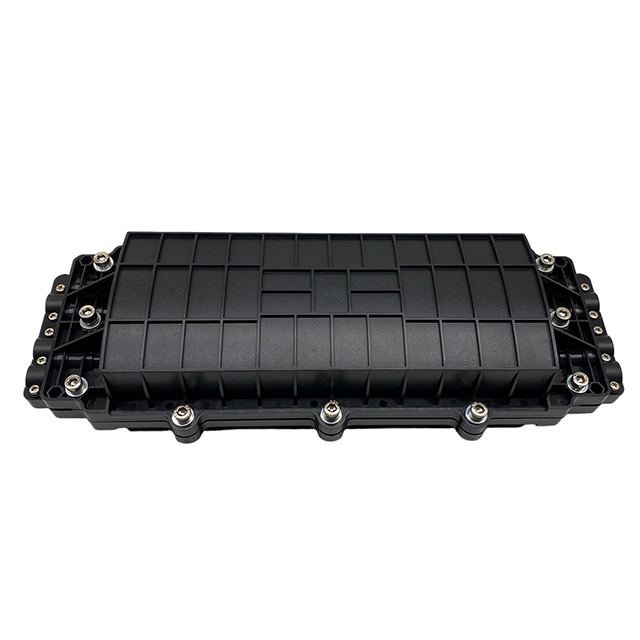

The Horizontal Fiber Optic Splice Closure CH004 is a high-capacity inline splice enclosure engineered to protect and organize up to 144 fiber optic splices in outdoor environments. Designed with a rugged IP68 waterproof housing and a reusable mechanical sealing system, it provides reliable protection against moisture, dust, and harsh weather conditions. The CH004 is ideal for FTTH, FTTx, telecommunications, backbone, aerial, duct, and direct burial fiber optic installations.
- Supports up to 144 fiber splices.
- Horizontal inline closure design.
- IP68 waterproof and dustproof protection.
- Mechanical re-enterable sealing system.
- 6 round cable ports (3 In × 3 Out).
- Supports cable diameters of Ø13–Ø15 mm.
- High-strength UV-resistant ABS housing.
- Modular splice trays for organized fiber management.
- Reusable without replacing sealing materials.
- Suitable for single-mode and multimode fiber cables.
- Protects fiber splices from water, dust, and mechanical damage.
- Supports high-density FTTH and telecom deployments.
- Allows quick re-entry for maintenance and network upgrades.
- Simplifies cable routing and splice organization.
- Provides reliable long-term outdoor performance.
- Compatible with aerial, wall-mounted, duct, and direct burial installations.
| Specification | Details |
|---|---|
| Model | FL-CH004 |
| Product Type | Horizontal Fiber Optic Splice Closure |
| Maximum Fiber Capacity | 144 Fibers |
| Splice Tray Capacity | 24 Fibers per Tray (Up to 6 Trays) |
| Closure Type | Horizontal / Inline |
| Cable Ports | 6 Ports (3 In × 3 Out) |
| Supported Cable Diameter | Ø13–Ø15 mm |
| Housing Material | High-Strength UV-Resistant ABS Plastic |
| Protection Rating | IP68 |
| Sealing Method | Mechanical Re-enterable Seal |
| Installation Method | Aerial, Wall Mount, Duct & Direct Burial |
| Operating Temperature | -40°C to +65°C |
FAQ
What is the maximum fiber capacity of the CH004 closure?
The CH004 supports up to 144 fiber splices using modular splice trays with a capacity of 24 fibers per tray.
Is the CH004 suitable for outdoor installations?
Yes. It features an IP68-rated waterproof and dustproof enclosure with a reusable mechanical sealing system for reliable outdoor performance.
How many cable ports are available?
The CH004 provides six cable ports in a 3 In × 3 Out configuration, supporting cable diameters from Ø13 mm to Ø15 mm.
Where can the CH004 splice closure be installed?
It is suitable for aerial, wall-mounted, underground duct, and direct burial fiber optic network installations.
- FTTH Networks.
- FTTx Deployments.
- Telecommunication Networks.
- Optical Distribution Networks (ODN).
- Backbone Fiber Networks.
- Aerial Cable Installations.
- Underground Duct Systems.
- Direct Burial Fiber Networks.
