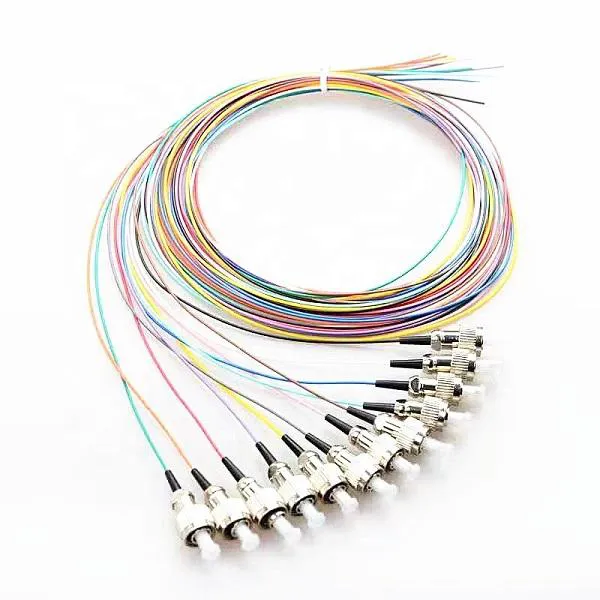

FC Multi Mode Fiber Optic Pigtail UPC OM4– ITU-T G.657A1 , 12 Fiber
Part Number: FLOFPTFCG7102
Category: Fiber Optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The FC Multi Mode Fiber Optic Pigtail UPC OM4 12 Fiber is designed for high-performance optical splicing and termination applications. Manufactured with premium OM4 multimode fiber, it provides low insertion loss, high return loss, and reliable signal transmission. The FC/UPC connector ensures stable connectivity, making it ideal for data centers, LAN networks, telecom systems, and high-speed optical communication environments.
- 12-fiber multimode fiber optic pigtail.
- FC/UPC connector interface.
- OM4 50/125μm multimode fiber.
- Low insertion loss and high return loss.
- Factory polished and tested.
- Excellent mechanical durability.
- Color-coded fibers for easy identification.
- Suitable for fusion splicing applications.
- Reliable high-speed optical performance.
- Supports 10G, 40G, and 100G network applications.
- Reduces signal attenuation and loss.
- Easy fiber management and installation.
- Long service life and stable operation.
- Compatible with standard FC optical equipment.
- Data centers and cloud infrastructure.
- Local Area Networks (LAN).
- Telecommunication networks.
- Fiber optic patch panels and ODF systems.
- Enterprise network installations.
- Optical equipment termination and splicing.
| Specification | Details |
|---|---|
| Brand | Fiber Light |
| Product Type | Fiber Optic Pigtail |
| Fiber Count | 12 Fibers |
| Fiber Type | OM4 Multimode 50/125μm |
| Connector Type | FC/UPC |
| Polish Type | UPC |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Cable Diameter | 0.9 mm |
| Operating Wavelength | 850 / 1300 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
FAQ
What is the main use of this FC OM4 pigtail?
It is used for fiber termination and fusion splicing in multimode optical networks.
Is this pigtail suitable for high-speed data transmission?
Yes, OM4 fiber supports high-bandwidth applications including 10G, 40G, and 100G Ethernet.
What connector type is provided?
The pigtail is terminated with an FC connector featuring UPC polishing.
Can it be used in data centers?
Yes, it is widely used in data centers, LAN systems, telecom networks, and optical distribution frames.
