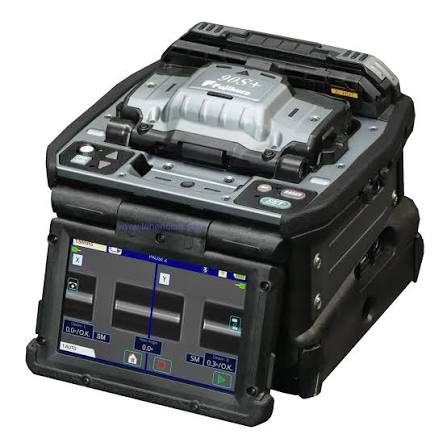

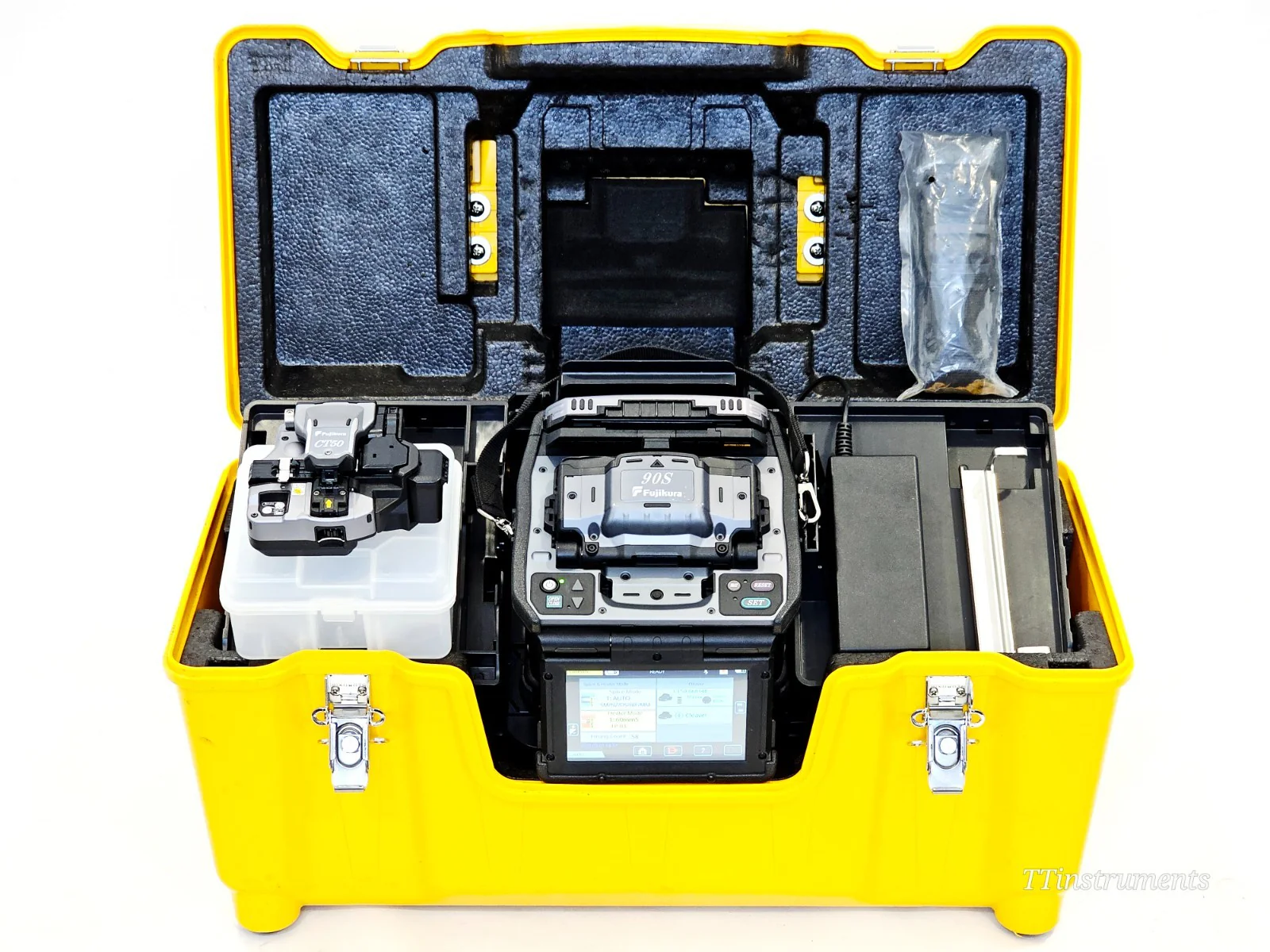

Fujikura 90S Fiber Optic Fusion Splicer
Part Number: FLOFJ-90S
Category: Fiber optic Fusion splicing
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fujikura 90S Fiber Optic Fusion Splicer is a premium active core alignment fusion splicer designed for FTTH, FTTx, telecommunications, ISP backbone networks, and enterprise fiber optic installations. Featuring Active Fusion Control, intelligent automation, Bluetooth connectivity, and rapid splice and heating cycles, the 90S delivers exceptionally low splice loss, high productivity, and dependable performance for demanding field applications.
- Active core alignment technology.
- Supports Single Mode, Multi Mode, DS, NZDS, and bend-insensitive fibers.
- Fast splice time of approximately 7–9 seconds.
- Fast sleeve heating in 9–15 seconds.
- Active Fusion Control for optimized splice quality.
- Bluetooth connectivity for intelligent accessory management.
- 4.9-inch TFT color touch screen.
- Automatic wind protector and fiber retention clamps.
- Stores up to 20,000 splice results.
- Delivers consistently low splice loss.
- Improves technician productivity with automated operation.
- Reduces installation and maintenance time.
- Provides reliable performance in indoor and outdoor environments.
- Supports a wide range of fiber optic applications.
- Long battery life for extended field operations.
- FTTH Networks.
- FTTx Deployments.
- Telecommunication Networks.
- ISP Backbone Installation.
- Data Centers.
- Enterprise Optical Networks.
- Fiber Optic Maintenance.
- Industrial Fiber Communication Systems.
| Specification | Details |
|---|---|
| Model | Fujikura 90S |
| Alignment Method | Active Core Alignment |
| Applicable Fiber | SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Fiber Count | Single Fiber |
| Cladding Diameter | 80–150 μm |
| Coating Diameter | Up to 3000 μm |
| Typical Splice Loss | SM 0.02 dB, MM 0.01 dB |
| Splicing Time | 7–9 Seconds |
| Heating Time | 9–15 Seconds |
| Display | 4.9-inch TFT Color Touch Screen |
| Battery | 14.4V 6380mAh Lithium-ion |
| Battery Capacity | Up to 300 Splice & Heat Cycles |
| Wireless Connectivity | Bluetooth 4.1 |
| Data Storage | 20,000 Splice Results |
| Electrode Life | Approx. 5,000 Arc Discharges |
| Weight | Approx. 2.8 kg (Including Battery) |
| Operating Temperature | -10°C to +50°C |
FAQ
What alignment technology does the Fujikura 90S use?
The Fujikura 90S uses Active Core Alignment technology with Active Fusion Control to achieve highly accurate, low-loss fiber splicing.
How fast is the splicing process?
The typical splice time is approximately 7–9 seconds, while protection sleeve heating takes approximately 9–15 seconds depending on the selected mode.
How many splice cycles can the battery perform?
The high-capacity lithium-ion battery supports up to approximately 300 splice and heat cycles on a full charge.
Is the Fujikura 90S suitable for FTTH and telecom applications?
Yes. The Fujikura 90S is designed for FTTH, FTTx, telecommunications, ISP backbone networks, enterprise optical networks, and professional fiber optic maintenance.
