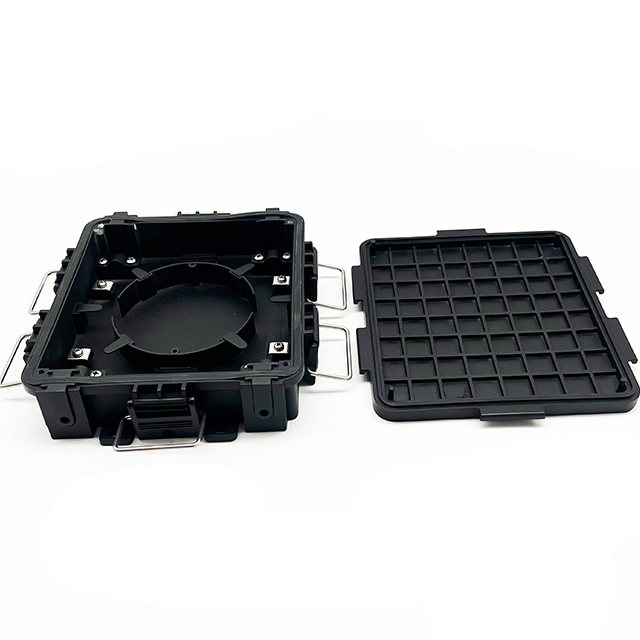

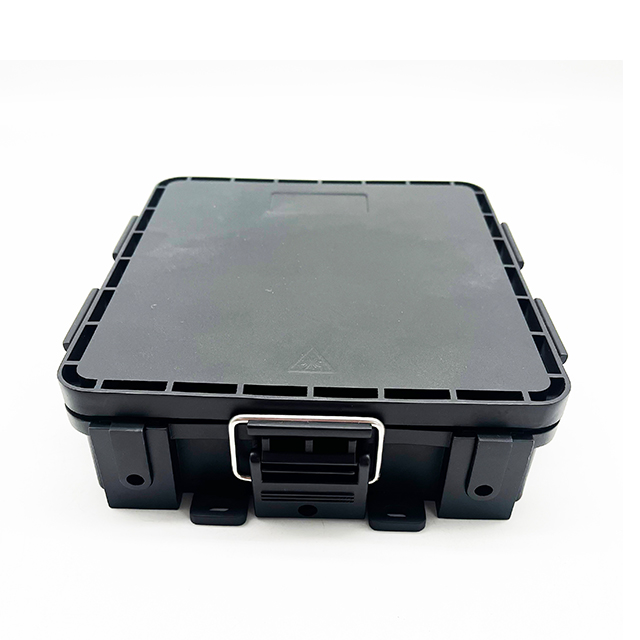

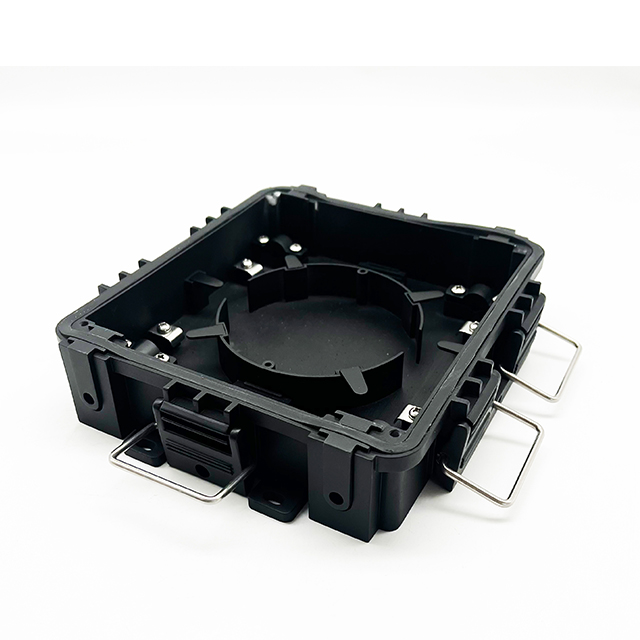

Fiber Optic Splice Closure 8 Core CH020
Part Number: FL-CH020
Category: Fiber Optic Horizontal Closure
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fiber Optic Splice Closure CH020 is a compact outdoor closure designed to protect and organize up to 8 fiber optic splices. Built with a durable IP68-rated enclosure and a reliable mechanical sealing system, it protects fiber connections from water, dust, UV exposure, and harsh environmental conditions. The CH020 is ideal for FTTH drop cable applications, access networks, and last-mile fiber deployments.
- Supports up to 8 fiber splices.
- Compact and lightweight design.
- IP68 waterproof and dustproof protection.
- Mechanical re-enterable sealing system.
- Suitable for drop cable splicing applications.
- High-strength UV-resistant engineering plastic housing.
- Easy installation and maintenance.
- Supports single-mode and multimode fibers.
- Excellent resistance to corrosion and outdoor weather.
- Provides reliable protection for fiber optic splices.
- Prevents water and dust from entering the enclosure.
- Compact size simplifies installation in limited spaces.
- Allows quick access for maintenance and repairs.
- Improves long-term network reliability.
- Ideal for FTTH and last-mile fiber deployments.
- FTTH Access Networks.
- Drop Cable Splicing.
- Telecommunication Networks.
- Optical Distribution Networks (ODN).
- Outdoor Fiber Cable Protection.
- Pole Mount Installations.
- Wall Mount Installations.
- Last-Mile Fiber Networks.
| Specification | Details |
|---|---|
| Model | CH020 |
| Product Type | Fiber Optic Splice Closure |
| Maximum Fiber Capacity | 8 Fibers |
| Closure Type | Compact Inline Closure |
| Protection Rating | IP68 |
| Sealing Method | Mechanical Re-enterable Seal |
| Housing Material | UV-Resistant Engineering Plastic |
| Fiber Type | Single Mode & Multi Mode |
| Installation Method | Pole Mount, Wall Mount |
| Operating Temperature | -40°C to +65°C |
FAQ
What is the maximum fiber capacity of the CH005 closure?
The CH005 Horizontal Fiber Optic Splice Closure supports up to 144 fiber splices using six splice trays with a capacity of 24 fibers per tray.
Is the CH005 suitable for outdoor installations?
Yes. The CH005 features an IP68-rated waterproof enclosure and a reusable mechanical sealing system, making it ideal for harsh outdoor environments.
What cable sizes are supported?
The closure supports fiber optic cables with diameters ranging from Ø7 mm to Ø18 mm through its 2 in × 2 out cable ports.
Where can the CH005 splice closure be installed?
The CH005 is suitable for aerial, wall-mounted, underground duct, and direct burial fiber optic network installations.
