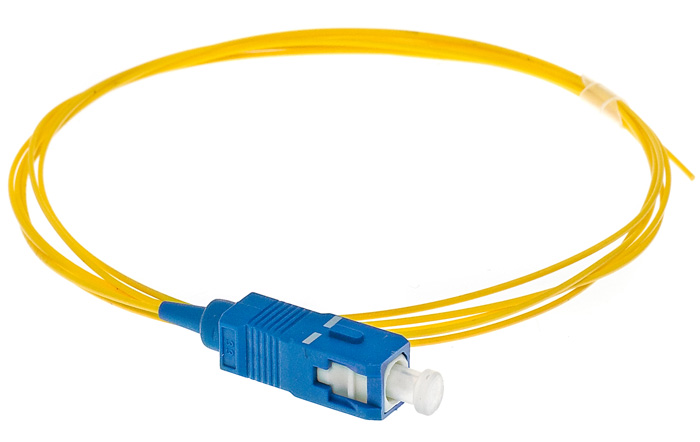

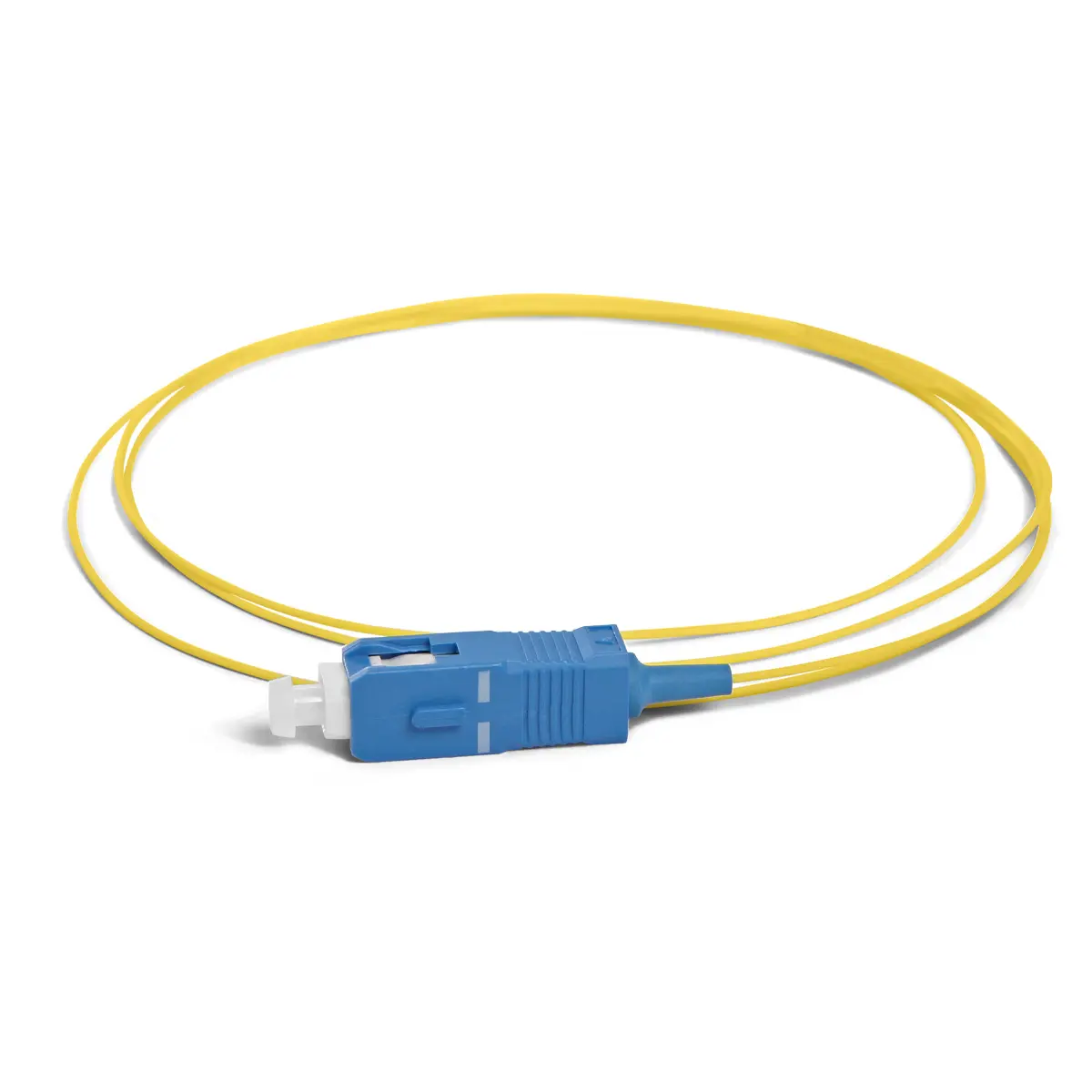

Fiber Pigtail SC UPC to Unterminated Simplex OS2 LSZH
Part Number: FLOFPTSCG7101
Category: Fiber optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fiber Pigtail SC UPC to Unterminated Simplex OS2 LSZH is a high-quality single-mode fiber optic pigtail designed for fusion splicing and optical termination applications. Featuring an SC/UPC connector and OS2 9/125μm fiber, it delivers low insertion loss, high return loss, and reliable long-distance optical transmission. The LSZH jacket enhances fire safety, making it ideal for FTTH, FTTx, telecommunications, data centers, CATV, and enterprise fiber optic networks.
- SC/UPC connector with precision ceramic ferrule for stable optical performance.
- OS2 single-mode 9/125μm fiber optimized for long-distance transmission.
- Simplex configuration with one terminated end and one unterminated end for fusion splicing.
- LSZH (Low Smoke Zero Halogen) jacket for enhanced indoor safety.
- Low insertion loss and high return loss.
- Factory polished and 100% performance tested.
- Excellent mechanical durability and long service life.
- Compatible with ODFs, patch panels, splice closures, and FTTH systems.
- Provides stable, low-loss optical connectivity.
- Supports reliable long-distance single-mode transmission.
- Ideal for FTTH, FTTx, telecom, and CATV applications.
- Reduces installation time during fusion splicing.
- LSZH jacket improves safety in indoor environments.
- Ensures dependable, long-lasting optical performance.
- FTTH (Fiber to the Home) networks.
- FTTx deployments.
- Telecommunication infrastructure.
- Optical Distribution Frames (ODF).
- Fiber optic patch panels and splice closures.
- Data centers and enterprise networks.
- CATV and broadband communication systems.
| Specification | Details |
|---|---|
| Product Type | Fiber Optic Pigtail |
| Fiber Type | Single Mode OS2 (9/125μm) |
| Configuration | Simplex |
| Connector Type | SC/UPC |
| Connector Polish | UPC |
| Other End | Unterminated |
| Cable Jacket | LSZH |
| Cable Diameter | 0.9 mm |
| Operating Wavelength | 1310 / 1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
FAQ
What is the SC/UPC fiber pigtail used for?
It is used for fusion splicing and optical termination in FTTH, FTTx, telecommunications, CATV, and enterprise fiber optic networks.
Why choose an SC/UPC connector?
SC/UPC connectors provide low insertion loss, high return loss, and a reliable push-pull connection for stable optical performance.
Why is the cable jacket made of LSZH?
LSZH material reduces smoke and toxic gas emissions during fire, making it ideal for indoor and enclosed installations.
Is every fiber pigtail factory tested?
Yes. Every Fiber Light fiber pigtail is factory polished and tested to ensure low insertion loss, excellent return loss, and consistent optical performance.
