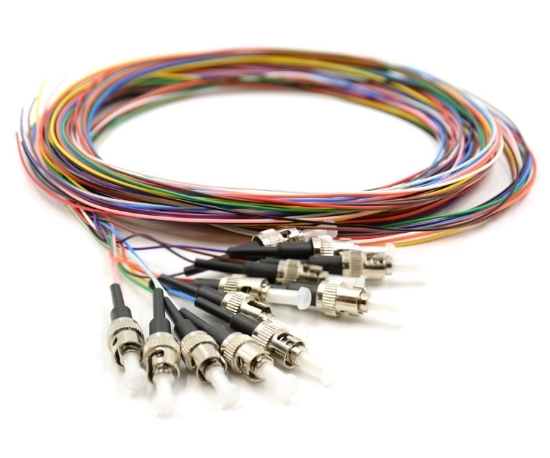

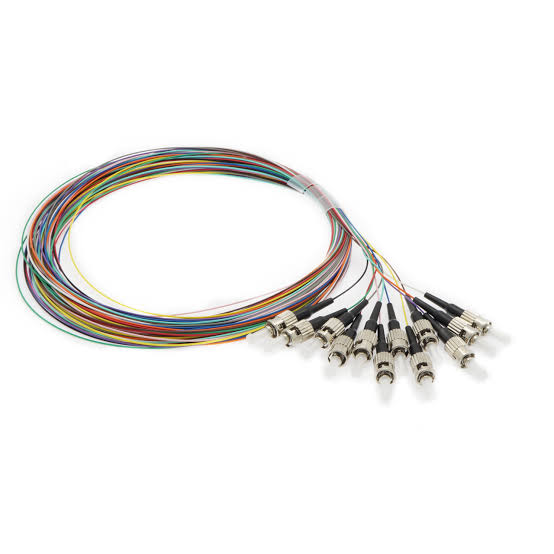

ST Single Mode Fiber Optic Pigtail UPC ITU-T G.657A1 12 Fiber
Part Number: FLOFPTSTG7102
Category: Fiber Optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The ST Single Mode Fiber Optic Pigtail UPC – ITU-T G.657A1, 12 Fiber is a high-quality ribbon fiber optic pigtail designed for fusion splicing and high-density fiber termination applications. Featuring 12 color-coded OS2 fibers with precision ST/UPC connectors, it delivers low insertion loss, high return loss, and excellent bending performance. Manufactured according to ITU-T G.657A1 standards, it is ideal for FTTH, FTTx, telecommunications, optical distribution frames, and enterprise fiber optic networks.
- 12-fiber ribbon pigtail with ST/UPC connectors.
- Single Mode OS2 fiber compliant with ITU-T G.657A1.
- Excellent bend-insensitive optical performance.
- Precision ceramic ferrules for accurate alignment.
- Low insertion loss and high return loss.
- Factory polished and 100% performance tested.
- Color-coded fibers for quick identification.
- Suitable for fusion splicing in high-density fiber installations.
- Provides reliable long-distance optical transmission.
- Excellent resistance to macro bending.
- Supports high-density fiber optic installations.
- Fast and efficient fusion splicing.
- Reduces signal loss for stable network performance.
- Suitable for telecom, FTTH, and enterprise applications.
- FTTH (Fiber to the Home).
- FTTx Networks.
- Optical Distribution Frames (ODF).
- Fiber Optic Patch Panels.
- Telecommunication Networks.
- CATV Systems.
- Data Centers.
- Fiber Splicing Closures.
| Specification | Details |
|---|---|
| Brand | Fiber Light |
| Product Type | Fiber Optic Pigtail |
| Connector Type | ST/UPC |
| Fiber Count | 12 Fiber |
| Fiber Type | Single Mode OS2 |
| Fiber Standard | ITU-T G.657A1 |
| Configuration | Ribbon Pigtail |
| Connector Ferrule | Ceramic |
| Polish Type | UPC |
| Insertion Loss | ≤0.30 dB |
| Return Loss | ≥50 dB |
| Operating Wavelength | 1310 / 1550 nm |
| Cable Jacket | LSZH |
| Operating Temperature | -20°C to +70°C |
FAQ
What is this 12-fiber ST pigtail used for?
It is designed for high-density fiber splicing and termination in ODFs, patch panels, FTTH, and telecommunications networks.
What is the advantage of G.657A1 fiber?
G.657A1 fiber offers excellent bend resistance while maintaining full compatibility with standard G.652.D single-mode fiber.
Why use ST/UPC connectors?
ST/UPC connectors provide secure bayonet-style locking, low insertion loss, and reliable optical performance in telecom and industrial applications.
Are all Fiber Light pigtails factory tested?
Yes. Every Fiber Light fiber optic pigtail is factory polished and individually tested to ensure low insertion loss, high return loss, and consistent optical performance.
