ST Multi Mode Fiber Optic Pigtail UPC OM3 ITU-T G.651 12 Fiber
Part Number: FLOFPTSTO302
Category: Fiber Optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info

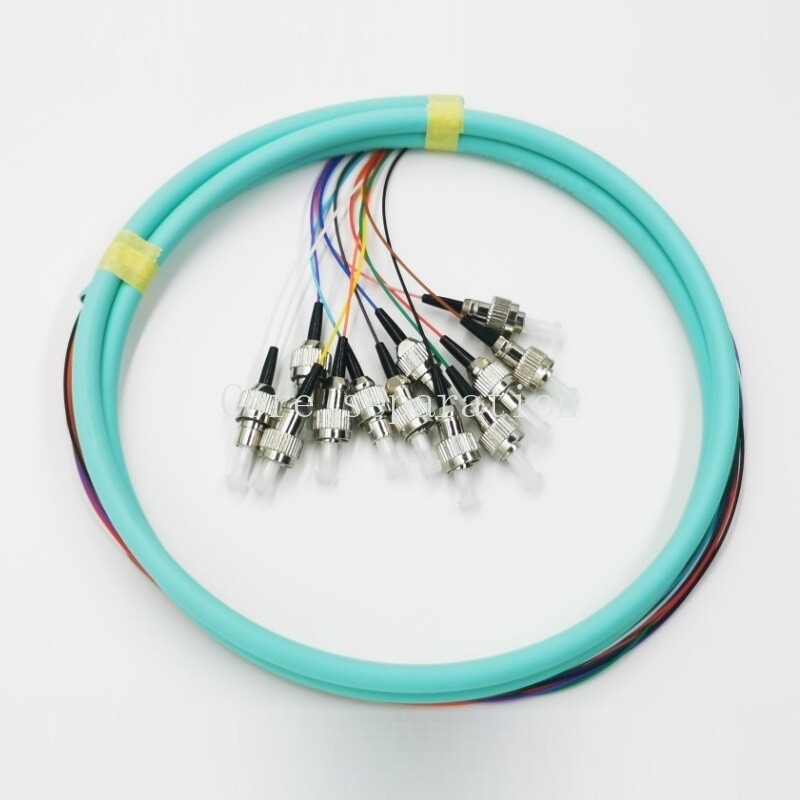

The ST Multi Mode Fiber Optic Pigtail UPC OM3 – ITU-T G.651, 12 Fiber is a high-performance ribbon fiber optic pigtail designed for fusion splicing and fiber termination. Featuring OM3 50/125μm multimode fiber and precision ST/UPC connectors, it delivers low insertion loss, reliable optical performance, and stable signal transmission for data centers, LANs, telecommunications, ODFs, and enterprise fiber optic networks.
- 12-fiber ribbon pigtail with ST/UPC connectors.
- OM3 50/125μm multimode fiber compliant with ITU-T G.651.
- ST bayonet-style connector for secure and reliable installation.
- Precision ceramic ferrules ensure accurate fiber alignment.
- Low insertion loss and excellent optical performance.
- Factory polished and individually tested.
- Color-coded fibers for simplified fusion splicing.
- Compatible with ODFs, patch panels, splice closures, and fiber distribution systems.
- Supports high-speed multimode optical transmission.
- Provides stable and reliable network connectivity.
- Ideal for high-density fiber optic installations.
- Simplifies ribbon fusion splicing.
- Reduces installation time and maintenance costs.
- Ensures long-term optical network reliability.
- Data Centers.
- Local Area Networks (LAN).
- Telecommunication Networks.
- Optical Distribution Frames (ODF).
- Fiber Patch Panels.
- Enterprise Networks.
- Fiber Splicing Closures.
- Campus Backbone Cabling.
| Specification | Details |
|---|---|
| Product Type | Fiber Optic Pigtail |
| Connector Type | ST/UPC |
| Fiber Count | 12 Fiber |
| Fiber Type | OM3 Multimode (50/125μm) |
| Standard | ITU-T G.651 |
| Configuration | Ribbon Pigtail |
| Connector Ferrule | Ceramic |
| Polish Type | UPC |
| Insertion Loss | ≤0.30 dB |
| Return Loss | ≥35 dB |
| Operating Wavelength | 850 / 1300 nm |
| Cable Jacket | LSZH |
| Operating Temperature | -20°C to +70°C |
FAQ
What is this 12-fiber ST OM3 pigtail used for?
It is designed for fusion splicing and fiber termination in ODFs, patch panels, LANs, data centers, and enterprise fiber optic networks.
Why choose ST/UPC connectors?
ST connectors feature a bayonet locking mechanism that provides secure installation and dependable performance in multimode fiber optic systems.
What are the advantages of OM3 multimode fiber?
OM3 fiber supports 10G, 40G, and 100G Ethernet over short distances, making it ideal for modern data centers and high-speed enterprise networks.
Are Fiber Light pigtails factory tested?
Yes. Every Fiber Light ST OM3 Fiber Optic Pigtail is factory polished and individually tested to ensure low insertion loss, reliable optical performance, and consistent quality.
