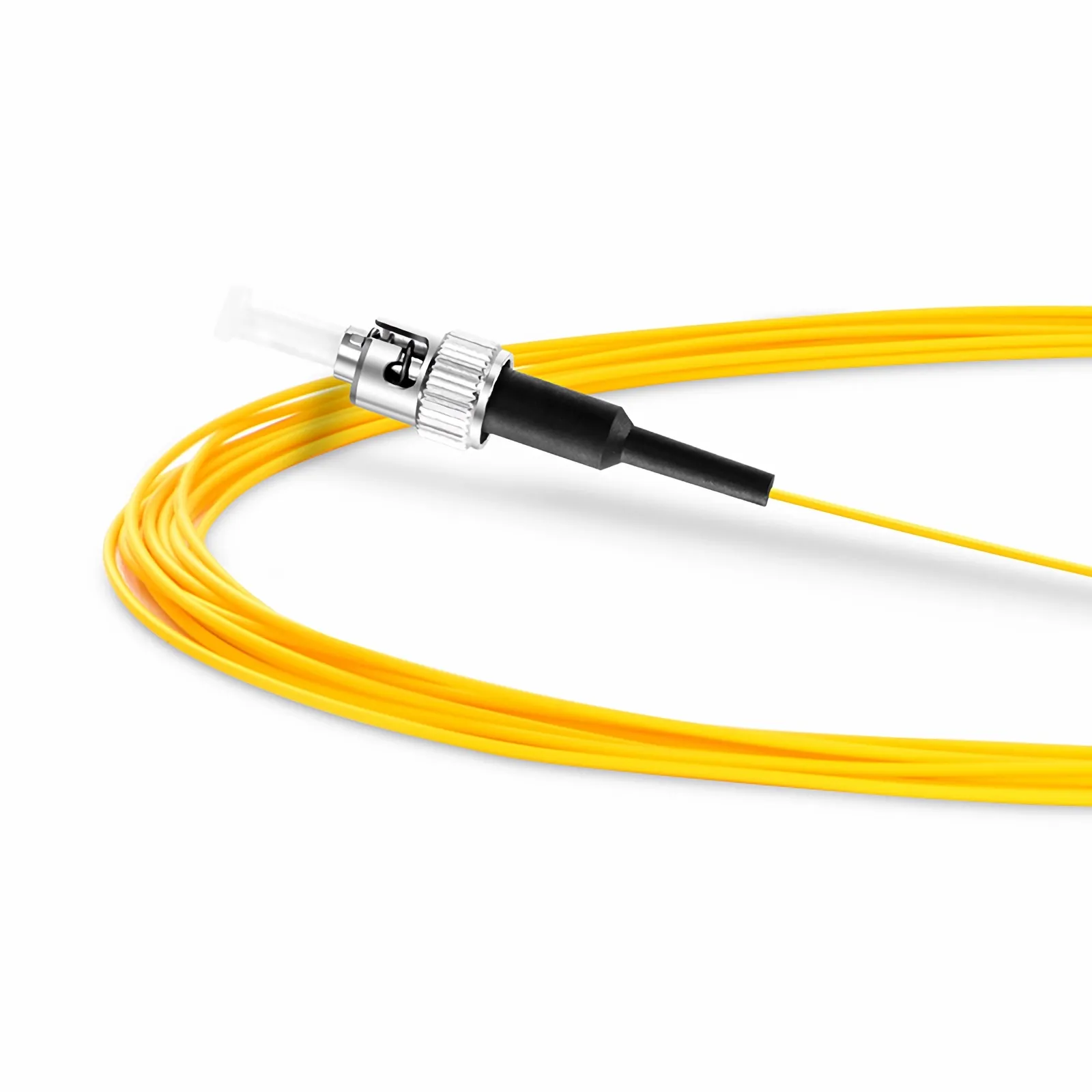

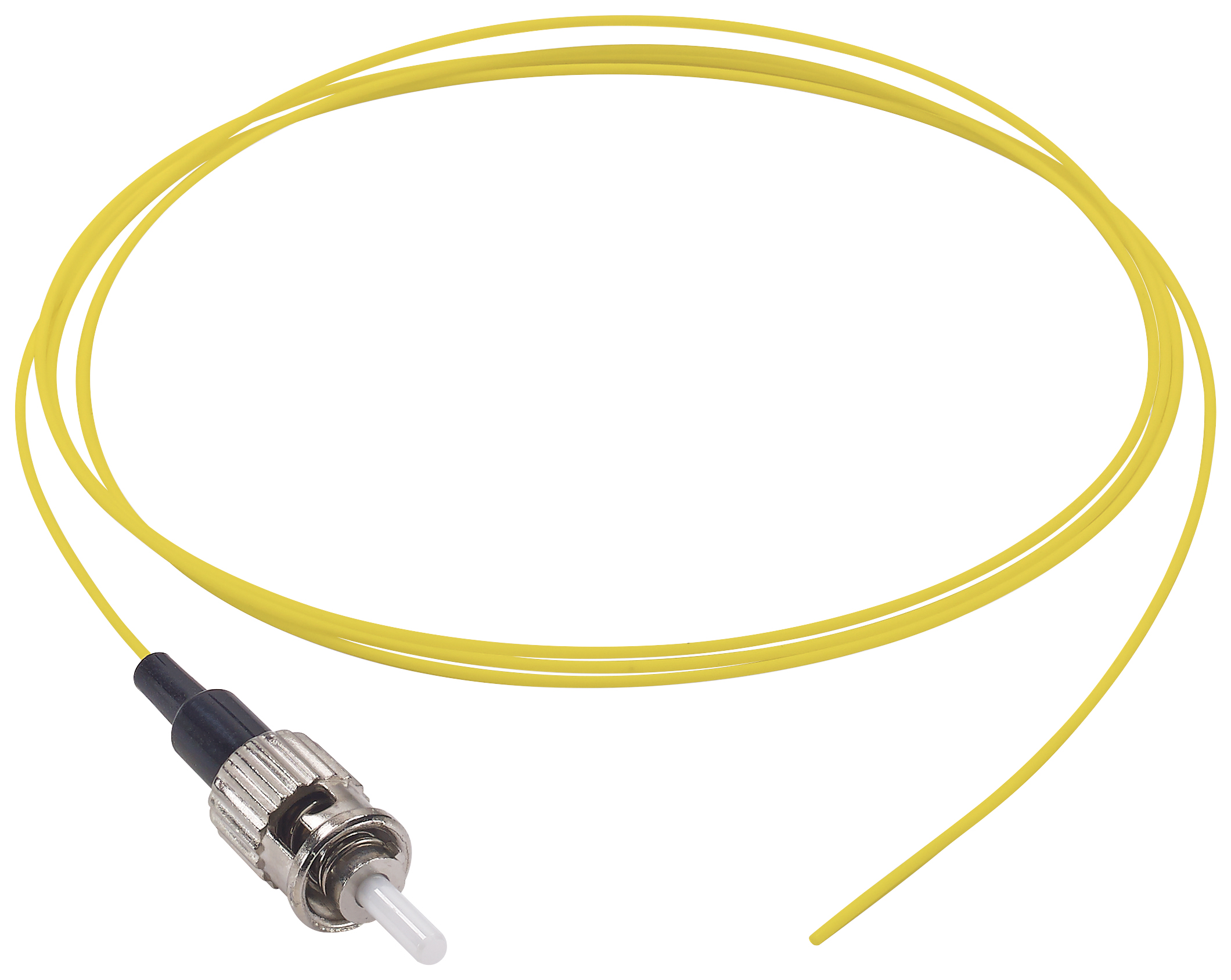

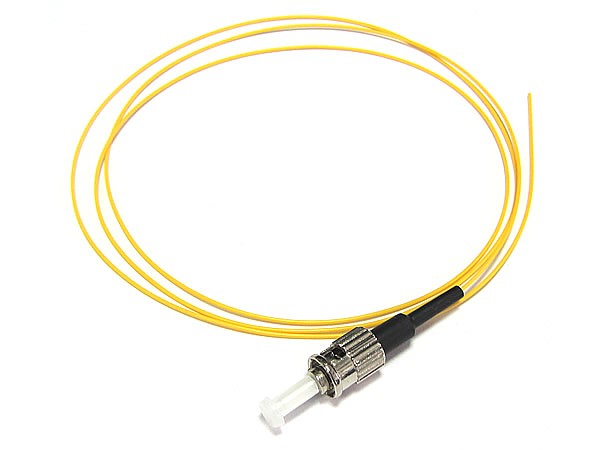

Fiber Pigtail ST UPC to Unterminated Simplex OS2 LSZH
Part Number: FLOFPTSTG7101
Category: Fiber optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fiber Pigtail ST UPC to Unterminated Simplex OS2 LSZH is a high-performance single-mode fiber optic pigtail designed for fusion splicing and optical termination applications. Manufactured with OS2 9/125μm fiber and a Low Smoke Zero Halogen (LSZH) jacket, it offers low insertion loss, high return loss, and excellent durability for telecom, FTTH, data center, and enterprise network installations.
- FTTH (Fiber to the Home).
- Telecommunication networks.
- Optical Distribution Frames (ODF).
- Fiber optic termination panels.
- Data centers.
- LAN, WAN and enterprise networks.
- Fiber optic testing laboratories.
- Single-mode OS2 9/125μm fiber.
- ST/UPC connector on one end.
- Unterminated fiber on the opposite end for fusion splicing.
- Simplex configuration.
- LSZH jacket for enhanced fire safety.
- Low insertion loss and high return loss.
- Factory polished and 100% tested.
- Excellent mechanical durability and reliability.
| Specification | Details |
|---|---|
| Product Type | Fiber Optic Pigtail |
| Fiber Type | Single Mode OS2 (9/125μm) |
| Configuration | Simplex |
| Connector Type | ST/UPC |
| Other End | Unterminated |
| Jacket Material | LSZH |
| Cable Diameter | 0.9 mm |
| Operating Wavelength | 1310 / 1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
- Provides stable and reliable optical performance.
- Ideal for permanent fiber splicing applications.
- Reduces installation time and maintenance costs.
- Supports long-distance single-mode transmission.
- Safe LSZH cable suitable for indoor installations.
- Compatible with standard ST fiber optic equipment.
FAQ
What is this fiber pigtail used for?
It is used for fusion splicing and fiber optic termination in telecom, FTTH, and data center networks.
What does OS2 mean?
OS2 is a single-mode fiber designed for long-distance, high-speed optical transmission at 1310nm and 1550nm wavelengths.
Why is the cable LSZH?
LSZH (Low Smoke Zero Halogen) minimizes smoke and toxic gas emissions during fire, making it suitable for indoor installations.
Is this pigtail factory tested?
Yes. Every pigtail is factory polished and tested to ensure low insertion loss and reliable optical performance.
