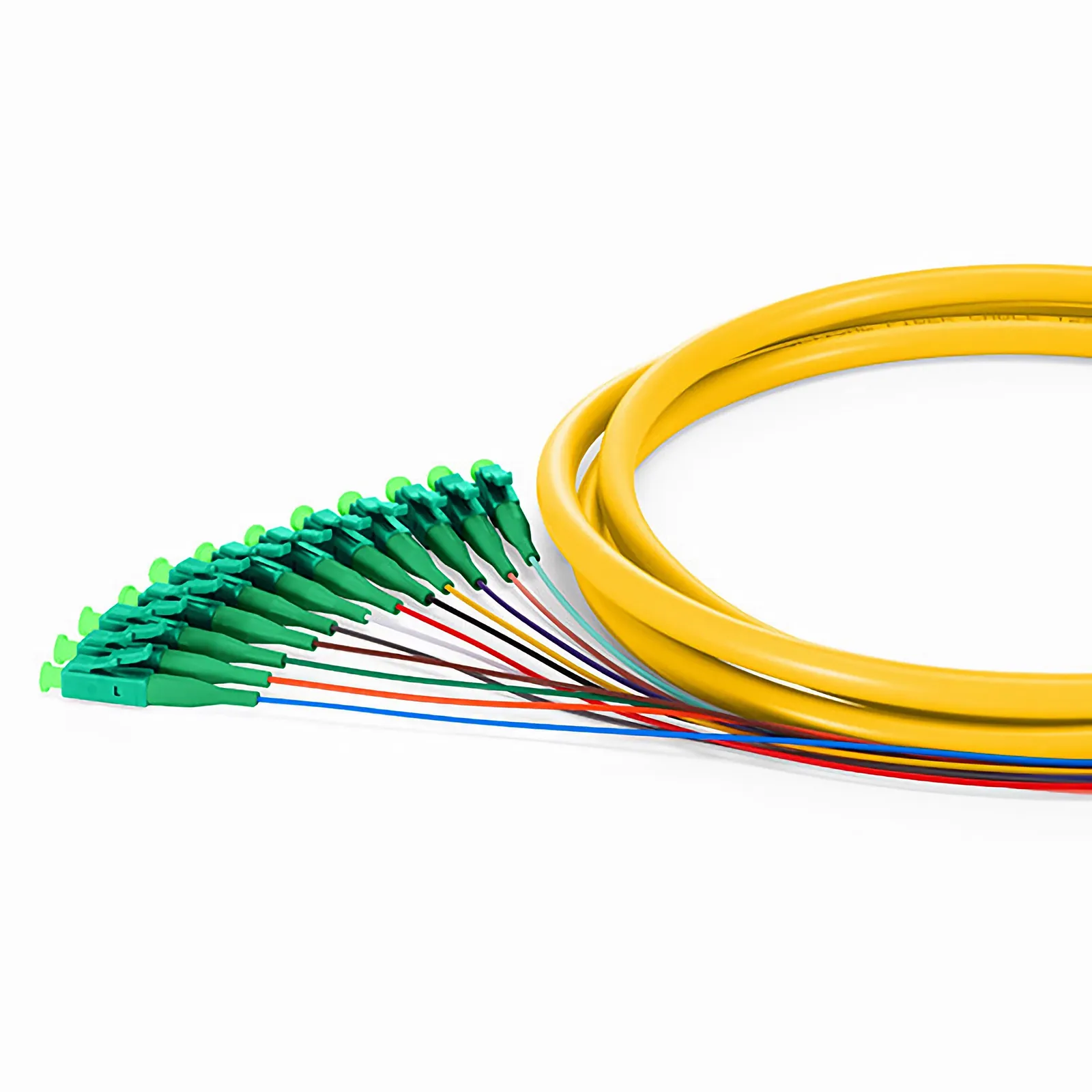

LC Single Mode Fiber Optic Pigtail APC – ITU-T G.657A1, 12 Fiber
Part Number: FLOFPTLCG7102
Category: Fiber Optic Pigtail
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
Overview
The LC Single Mode Fiber Optic Pigtail APC is designed for high-performance FTTH, telecom, and data center applications. It ensures minimal signal loss and stable optical transmission.
Features
- 12 fiber single mode
- LC APC connector
- Low insertion loss
- High return loss
- Color-coded fibers for easy identification
- ITU-T G.657A1 compliant
Benefits
- Reliable long-distance connectivity
- Optimized for FTTH and telecom networks
- Stable optical performance
- Easy installation and splicing
Applications
- FTTH networks
- Data Centers
- Telecommunication Systems
- Enterprise Fiber Infrastructure
- Optical Distribution Frames (ODF)
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | FLOFPTLCG7102 |
| Fiber Type | Single Mode |
| Connector Type | LC APC |
| Fiber Count | 12 Fibers |
| Standard | ITU-T G.657A1 |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Operating Temperature | -20°C to 70°C |
LC Single Mode Fiber Optic Pigtail APC FAQs
What is the difference between APC and UPC connectors?
APC (Angled Physical Contact) connectors have an 8° angled end-face, resulting in higher return loss and reduced back reflection. UPC (Ultra Physical Contact) connectors have a flat polished end-face with lower return loss than standard PC connectors but higher reflection than APC.
What applications are LC Single Mode APC pigtails used for?
They are widely used in FTTH (Fiber to the Home), telecommunication networks, data centers, and enterprise fiber optic infrastructures for low-loss, high-performance connections.
How long can the pigtail be?
Standard lengths range from 1 meter to 5 meters, but custom lengths can be manufactured to meet specific project requirements.
Which standard does this fiber comply with?
This product is compliant with ITU-T G.657A1 standard for bend-insensitive single-mode fibers.
Can I order this pigtail with specific fiber color coding?
Yes, the 12-fiber pigtail comes with standard color coding, and custom color arrangements can be requested for specialized projects.
