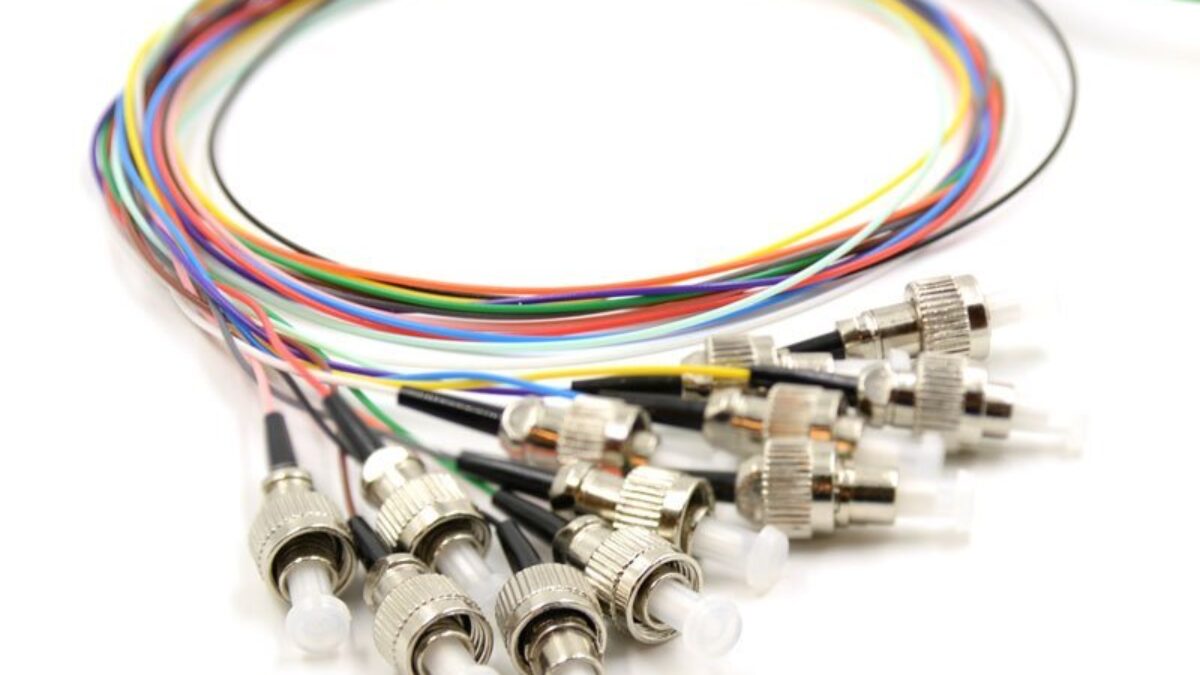

FC Multi Mode Fiber Optic Pigtail UPC OM2 ITU-T G.651 - 12 Fiber
Part Number: FLOFPTFCO202
Category: Fiber Optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The FC Multi Mode Fiber Optic Pigtail UPC OM2 – ITU-T G.651, 12 Fiber is a premium ribbon fiber optic pigtail designed for high-density fusion splicing and fiber termination applications. Featuring OM2 50/125μm multimode fiber with precision FC/UPC connectors, it delivers low insertion loss, stable optical transmission, and reliable performance for LAN, data centers, telecommunications, optical distribution frames, and enterprise fiber optic networks.
- 12-fiber ribbon pigtail with FC/UPC connectors.
- OM2 50/125μm multimode fiber compliant with ITU-T G.651.
- Threaded FC connector for secure and stable connections.
- Precision ceramic ferrules for accurate fiber alignment.
- Low insertion loss and excellent optical performance.
- Factory polished and individually tested.
- Color-coded fibers for easy identification during installation.
- Compatible with ODFs, patch panels, splice closures, and fiber distribution systems.
- Provides reliable multimode optical connectivity.
- Ensures stable low-loss signal transmission.
- Ideal for high-density fiber optic installations.
- Simplifies ribbon fusion splicing.
- Reduces installation time and maintenance costs.
- Suitable for LAN, telecom, and enterprise network applications.
- Local Area Networks (LAN).
- Telecommunication Networks.
- Fiber Optic Distribution Frames (ODF).
- Fiber Patch Panels.
- Data Centers.
- Enterprise Networks.
- Fiber Splicing Closures.
- Campus Backbone Cabling.
| Specification | Details |
|---|---|
| Brand | Fiber Light |
| Product Type | Fiber Optic Pigtail |
| Connector Type | FC/UPC |
| Fiber Count | 12 Fiber |
| Fiber Type | OM2 Multimode (50/125μm) |
| Standard | ITU-T G.651 |
| Configuration | Ribbon Pigtail |
| Connector Ferrule | Ceramic |
| Polish Type | UPC |
| Insertion Loss | ≤0.30 dB |
| Return Loss | ≥35 dB |
| Operating Wavelength | 850 / 1300 nm |
| Cable Jacket | LSZH |
| Operating Temperature | -20°C to +70°C |
FAQ
What is this 12-fiber FC pigtail used for?
It is designed for fusion splicing and fiber termination in ODFs, patch panels, data centers, and enterprise fiber optic networks.
Why choose FC/UPC connectors?
FC connectors feature a threaded coupling mechanism that provides a secure connection and excellent vibration resistance, making them suitable for telecom and industrial environments.
What are the advantages of OM2 multimode fiber?
OM2 fiber supports high-speed optical communication over short to medium distances and is widely used in LANs, enterprise networks, and data centers.
Are Fiber Light pigtails factory tested?
Yes. Every Fiber Light fiber optic pigtail is factory polished and individually tested to ensure low insertion loss, high optical performance, and reliable operation.
