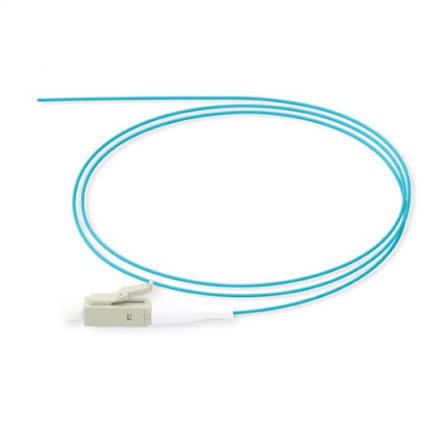

Fiber Pigtail LC UPC to Unterminated Simplex OM3 LSZH
Part Number: FLOFPTLCO301
Category: Fiber Optic Pigtail
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The Fiber Pigtail LC UPC to Unterminated, Simplex, OM3, LSZH is a factory-terminated multimode fiber optic pigtail designed for fusion splicing and reliable optical termination. Featuring a precision LC/UPC connector, OM3 50/125μm multimode fiber, and a low-smoke zero-halogen (LSZH) jacket, it provides low insertion loss, excellent optical performance, and dependable connectivity for data centers, LANs, FTTH, ODFs, and enterprise fiber optic networks.
- LC/UPC connector to unterminated fiber.
- Simplex OM3 50/125μm multimode fiber.
- LSZH jacket for enhanced fire safety.
- Precision ceramic ferrule for accurate alignment.
- Low insertion loss and high return loss.
- Factory polished and individually tested.
- Excellent mechanical durability.
- Suitable for fusion splicing and permanent installations.
- Provides stable high-speed optical transmission.
- Ensures reliable multimode network performance.
- Reduces installation time and maintenance costs.
- Supports high-density fiber optic installations.
- Ideal for modern enterprise and data center applications.
- Offers long-term durability and consistent performance.
- Data Centers.
- Local Area Networks (LAN).
- FTTH Networks.
- Optical Distribution Frames (ODF).
- Fiber Patch Panels.
- Enterprise Networks.
- Telecommunication Systems.
- Fusion Splicing Applications.
| Specification | Details |
|---|---|
| Product Type | Fiber Optic Pigtail |
| Connector Type | LC/UPC |
| Fiber Configuration | Simplex |
| Fiber Type | OM3 Multimode (50/125μm) |
| Fiber Standard | ITU-T G.651 |
| Cable Jacket | LSZH |
| Connector Ferrule | Ceramic |
| Polish Type | UPC |
| Insertion Loss | ≤0.30 dB |
| Return Loss | ≥35 dB |
| Operating Wavelength | 850 / 1300 nm |
| Operating Temperature | -20°C to +70°C |
FAQ
What is this LC OM3 fiber pigtail used for?
It is used for fusion splicing and fiber termination in data centers, LANs, ODFs, patch panels, and enterprise fiber optic networks.
Why choose an LC/UPC connector?
LC connectors provide a compact high-density design, while the UPC polish minimizes insertion loss and improves optical performance.
What are the advantages of OM3 multimode fiber?
OM3 fiber supports high-speed transmission for 10G, 40G, and 100G Ethernet over short distances, making it ideal for modern data centers.
Is this pigtail factory tested?
Yes. Every Fiber Light LC OM3 Fiber Optic Pigtail is factory polished and individually tested to ensure low insertion loss, high reliability, and consistent optical performance.
