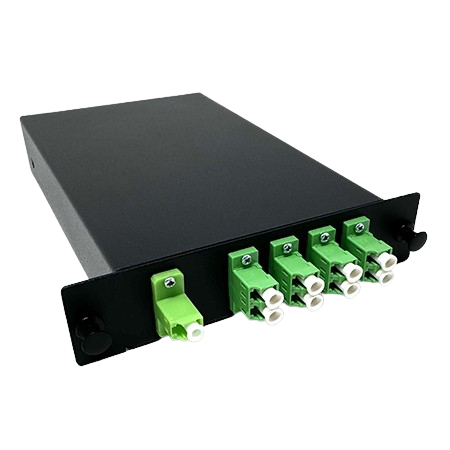

PLC 1x8 Splitter LGX Cassette LC/APC Single Mode
Part Number: FLPLC-1008-LGX-LC-APC-SM
Category: Fiber Optic Splitter
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The PLC 1 x 8 Splitter Standard LGX Cassette is a passive optical device that divides one input optical signal into eight outputs with stable performance and low insertion loss. It is widely used in FTTH, FTTx, and telecom networks, offering reliable signal distribution in an LGX cassette format designed for easy installation and maintenance.
- 1 x 8 optical splitting ratio.
- Standard LGX cassette design.
- LC/APC connectors for low back reflection.
- Single mode fiber compatibility.
- Low insertion loss performance.
- High return loss and stable output.
- Plug-and-play installation.
- Rack and ODF compatible design.
- Efficient distribution of optical signals to 8 outputs.
- Supports scalable FTTH/FTTx deployment.
- Easy integration into fiber distribution frames.
- Reduces installation time and maintenance cost.
- Compact LGX cassette saves rack space.
- Ensures stable long-term optical performance.
- FTTH (Fiber to the Home) networks.
- FTTx access networks.
- Telecommunication backbone systems.
- ODF (Optical Distribution Frames).
- CATV fiber distribution systems.
- Data center optical infrastructure.
| Specification | Details |
|---|---|
| Brand | Fiber Light |
| Splitter Type | PLC Splitter |
| Configuration | 1 x 8 |
| Module Type | LGX Cassette |
| Fiber Type | Single Mode |
| Connector Type | LC/APC |
| Insertion Loss | ≤ 10.5 dB |
| Return Loss | ≥ 55 dB |
| Operating Wavelength | 1260 ~ 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
FAQ
What is a 1 x 8 PLC splitter used for?
It splits one optical input into eight output channels for fiber distribution networks.
Is it suitable for FTTH applications?
Yes, it is widely used in FTTH and FTTx fiber networks.
What connector type is used?
It uses LC/APC connectors for low reflection and stable performance.
Can it be mounted in ODF racks?
Yes, the LGX cassette format is fully compatible with ODF and rack systems.
