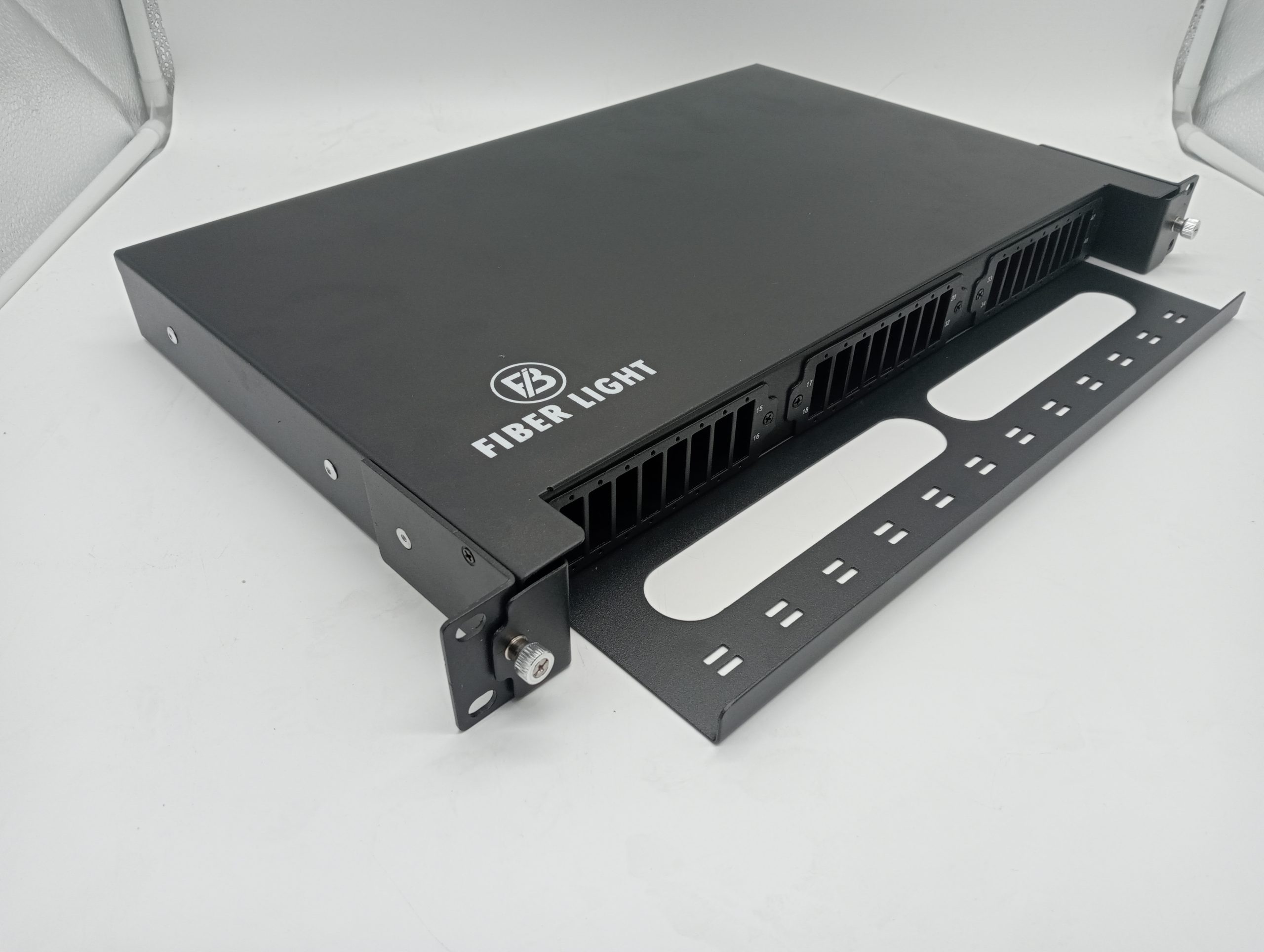

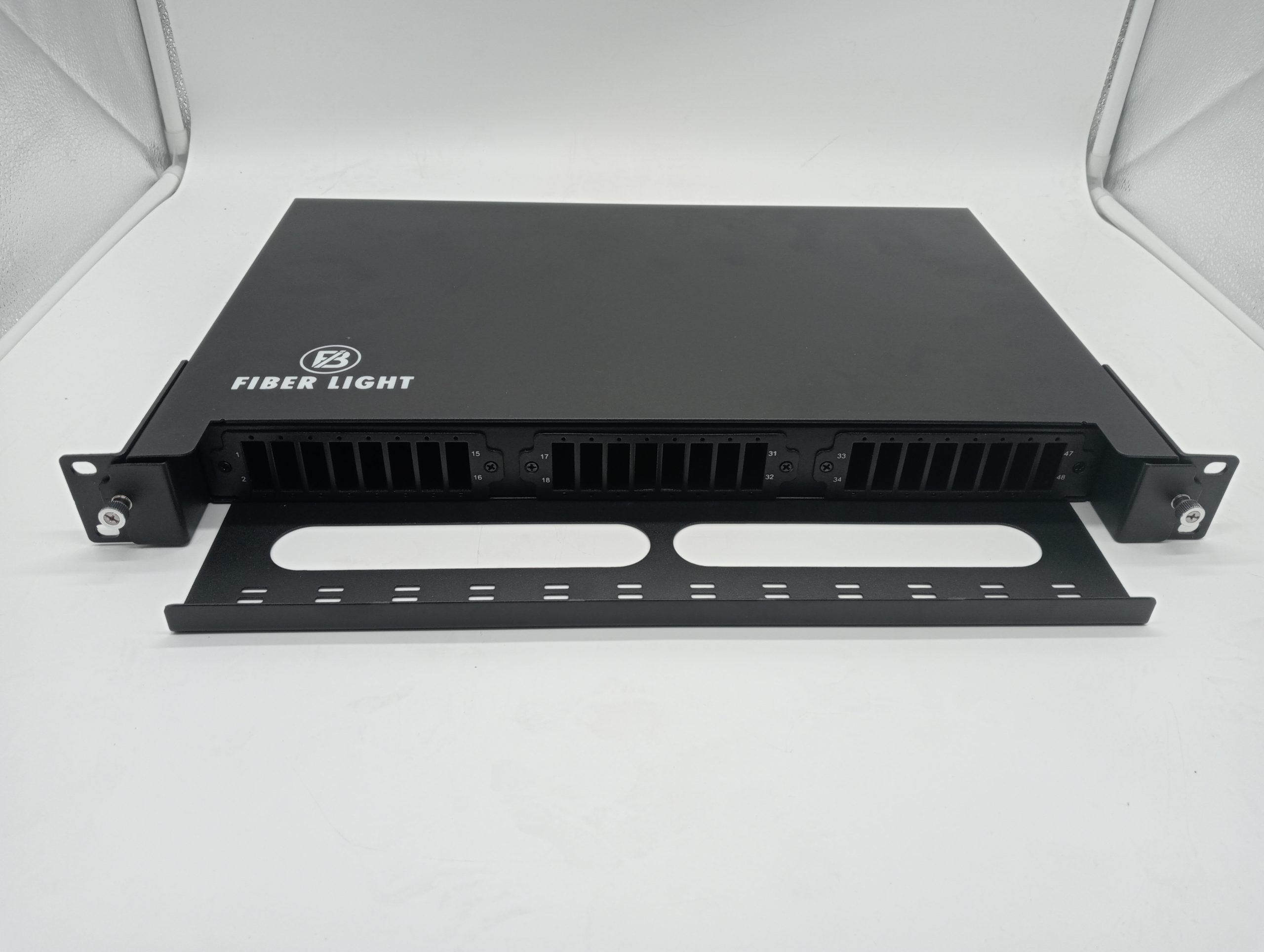

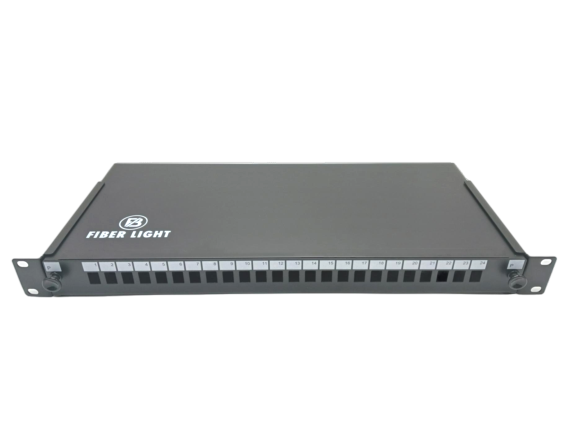

Fiber Optic Rack-Mount Distribution Frame – Simplex (ODF-RS24) 1U 19″ Standard Design For ST, SC, LC & FC Adapters (Sliding Rail)
Part Number: FLOFPN0112xxSXES
Category: Fiber Optic ODF
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview
ODF-RS24 Simplex is a 19-inch rack-mounted optical distribution frame designed for efficient fiber cable management, termination, and patching in telecom and enterprise networks.
It provides a structured solution for organizing fiber connections while ensuring protection of spliced fibers and maintaining proper bend radius for optimal signal performance.
Features
- 1U 19-inch standard rack design
- Supports ST, SC, LC & FC adapters

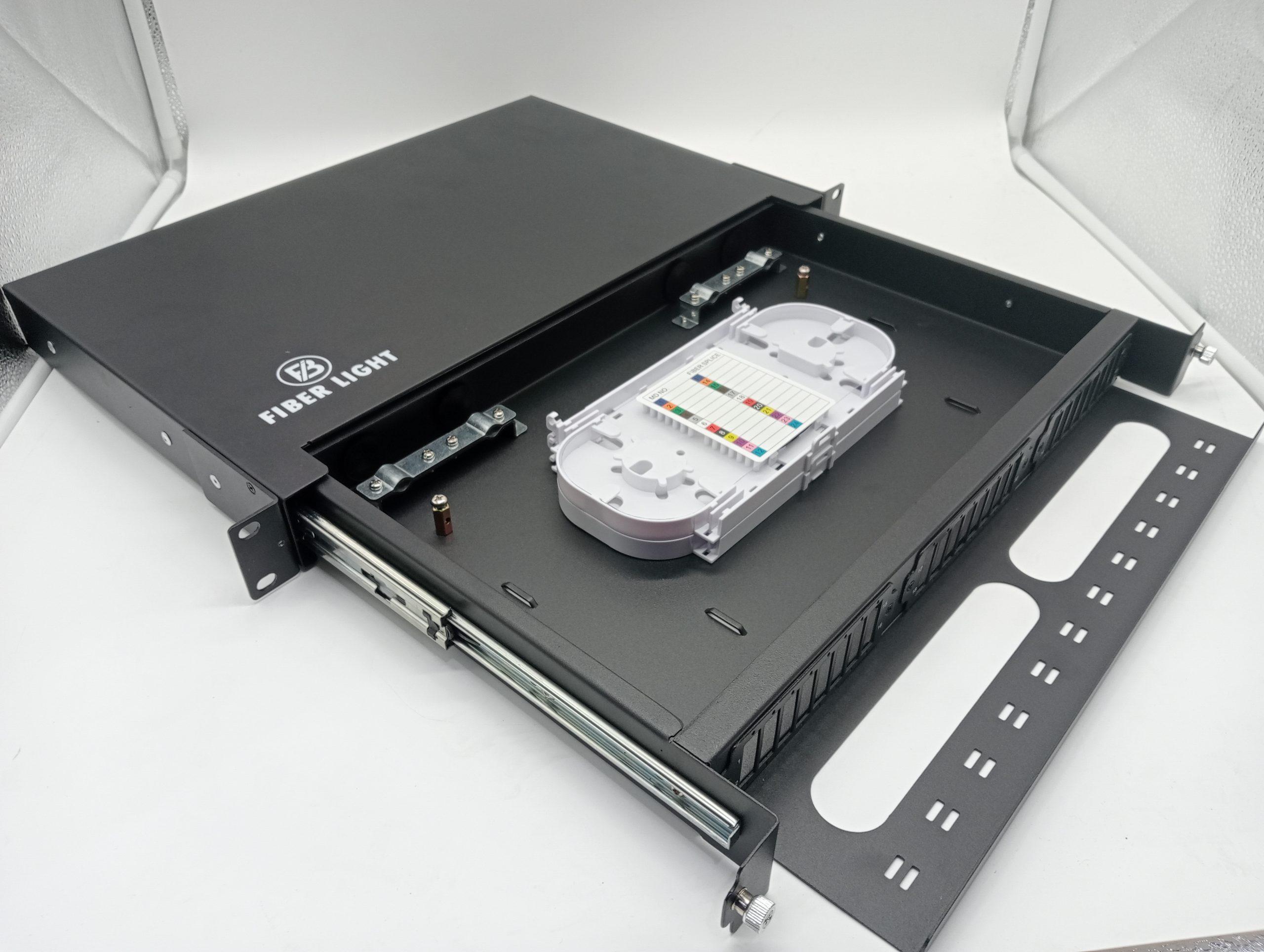

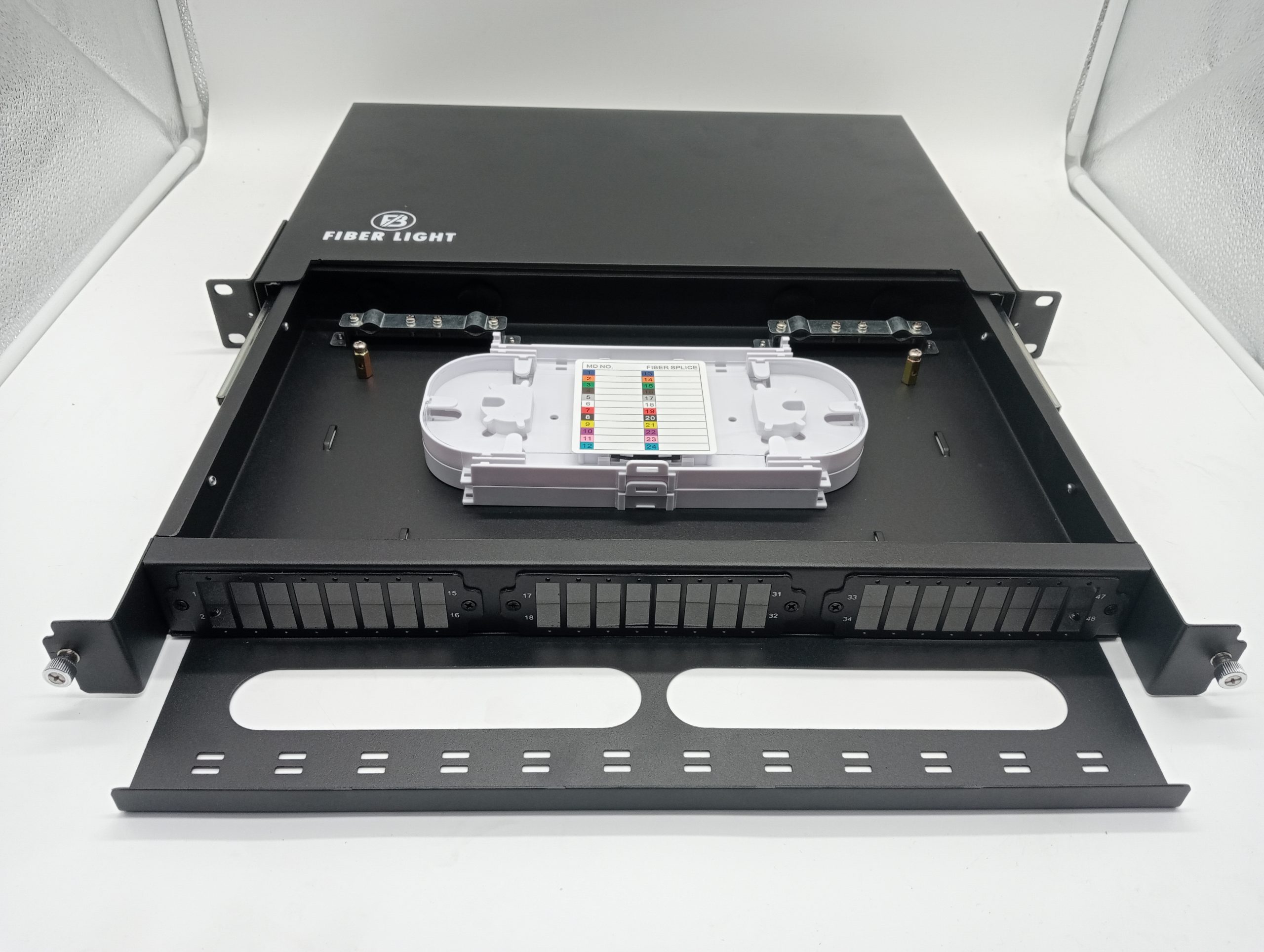

- Sliding rail drawer for easy access
- High-density fiber management
- Cold-roll steel construction
- Electrostatic powder-coated finish
- Efficient fiber routing and protection
- Suitable for simplex patching systems
Applications
- Telecommunication networks
- FTTH / FTTx systems
- Data centers
- Enterprise LAN/WAN infrastructure
- Fiber optic distribution rooms
Technical Specifications
| Parameter | Details |
|---|---|
| Model | ODF-RS24 Simplex |
| Rack Size | 19 Inch Standard |
| Height | 1U |
| Fiber Capacity | 24 / 48 Fibers |
| Adapter Types | SC / LC / ST / FC |
| Material | Cold-Roll Steel |
| Finish | Electrostatic Powder Coating |
| Installation | Rack Mount with Sliding Rail |
| Application | Indoor Fiber Management |
FAQs
What is a simplex ODF used for?
It is used to manage single-fiber connections in structured fiber optic networks for termination and patching.
What is the advantage of sliding rail design?
Sliding rail allows easy access for fiber installation, maintenance, and splicing without removing the whole unit.
Which adapters are supported?
It supports ST, SC, LC, and FC adapters depending on the front panel configuration.
