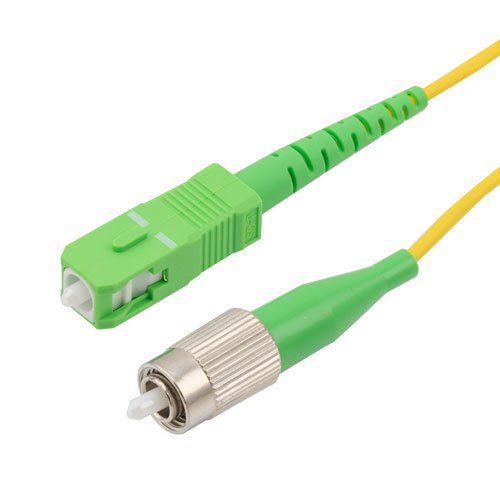

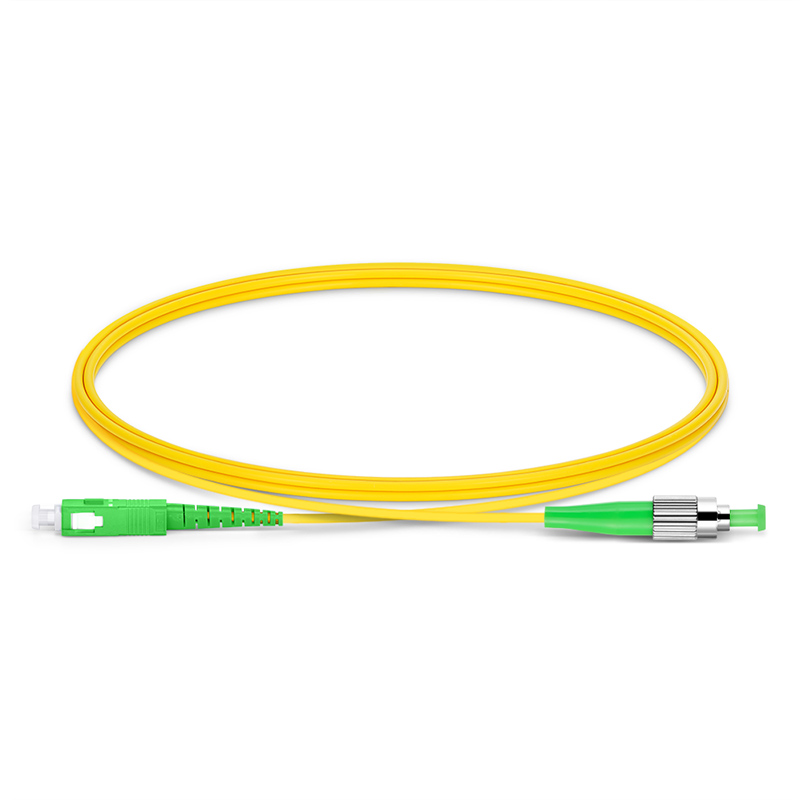

LSZH Fiber Optic Patch Cord SM G.657A2 9/125 SC-APC/FC-APC Simplex 2.0 mm
Part Number: FLPCG72SX-SCA-000-FCA-LS
Category: Patch Cord Single Mode
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
The FC/APC to SC/APC Fiber Optic Patch Cord is a high-precision single-mode interconnect solution designed for modern optical communication systems requiring ultra-low reflection and stable long-distance transmission.
It uses angled physical contact (APC) polishing on both connectors to significantly reduce back reflection, making it suitable for high-sensitivity optical systems such as GPON, FTTH, and CATV networks.
This patch cord is widely deployed in telecom infrastructure, data centers, optical distribution frames (ODF), and high-speed backbone networks where reliability and signal integrity are critical.
The hybrid connector design (FC to SC) allows seamless integration between threaded FC interfaces and push-pull SC ports, offering installation flexibility in mixed network environments.
Benefits
- Ultra-low back reflection using APC (Angled Physical Contact) technology for stable and clean signal transmission.
- Low insertion loss ensures efficient optical power transfer and high network performance.
- High reliability for long-distance communication in telecom and FTTH networks.
- Bend-insensitive G.657.A2 fiber allows installation in tight spaces without performance degradation.
- Hybrid FC/APC to SC/APC design enables easy integration between different network devices.
- Reduces the need for additional adapters, improving installation flexibility and reducing system complexity.
- High mechanical strength with aramid yarn reinforcement for durability and pull resistance.
- LSZH jacket option enhances safety by minimizing smoke and toxic emissions in case of fire.
- Suitable for high-density environments such as data centers, ODF racks, and telecom rooms.
- Stable performance under wide temperature ranges and challenging environmental conditions.
Features
- Hybrid connectors: FC/APC to SC/APC for flexible network integration
- Ultra-low back reflection using 8° angled APC polishing
- Low insertion loss for high-quality signal transmission
- High return loss ensuring stable optical performance
- Single-mode fiber compliant with ITU-T G.657.A2 / G.652.D standards
- Bend-insensitive fiber for tight installation routing
- LSZH or PVC jacket options for environmental protection
- High durability with aramid yarn reinforcement
- Precision ceramic ferrules for accurate fiber alignment
- Long service life with stable repeatability performance
Applications
- FTTH (Fiber to the Home) access networks
- GPON / EPON passive optical networks
- Telecommunication backbone systems
- Data centers and cloud infrastructure
- Optical Distribution Frames (ODF) and patch panels
- Fiber optic test and measurement systems
- CATV broadband distribution networks
- Enterprise LAN/WAN fiber interconnections
Technical Specifications
| Parameter | Details |
|---|---|
| Connector A | FC/APC (Threaded, 8° angled polish) |
| Connector B | SC/APC (Push-pull, 8° angled polish) |
| Fiber Type | Single Mode (9/125 µm) |
| Fiber Standard | ITU-T G.657.A2 / G.652.D compatible |
| Operating Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60–65 dB (APC) |
| Cable Jacket | LSZH / PVC |
| Cable Diameter | 2.0 mm |
| Tensile Strength | ≥ 100–200 N |
| Durability | ≥ 1000 mating cycles |
| Temperature Range | -40°C to +85°C |
| Length Options | 1m / 2m / 3m / Custom |
