1FO Double Sheath Access Network Drop Fiber Optical Cable for Vertical Cabling
Category: Fiber Optic Cables
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview

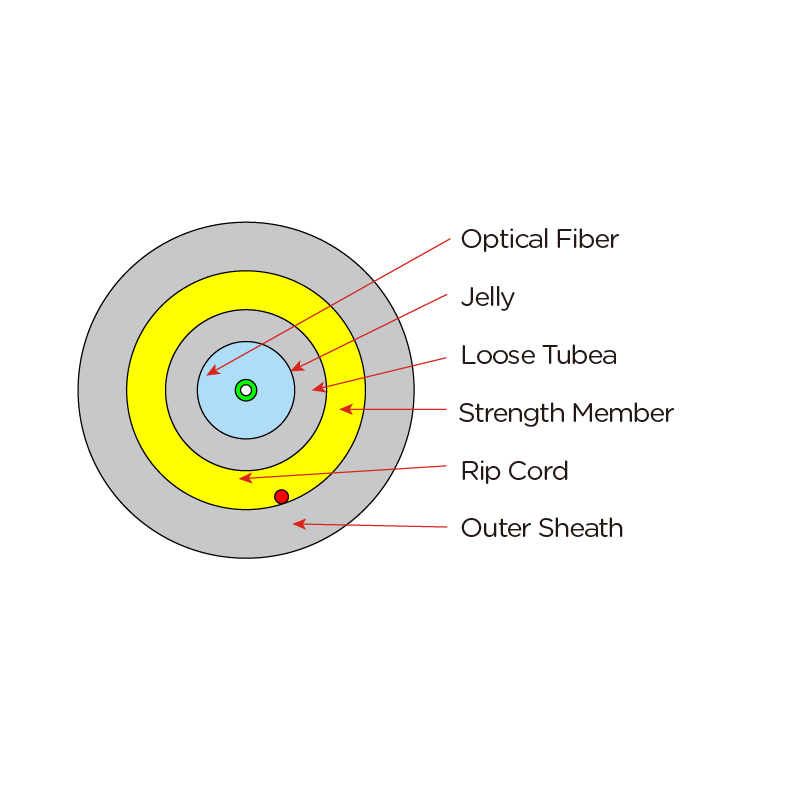

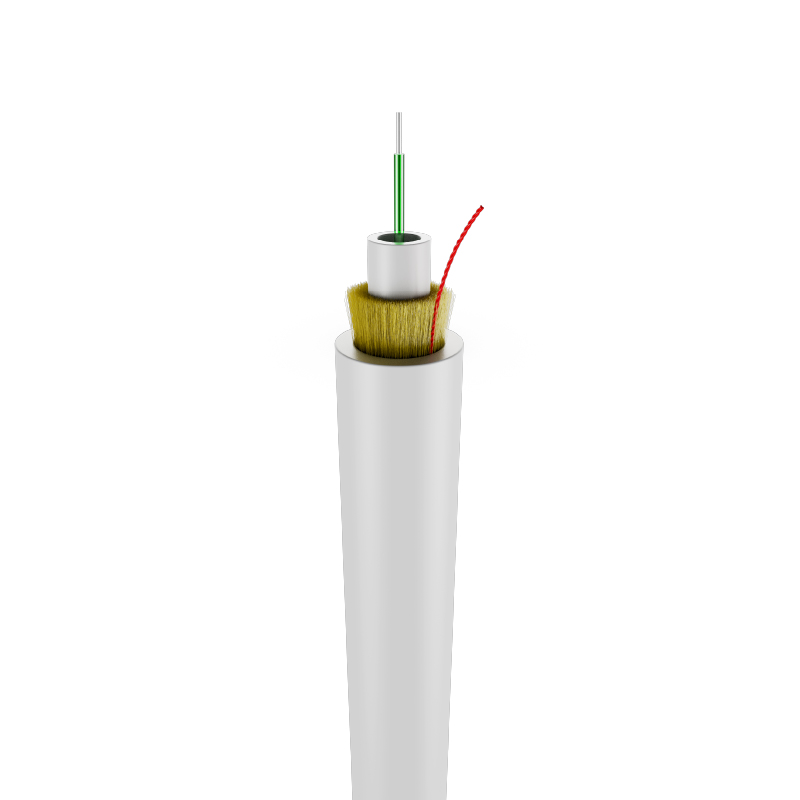

1FO double sheath drop fiber optic cable is designed for FTTH access networks and vertical cabling applications. It is optimized for single-fiber connectivity in building risers and last-mile distribution.
The dual jacket structure provides enhanced protection for indoor-outdoor transition environments.
Features
- 1 fiber optic core (1FO)
- Double sheath protection design
- G.657A1/A2 bend-insensitive fiber
- High tensile strength for vertical installation
- LSZH / PE jacket options
- Moisture and abrasion resistant
- Suitable for FTTH last-mile networks
Applications
- Vertical cabling in high-rise buildings
- FTTH access network drops
- Indoor-outdoor riser systems
- Subscriber connections
- Telecom distribution networks
Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Count | 1 Core (1FO) |
| Fiber Type | G.657A1 / G.657A2 Single Mode |
| Structure | Drop Cable - Double Sheath |
| Application | Vertical Cabling / FTTH Access |
| Jacket | Double LSZH / PE |
| Installation | Indoor / Outdoor / Riser |
| Operating Temperature | -40°C to +70°C |
FAQs
What does 1FO mean?
It means the cable contains one optical fiber core.
Why double sheath?
It provides extra mechanical protection for vertical and harsh installations.
Where is it used?
It is used in FTTH networks, especially vertical cabling in buildings.
