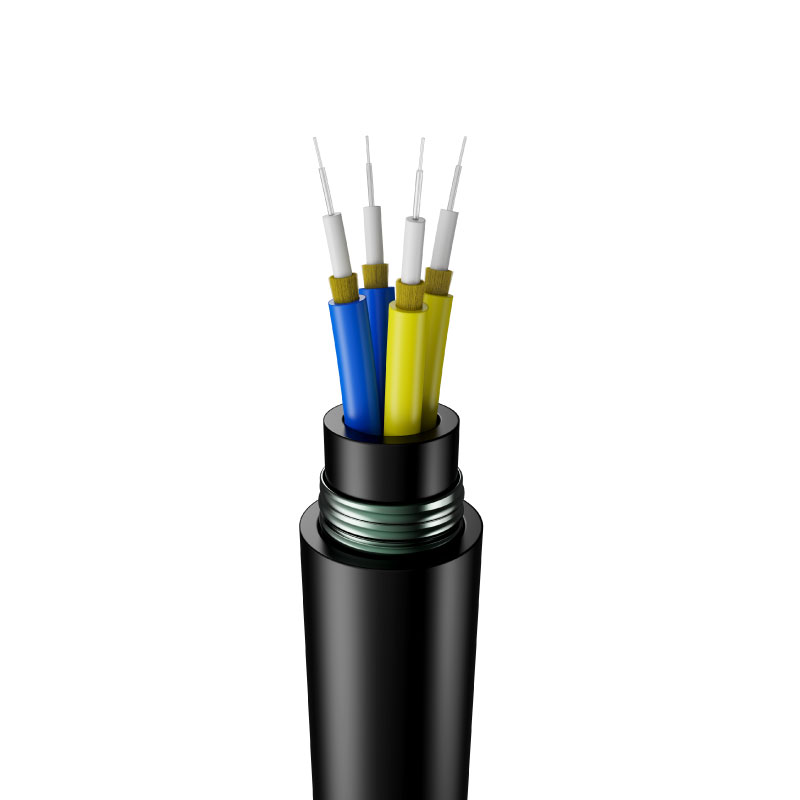

FTTA Armoured Multi-Purpose Break-out Fiber Optical Cable GYBFJH53-4FO
Category: Fiber Optic Cables
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview
GYBFJH53-4FO FTTA armoured breakout fiber optic cable is designed for outdoor telecom base station applications. It provides reliable and protected fiber connections between antennas and radio units.
The armored structure ensures high mechanical strength, making it suitable for harsh outdoor environments and 5G infrastructure.
Features
- 4 core breakout fiber design
- Steel armoured protection layer
- G.657 bend-insensitive fiber
- High tensile and crush resistance
- Outdoor UV resistant jacket
- Easy installation in FTTA systems
- Stable low-loss transmission
Applications
- FTTA base station networks
- Telecom tower connections
- RRU to antenna links
- 5G outdoor infrastructure
- Harsh environment installations
Technical Specifications
| Parameter | Details |
|---|---|
| Model | GYBFJH53-4FO |
| Fiber Count | 4 Core |
| Fiber Type | G.657A1 / G.657A2 Single Mode |

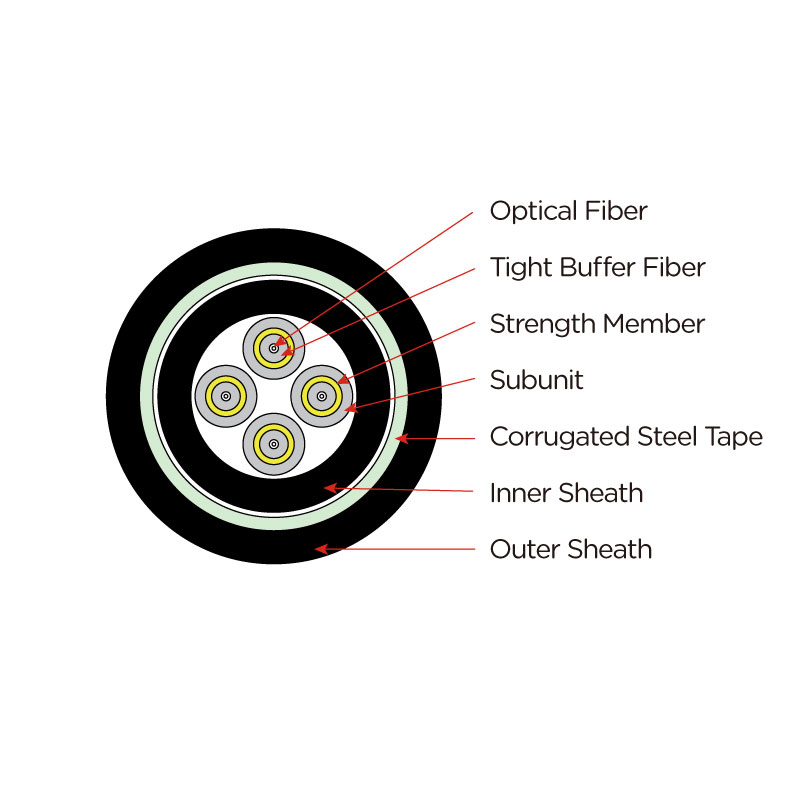

| Structure | Armoured Breakout Cable |
| Application | FTTA Base Station |
| Protection | Steel Armouring |
| Jacket | UV Resistant PE |
| Installation | Outdoor / Telecom Towers |
| Operating Temperature | -40°C to +70°C |
FAQs
What is breakout armoured cable?
It is a cable where each fiber is individually protected and the whole cable is reinforced with armouring.
Where is it used?
It is used in FTTA base stations and telecom tower installations.
Why is armouring important?
It protects the cable from mechanical damage, crushing, and harsh outdoor conditions.
