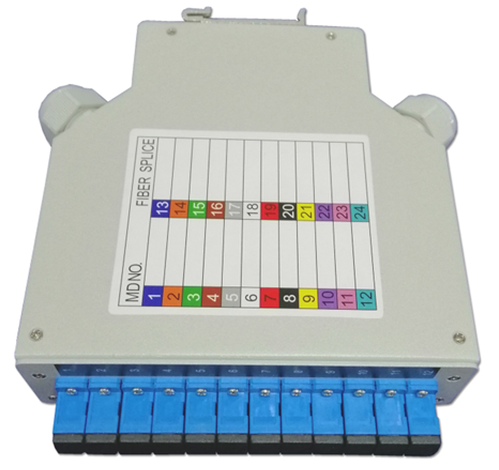

DIN rail aluminum optical box loaded with 12 SC Simplex
Part Number: FLDIN-00
Category: Mounted fiber optic terminal box
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
DIN-00 DIN Rail Mounted Fiber Optic Terminal Box with durable lightweight aluminum housing, internal ABS plastic blue splice tray, 12 SC simplex adapter ports, 4 cable entry ports, and up to 24-core splicing capacity. Ideal for fiber connection, distribution, telecom, FTTH, FTTx, and industrial DIN rail mounting applications.
- Reasonable compact design with lightweight aluminum housing.
- Electrostatic powder painting for enhanced durability (Grey or Black).

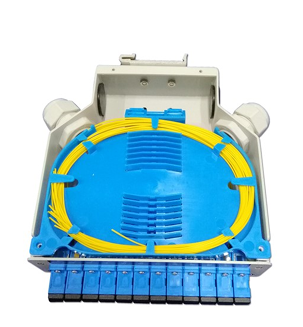

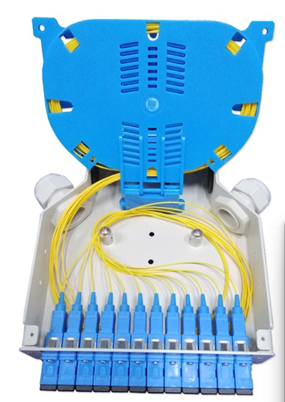

- Rotatable ABS plastic blue splice tray for easy optical fiber routing.
- Supports up to 24-core fiber splicing capacity.
- Pre-loaded with 12 SC Simplex adapter ports (compatible with FC, ST, LC, SC).
- Equipped with 4 cable entry ports for efficient cable management.
- Designed specifically for standard 35mm DIN rail mounting.
- Ideal for fiber connection and distribution in telecom and FTTx networks.
- Provides compact and reliable protection for optical fiber connections.
- Lightweight aluminum structure ensures long-term strength and durability.
- Rotatable splice tray simplifies installation and maintenance access.
- Standard DIN rail mounting saves space in industrial control cabinets and racks.
- Flexible port options support various fiber optic connector types.
- Organized internal cable routing prevents fiber strain and loss.
- DIN Rail Mounted Fiber Optic Enclosures.
- FTTH (Fiber to the Home) & FTTx Networks.
- Telecommunication Distribution Boxes.
- Industrial Automation & Control Cabinets.
- Optical Fiber Patching & Distribution.
- CATV & Local Area Networks (LAN).
| Specification | Details |
|---|---|
| Product Model | DIN-00 |
| Product Type | DIN Rail Mounted Fiber Optic Terminal Box |
| Housing Material | Aluminum Box with Powder Coating |
| Internal Tray Material | ABS Plastic (Blue, Rotatable) |
| Splicing Capacity | Max. 24 Fibers |
| Adapter Ports | 12 SC Simplex (Supports FC, ST, LC, SC) |
| Cable Ports | 4 Ports |
| Dimensions (L x W x H) | 133 x 136.6 x 35 mm |
| Installation Method | DIN Rail Mounted |

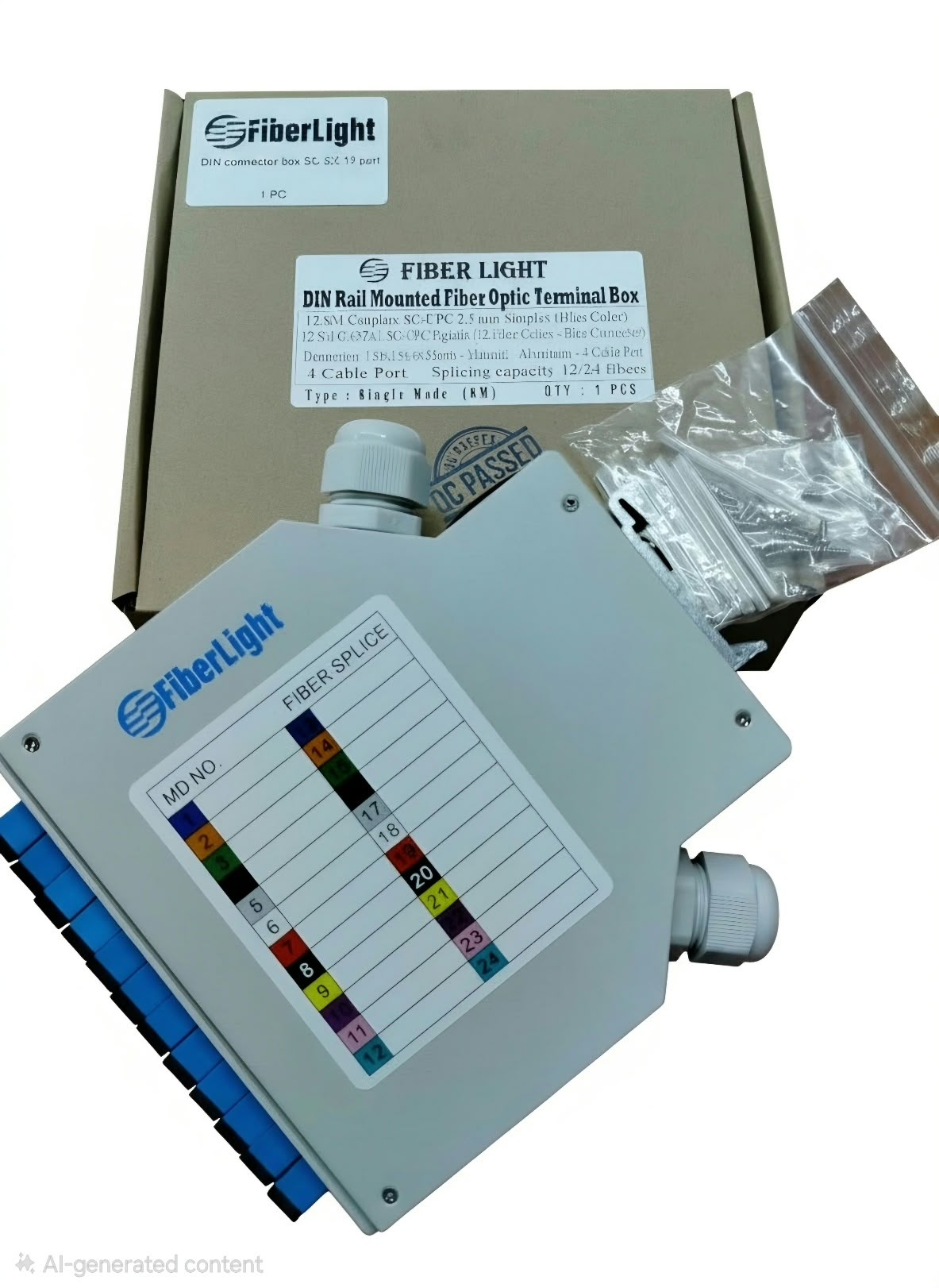

| Included Accessories | Heat shrink protection sleeves, Cable ties (3*120mm) |
FAQ
What is the maximum splicing capacity of DIN-00?
The DIN-00 terminal box supports up to 24 fiber optic splices using its internal ABS plastic splice tray.
What material is used for the DIN-00 enclosure?
It is constructed from lightweight aluminum with an electrostatic powder painting finish, combined with an internal blue ABS plastic splice tray.
How is this terminal box installed?
It features a rear mounting clip designed specifically for standard 35mm DIN rail installations inside industrial cabinets and enclosures.
What accessories are included with the DIN-00?
It includes heat shrinkable protection sleeves (45*2.6*1.2mm) and white cable ties (3*120mm) as standard accessories.
What is the advantage of heat shrinkable sealing?
Heat shrinkable sealing creates a permanent, highly reliable waterproof seal that protects fiber splices from moisture, dust, and environmental contaminants.
Why is polycarbonate housing used?
Polycarbonate offers excellent mechanical strength, UV resistance, corrosion resistance, and impact protection, making it ideal for outdoor fiber optic applications.
Where can this joint box be installed?
The closure is suitable for pole-mounted, wall-mounted, aerial, underground duct, and direct burial fiber optic installations.
