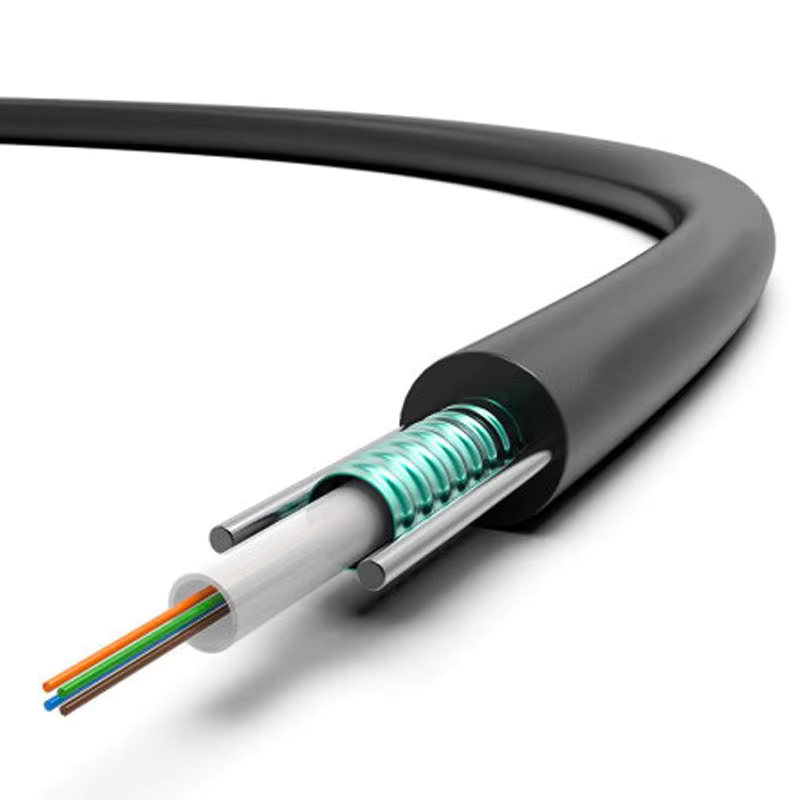

Fiber Optic Outdoor Cable – 24 Core G652D Armored
Part Number: FLFOCODD2024CTSWASTAHD
Category: Outdoor Cable
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
The 24 Core G652D Armored Outdoor Fiber Optic Cable is designed for reliable and stable optical transmission in demanding outdoor environments. It contains 24 single-mode G.652D optical fibers and features an armored construction that provides enhanced mechanical protection against crushing, impact, tension, rodents, and external environmental stresses. The cable is suitable for telecommunication, FTTH, FTTx, access, distribution, and backbone fiber optic networks.
- 24-core single-mode optical fiber construction.
- ITU-T G.652D compliant optical fiber.
- Armored construction for enhanced mechanical protection.
- Excellent resistance to crushing, impact, and tensile forces.
- Suitable for demanding outdoor environments.
- Water-blocking protection for improved moisture resistance.
- Low attenuation and reliable long-distance transmission.
- Suitable for duct and direct burial installations.
- Robust construction for long-term outdoor deployment.
- PE/HDPE outer sheath for outdoor protection.
- 24 fibers provide increased network capacity.
- Outdoor Telecommunication Networks.
- FTTH and FTTx Networks.
- Access and Distribution Networks.
- Optical Backbone Networks.
- Duct Installation.
- Direct Burial Applications.
- Campus and Enterprise Networks.
- Fiber-to-the-Building Connections.
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Fiber Optic Cable |
| Fiber Count | 24 Fibers |
| Fiber Type | Single Mode |
| Fiber Standard | ITU-T G.652D |
| Fiber Diameter | 9/125 μm |
| Cable Structure | GYXTW Armored Outdoor Construction |
| Armor | Metallic Steel Tape Armor |
| Outer Sheath | PE / HDPE |
| Installation | Duct, Direct Burial & Outdoor |
| Operating Temperature | -40°C to +70°C |
| Fiber Attenuation |
≤0.36 dB/km @1310 nm ≤0.22 dB/km @1550 nm |
FAQs
What is a 24 Core G652D Armored Outdoor Fiber Optic Cable?
It is an outdoor armored fiber optic cable containing 24 single-mode G.652D optical fibers, designed for reliable optical transmission and enhanced mechanical protection.
What is G.652D fiber?
G.652D is a single-mode optical fiber standard commonly used in telecommunications and long-distance optical transmission networks.
What is the purpose of the armored construction?
The armored construction provides additional protection against crushing, impact, tension, rodents, and other mechanical stresses during outdoor installation.
Where can this cable be installed?
The cable is suitable for outdoor applications including duct, direct burial, access, distribution, FTTH, FTTx, and telecommunication networks.
What is the advantage of 24 fibers?
The 24-fiber configuration provides higher fiber capacity for access, distribution, backbone, and other telecommunication network applications while maintaining a compact outdoor cable construction.
