Fiber Optic Outdoor Cable GYXTW – 8 Core G652D Armored
Category: Fiber Optic Cables
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview

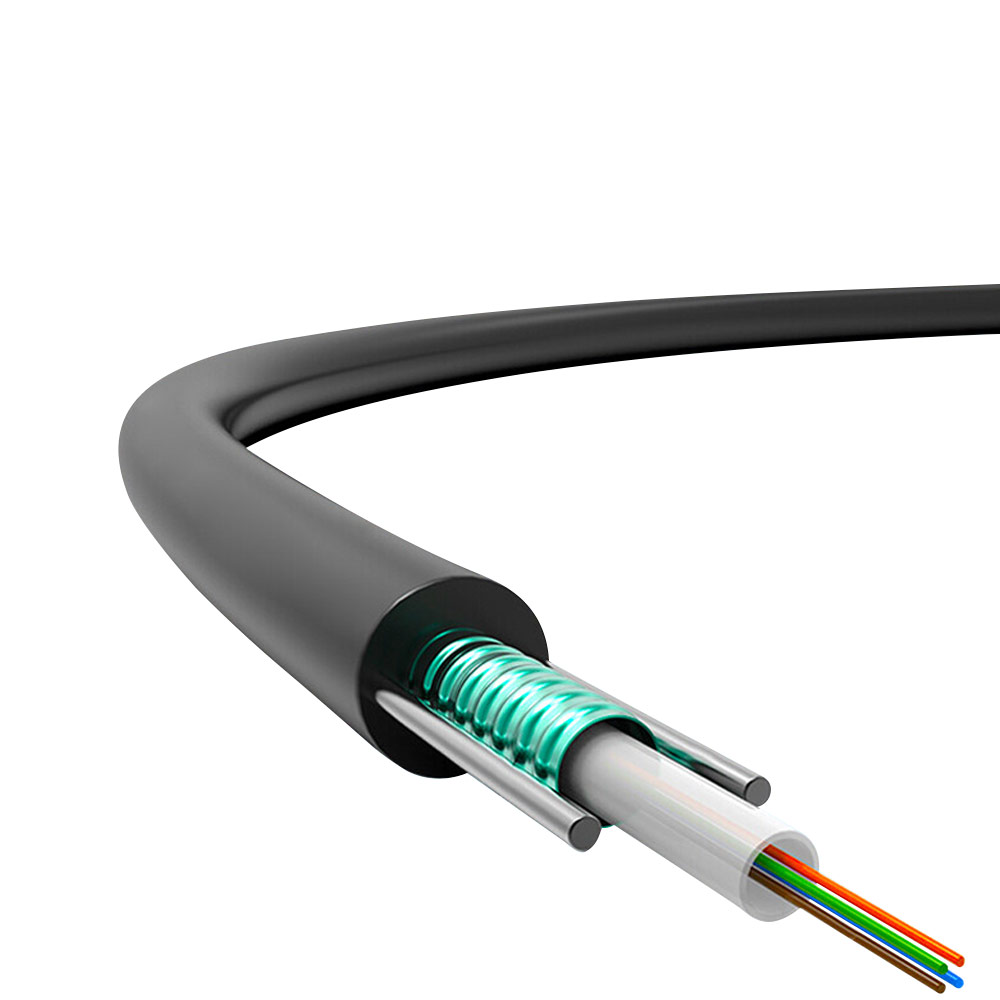

The GYXTW 8 core fiber optic cable is a rugged outdoor cable designed with a central loose tube structure, combining steel wire strength members and corrugated steel tape armor for maximum protection.
It uses G.652D single-mode fibers to ensure reliable long-distance transmission with low attenuation, making it ideal for backbone and access networks.
The HDPE outer jacket provides excellent resistance to UV, moisture, and harsh environmental conditions, ensuring long service life.
Features
- 8 core G652D single-mode fiber
- Central loose tube with water-blocking gel
- Steel tape armored (STA) protection
- Dual steel wire strength members
- HDPE outer sheath for outdoor durability
- High tensile strength and crush resistance
- Waterproof and UV resistant
- Suitable for harsh environments
Applications
- Outdoor duct installations
- Aerial cable deployment
- Direct burial networks
- Telecommunication backbone systems
- FTTH and access networks
- Campus and industrial networking
Technical Specifications
| Specification | Details |
|---|---|
| Model | GYXTW |
| Fiber Type | G.652D Single Mode (9/125 µm) |
| Core Count | 8 Core |
| Structure | Central Loose Tube |
| Armoring | Steel Tape Armored |
| Strength Member | Steel Wire |
| Outer Jacket | HDPE (Black) |
| Installation | Duct / Aerial / Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Tensile Strength | Up to 3000 N |
| Crush Resistance | Up to 3000 N/100mm |
FAQs
What is GYXTW fiber cable?
It is an outdoor armored fiber optic cable with a central loose tube and dual protection using steel wire and steel tape.
What is G.652D fiber used for?
It is used for long-distance communication due to low attenuation and high performance.
Can this cable be installed underground?
Yes, it supports direct burial, duct, and aerial installations.
Why is steel armor important?
It protects the cable from mechanical damage, crushing, and rodents.
Is it suitable for harsh environments?
Yes, the HDPE jacket and waterproof design make it ideal for outdoor use.
