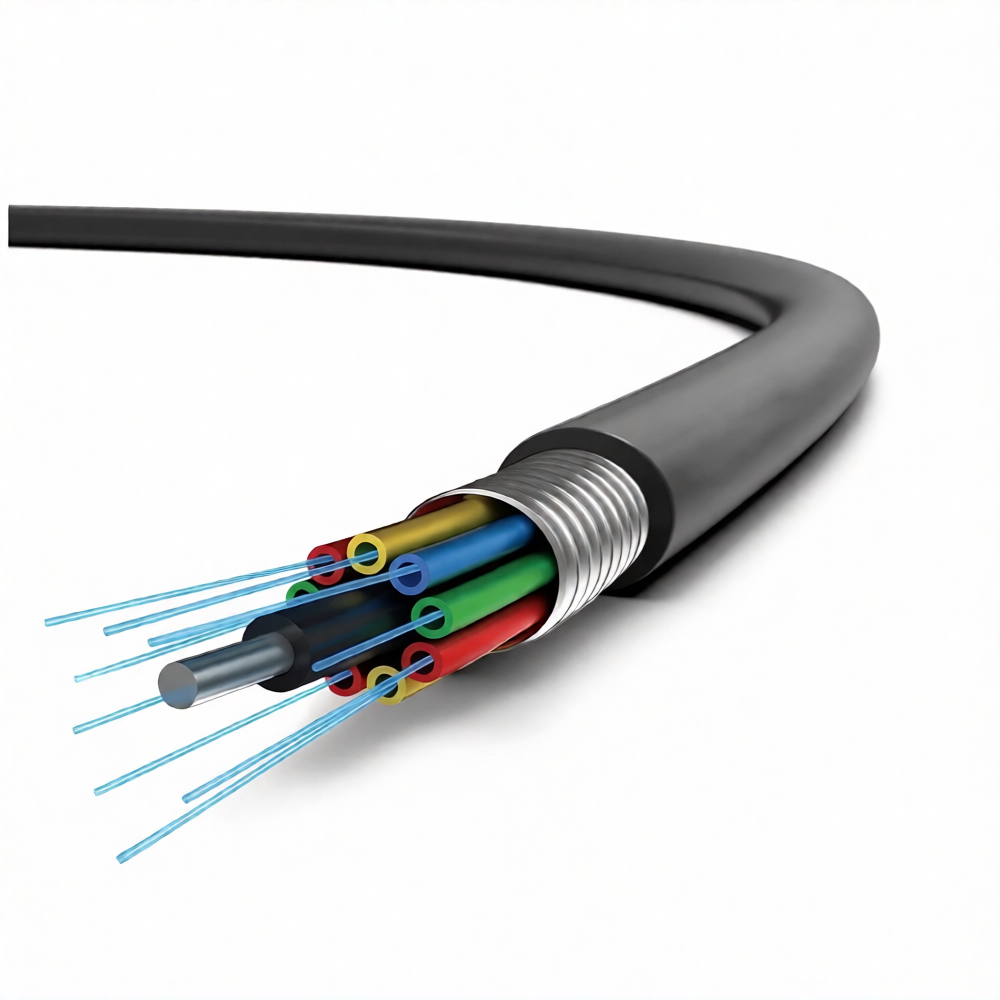

Fiber Optic Outdoor Cable GYXTW – 24 Core G652D Armored
Category: Fiber Optic Cables
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview

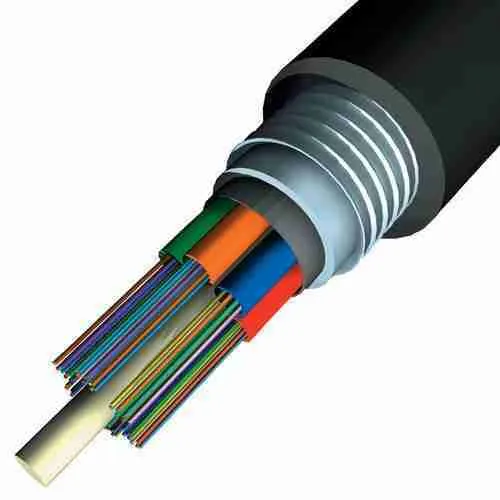

The GYXTW 24 core fiber optic cable is a high-capacity outdoor cable designed for backbone and long-distance communication networks.
It uses a central loose tube structure with G.652D single-mode fibers to ensure stable, low-loss transmission across extended distances.
The cable is reinforced with steel wire and steel tape armor, providing excellent mechanical protection against crushing, rodent damage, and harsh environmental conditions.
Features
- 24 core G652D single-mode fiber
- Central loose tube gel-filled design
- Steel tape armored (STA) protection
- Steel wire strength members
- High crush and tensile resistance
- HDPE outer jacket for UV protection
- Waterproof and outdoor durable structure
- Suitable for long-distance transmission
Applications
- Telecom backbone networks
- Outdoor duct installations
- Aerial fiber deployments
- Direct burial systems
- FTTH and FTTx networks
- Large campus infrastructure
- Data center interconnection
Technical Specifications
| Specification | Details |
|---|---|
| Model | GYXTW |
| Fiber Type | G.652D Single Mode (9/125 µm) |
| Core Count | 24 Core |
| Structure | Central Loose Tube |
| Armoring | Steel Tape Armored |
| Strength Member | Steel Wire |
| Outer Jacket | HDPE (Black) |
| Installation | Duct / Aerial / Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Tensile Strength | Up to 3000 N |
| Crush Resistance | Up to 3000 N/100mm |
FAQs
What is GYXTW 24 core cable?
It is a high-capacity outdoor fiber optic cable designed for backbone communication networks with 24 optical fibers.
What makes this cable durable?
The steel tape armor and steel wire reinforcement provide strong protection against mechanical stress and environmental damage.
Where can it be installed?
It can be installed in ducts, aerial systems, and direct burial applications.
Is it suitable for long distance?
Yes, G.652D fiber supports long-distance, low-loss transmission.
Is it waterproof?
Yes, it has water-blocking gel and HDPE outer jacket for full outdoor protection.
