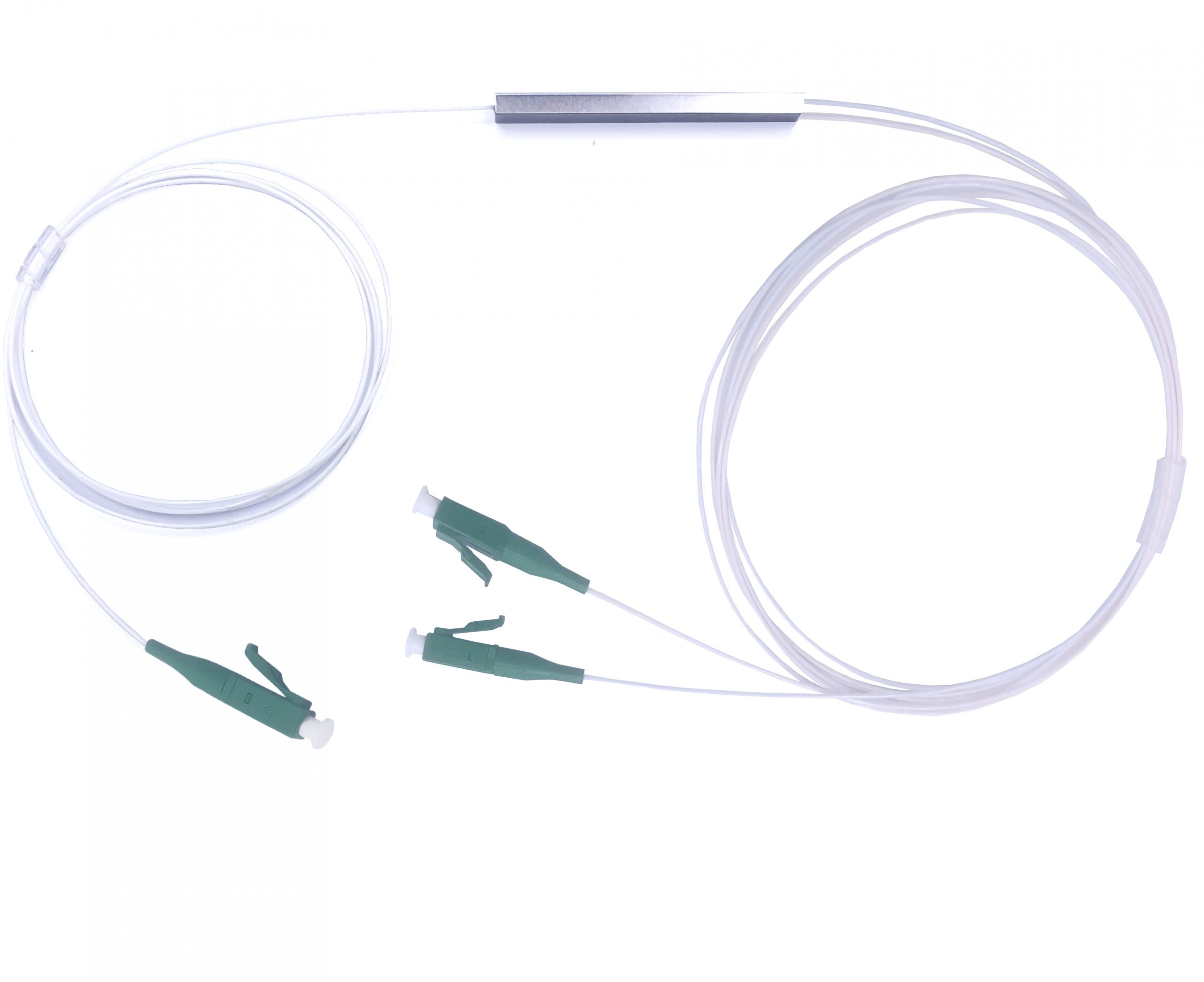

1 x 2 PLC Fiber Splitter, Mini Module, 900μm, LC/APC, Single Mode
Part Number: FLPLC102LCAPC009
Category: Fiber Optic Splitter
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
1 x 2 PLC Fiber Splitter, Mini Module, 900μm, LC/APC, Single Mode Overview
The 1 x 2 PLC Fiber Splitter Mini Module is designed to evenly distribute optical signals from one input to two outputs with excellent uniformity and low insertion loss. Featuring LC/APC connectors, 900μm fiber, and a compact mini module package, it is ideal for FTTH, GPON, EPON, CATV, and optical communication networks requiring reliable signal splitting and stable performance.
1 x 2 PLC Fiber Splitter Features
- 1 input × 2 output optical splitter
- PLC technology for uniform signal distribution
- LC/APC connector interface
- 900μm fiber cable design
- Compact mini module package
- Low insertion loss and high return loss
- Excellent environmental stability
- Suitable for indoor and outdoor fiber networks
1 x 2 PLC Fiber Splitter Applications
- FTTH (Fiber to the Home)
- GPON and EPON networks
- CATV optical distribution systems
- Optical communication networks
- Data centers
- Fiber optic testing systems
- Telecommunication infrastructure
1 x 2 PLC Fiber Splitter Specifications
| Specification | Details |
|---|---|
| Splitter Type | PLC Fiber Splitter |
| Port Configuration | 1 × 2 |
| Fiber Type | Single Mode (G.657A1) |
| Fiber Diameter | 900μm |
| Connector Type | LC/APC |
| Package Type | Mini Module |
| Insertion Loss | ≤ 4.0 dB |
| Return Loss | ≥ 55 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Standards | Telcordia GR-1209 / GR-1221 |
1 x 2 PLC Fiber Splitter Benefits
- Reliable optical signal splitting with minimal loss
- Compact design for easy installation
- High performance in FTTH and PON networks
- Excellent long-term reliability and stability
- Compatible with modern fiber optic infrastructures
1 x 2 PLC Fiber Splitter FAQs
What is a 1x2 PLC Fiber Splitter used for?
It splits one optical input signal into two equal output signals for FTTH, GPON, EPON, and fiber distribution networks.
Why choose LC/APC connectors?
LC/APC connectors provide low back reflection and improved signal quality for high-performance optical networks.
Can this splitter be used in GPON networks?
Yes, PLC splitters are widely deployed in GPON and EPON networks due to their low loss and uniform signal distribution.
