GYFXJC8H Figure-8 Outdoor Aerial Fiber Optic Cable
Category: Fiber Optic Cables
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview

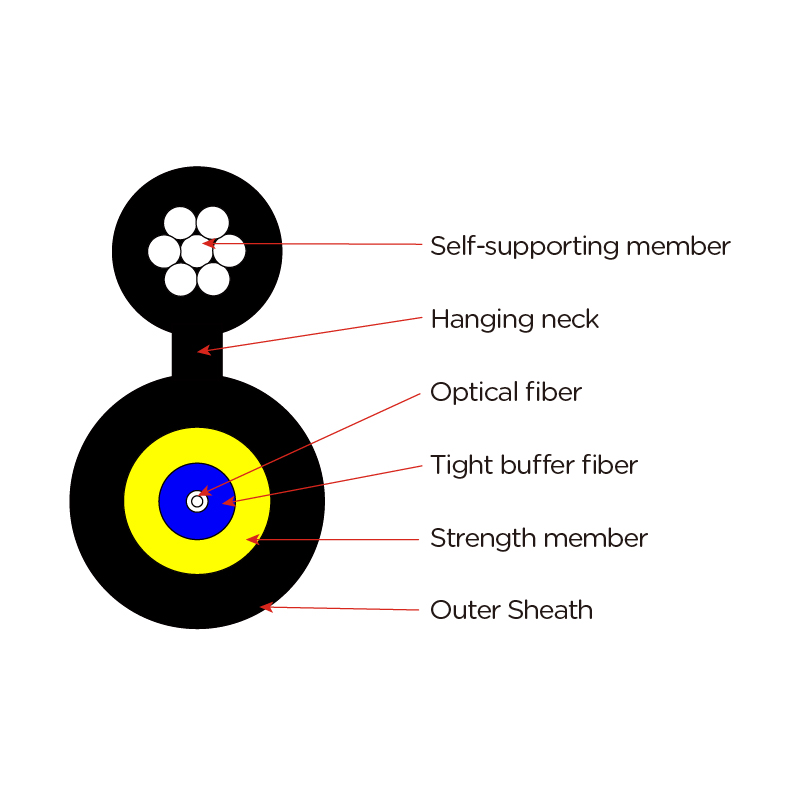

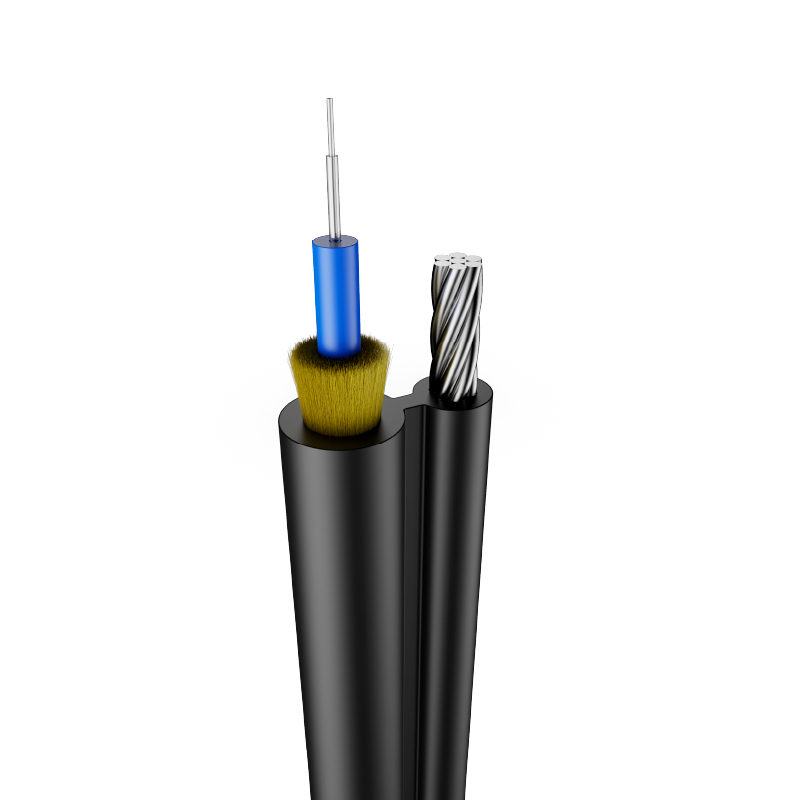

GYFXJC8H Figure-8 aerial fiber optic cable is designed for self-supporting outdoor installations. It integrates a steel messenger wire with fiber optic unit in a figure-8 structure for easy aerial deployment.
It uses G.652D single-mode fibers to ensure low attenuation and stable transmission for telecom and FTTH networks.
Features
- Figure-8 self-supporting design
- G.652D single-mode fiber
- Steel messenger wire for strength
- UV resistant HDPE jacket
- Suitable for aerial installation
- High tensile strength
- Water and moisture protection
Applications
- FTTH aerial networks
- Telecom backbone links
- Urban and rural deployments
- Between building connections
- Outdoor ISP networks
Technical Specifications
| Parameter | Details |
|---|---|
| Model | GYFXJC8H |
| Fiber Type | G.652D Single Mode |
| Structure | Figure-8 Self-Supporting |
| Strength Member | Steel Messenger Wire |
| Jacket | HDPE Black |
| Installation | Aerial |
| Temperature | -40°C to +70°C |
FAQs
What is GYFXJC8H cable?
It is a figure-8 aerial fiber optic cable used for outdoor telecom networks.
Why figure-8 design?
Because it combines fiber and messenger wire in one structure for easy aerial installation.
Where is it used?
Used in FTTH and telecom aerial networks between poles and buildings.
