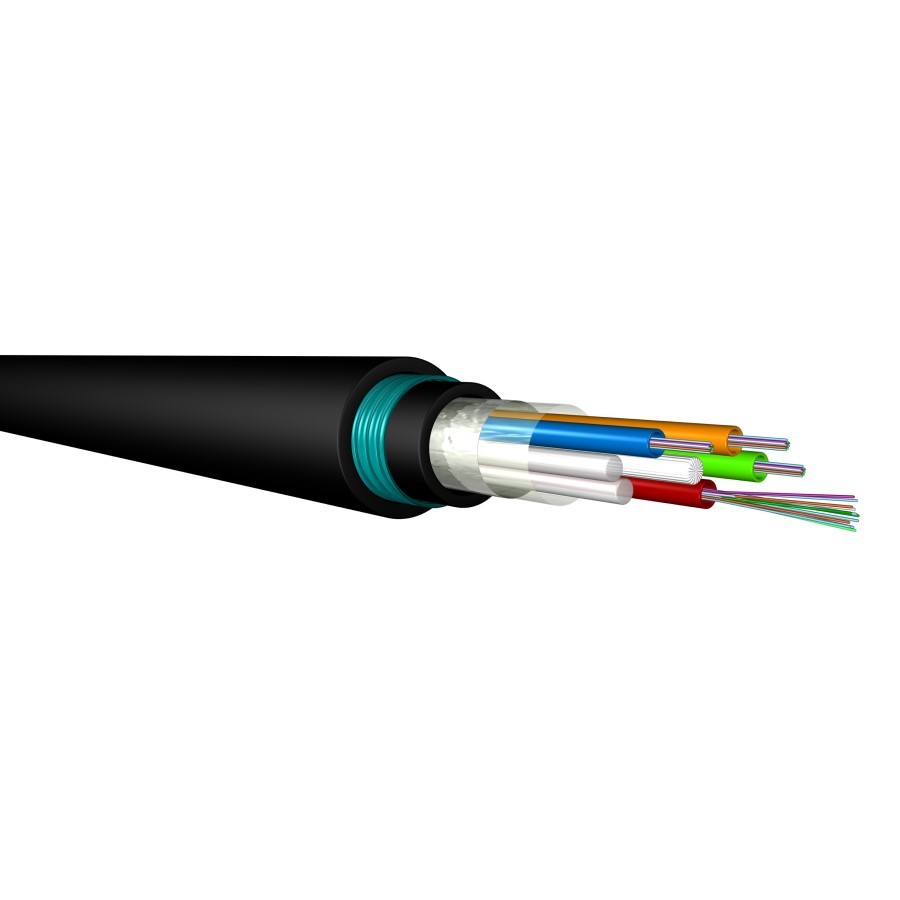

Fiber Optic Outdoor Cable – 96 Core Multimode OM3 – Steel Wire & Steel Tape Armored – HDPE
Part Number: FLFOCODD2096OM3LGSWASTAHD
Category: Outdoor Cable
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
The 96 Core Multimode OM3 Armored Outdoor Fiber Optic Cable is designed for high-capacity and reliable optical communication in demanding outdoor network environments. It contains 96 OM3 multimode optical fibers with a 50/125 μm core and cladding configuration, providing high-bandwidth performance for enterprise, campus, data communication, and network backbone applications.
The cable features robust steel wire and steel tape armor to provide enhanced mechanical protection against crushing, impact, external mechanical damage, and rodent activity. The HDPE outer sheath provides durable protection against moisture, abrasion, UV exposure, and other environmental stresses associated with outdoor installations.
With its high fiber count and reinforced construction, this cable is suitable for high-density outdoor fiber infrastructure, access and distribution networks, building-to-building connections, industrial networks, and other applications requiring reliable multimode optical connectivity.
Features
- 96-core multimode optical fiber construction.
- OM3 multimode fiber with 50/125 μm core and cladding.
- High fiber count for high-density network infrastructure.
- Steel wire armor for enhanced mechanical protection.
- Steel tape armor for additional mechanical and rodent protection.
- HDPE outer sheath suitable for outdoor environments.
- Good resistance to crushing and external mechanical forces.
- Enhanced protection against mechanical damage during installation.
- Good resistance to moisture, abrasion, and environmental stresses.
- Reliable high-speed multimode optical transmission.
- Suitable for demanding outdoor network environments.
- Suitable for duct and direct burial installations, subject to project requirements.
- Robust construction for long-term outdoor deployment.
- Designed for high-density fiber distribution and network expansion.
Applications
- Outdoor Multimode Fiber Optic Networks.
- Enterprise Network Infrastructure.
- Campus Backbone Networks.
- High-Speed Data Communication Networks.
- Data Center Interconnection.
- Access and Distribution Networks.
- Building-to-Building Fiber Connections.
- Industrial Communication Networks.
- Infrastructure and Utility Networks.
- Telecommunication Network Infrastructure.
- High-Density Fiber Distribution Systems.
- Outdoor Duct Installations.
- Direct Burial Applications.
- Network Backbone and Distribution Systems.
- Large-Scale Outdoor Fiber Deployments.
Specifications
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Multimode Fiber Optic Cable |
| Fiber Count | 96 Fibers |
| Fiber Type | Multimode |
| Fiber Grade | OM3 |
| Fiber Size | 50/125 μm |
| Cable Construction | Armored Outdoor Construction |
| Armor | Steel Wire & Steel Tape |
| Outer Sheath | HDPE |
| Installation | Outdoor, Duct & Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Application | High-Capacity Outdoor Multimode Fiber Networks |
| Applicable Fiber Standard | IEC 60793-2-10 / OM3 |
| Cable Standard | IEC 60794 |
