Fiber Optic Outdoor Cable – 48 Core Multimode OM3 – Steel Wire & Steel Tape Armored – HDPE
Part Number: FLFOCODD2048OM3LGSWASTAHD
Category: Outdoor Cable
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview

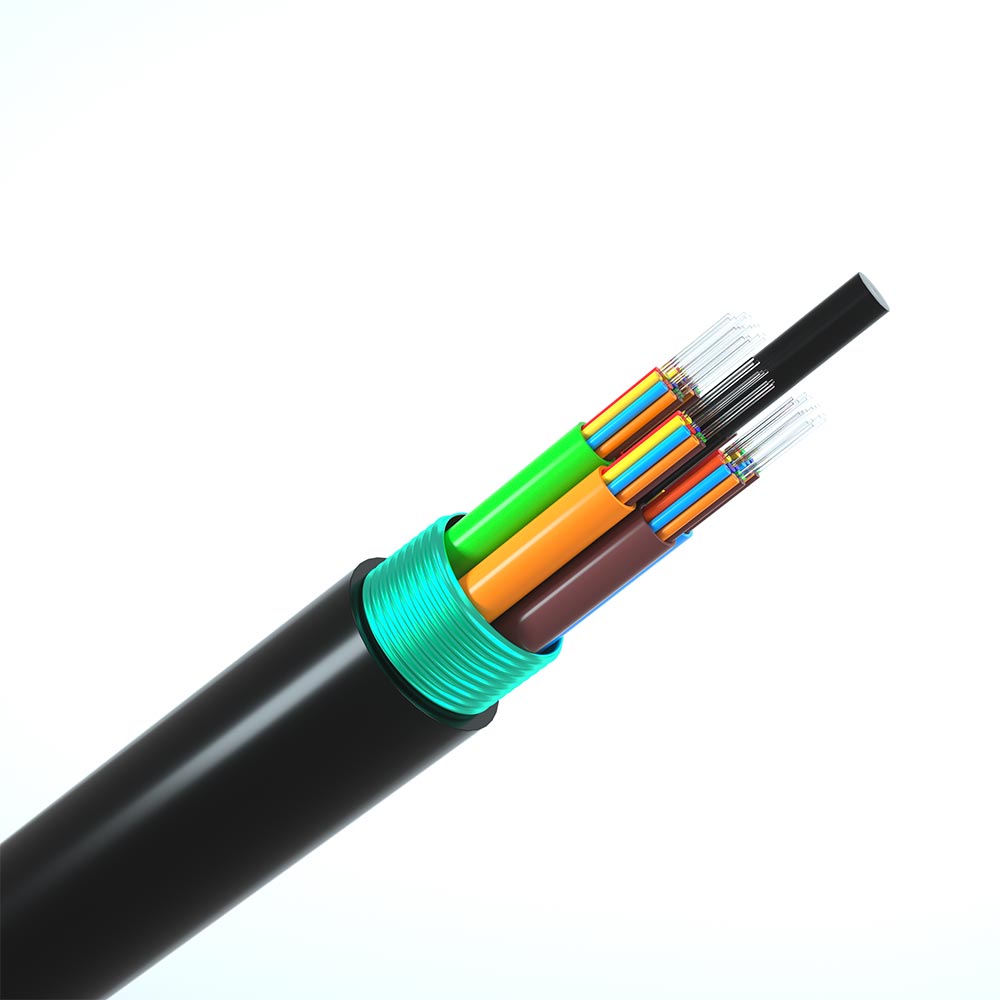

The 48 Core Multimode OM3 Armored Outdoor Fiber Optic Cable is designed for reliable high-speed optical transmission and high-capacity network connectivity in demanding outdoor environments. It contains forty-eight OM3 multimode optical fibers with a 50/125 μm fiber size and incorporates steel wire and steel tape armor to provide enhanced mechanical protection against crushing, impact, external damage, and rodent activity.
The HDPE outer sheath provides durable protection against moisture, abrasion, UV exposure, and harsh environmental conditions. With its high fiber capacity and robust armored construction, this cable is suitable for enterprise networks, campus networks, data communication systems, data center interconnection, access and distribution networks, industrial infrastructure, and building-to-building fiber connections.
Features
- 48-core multimode optical fiber construction.
- OM3 multimode optical fiber.
- 50/125 μm multimode optical fiber.
- Steel wire armor for enhanced mechanical protection.
- Steel tape armor for additional mechanical and rodent protection.
- HDPE outer sheath suitable for outdoor installation.
- High fiber count for increased network capacity.
- Good resistance to crushing and external mechanical forces.
- Good resistance to tensile stress during installation.
- Enhanced protection against moisture and environmental conditions.
- Reliable high-speed multimode optical transmission.
- Suitable for demanding outdoor network environments.
- Suitable for duct and direct burial installations.
- Robust construction for long-term outdoor deployment.
- Suitable for high-bandwidth multimode network applications.
Applications
- Outdoor Multimode Fiber Optic Networks.
- Enterprise and Campus Networks.
- High-Speed Data Communication Networks.
- Data Center Interconnection.
- Access and Distribution Networks.
- Building-to-Building Fiber Connections.
- Industrial and Infrastructure Networks.
- Outdoor Duct Installations.
- Direct Burial Applications.
- Telecommunication Network Infrastructure.
- High-Capacity Multimode Fiber Links.
- Network Backbone and Distribution Systems.
- Campus Backbone Networks.
- Industrial Communication Networks.
Specifications
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Multimode Fiber Optic Cable |
| Part Number | FLFOCODD2048OM3SWASTAHD |
| Fiber Count | 48 Fibers |
| Fiber Type | Multimode |
| Fiber Grade | OM3 |
| Fiber Size | 50/125 μm |
| Cable Construction | Armored Outdoor Construction |
| Armor | Steel Wire & Steel Tape |
| Outer Sheath | HDPE |
| Installation | Outdoor, Duct & Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Application | Outdoor High-Capacity Multimode Fiber Networks |
FAQs
What is a 48 Core Multimode OM3 Fiber Optic Cable?
It is an outdoor armored fiber optic cable containing forty-eight OM3
multimode optical fibers with a 50/125 μm fiber size. It is designed
for high-speed and high-capacity optical transmission in enterprise,
campus, data center, industrial, and outdoor network applications.
What is OM3 fiber?
OM3 is a 50/125 μm multimode optical fiber grade designed for
high-bandwidth and high-speed data communication applications. It is
commonly used in enterprise networks, data centers, campus networks,
and other high-speed multimode fiber systems.
What is the purpose of the steel wire and steel tape armor?
The steel wire and steel tape armor provide enhanced mechanical
protection against crushing, impact, tensile forces, external damage,
and rodent activity, making the cable suitable for demanding outdoor
installations.
What is the purpose of the HDPE outer sheath?
The HDPE outer sheath provides durable protection against moisture,
abrasion, UV exposure, and other environmental conditions encountered
during outdoor installation and operation.
Where can this OM3 fiber optic cable be installed?
The cable is suitable for outdoor duct, direct burial, enterprise,
campus, industrial, access, distribution, data center, and
building-to-building multimode fiber network applications.
How many fibers are included in this cable?
This cable contains 48 OM3 multimode optical fibers.
What are the advantages of OM3 fiber?
OM3 fiber is designed for high-bandwidth multimode applications and
supports high-speed network transmission over appropriate distances.
It is commonly used in enterprise networks, data centers, campus
networks, and high-speed data communication systems.
Is this cable suitable for outdoor installation?
Yes. The cable is designed for outdoor deployment and combines steel
wire and steel tape armor with an HDPE outer sheath to provide enhanced
mechanical and environmental protection.
Why choose a 48 Core OM3 fiber optic cable?
A 48-core OM3 cable provides high fiber capacity for network
infrastructure requiring multiple optical links. It is suitable for
high-density installations, network expansion, backbone systems, and
applications requiring additional fiber capacity for future growth.
Is the cable suitable for direct burial?
Yes. The armored construction and HDPE outer sheath make the cable
suitable for outdoor duct and direct burial applications when installed
according to the applicable installation requirements.
Is this cable suitable for high-speed data networks?
Yes. OM3 multimode fiber is designed for high-bandwidth data
communication and is commonly used in high-speed enterprise,
data center, campus, and backbone network applications.
