Fiber Optic Outdoor Cable – 144 Core Multimode OM2 – Steel Wire & Steel Tape Armored – HDPE
Part Number: FLFOCODD20144OM2LGSWASTAHD
Category: Outdoor Cable
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview

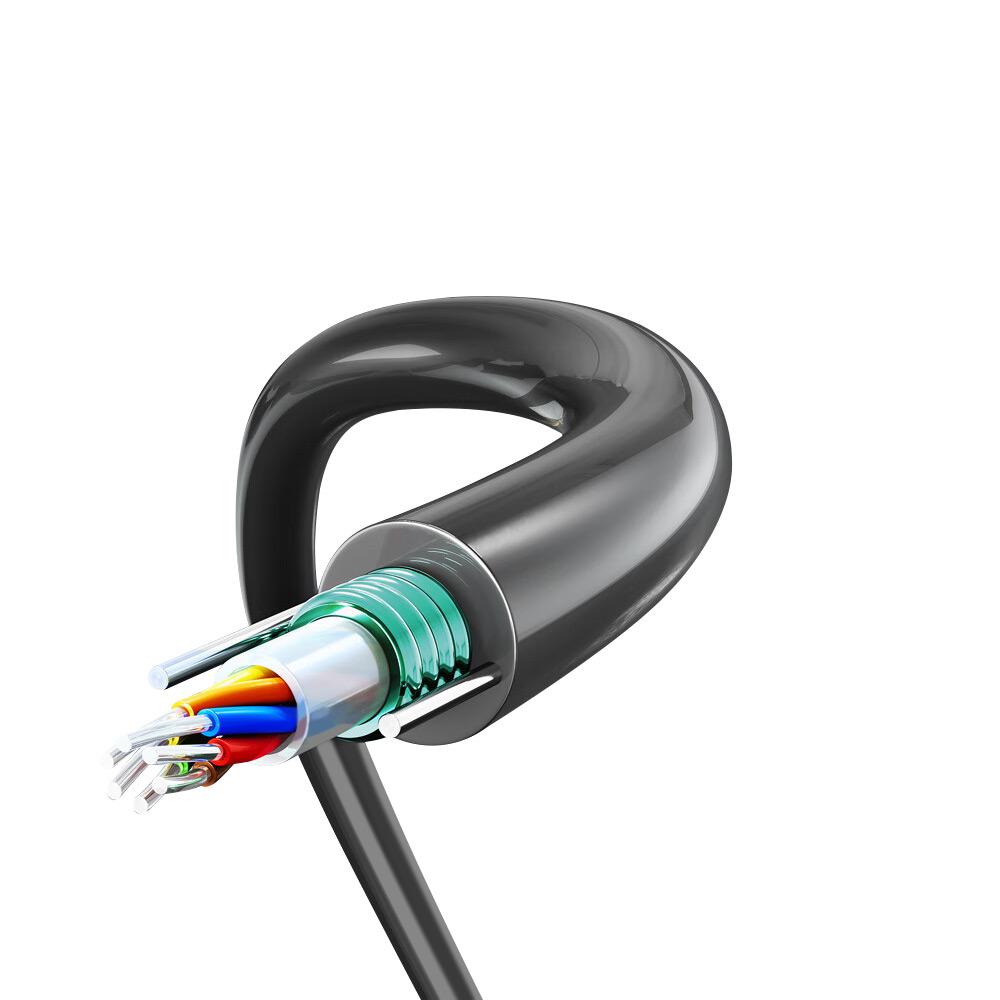

The 144 Core Multimode OM2 Armored Outdoor Fiber Optic Cable is a high-capacity optical cable designed for reliable and stable transmission in demanding outdoor network environments. It contains 144 OM2 multimode optical fibers with a 50/125 μm fiber size and features reinforced steel wire and steel tape armor for enhanced mechanical protection.
The HDPE outer sheath provides durable protection against moisture, abrasion, UV exposure, and harsh environmental conditions. Its high fiber count makes it suitable for large-scale enterprise networks, campus networks, data communication systems, access and distribution networks, backbone infrastructure, industrial networks, and building-to-building fiber connections.
The armored construction provides additional protection during installation and operation, making this cable a suitable solution for outdoor fiber infrastructure where high fiber density and mechanical protection are required.
Features
- 144-core multimode optical fiber construction.
- OM2 multimode optical fiber.
- 50/125 μm multimode fiber.
- High fiber count for high-density network infrastructure.
- Steel wire armor for enhanced mechanical protection.
- Steel tape armor for additional mechanical and rodent protection.
- HDPE outer sheath for outdoor applications.
- Good resistance to crushing and external mechanical forces.
- Good resistance to tensile forces during installation.
- Enhanced protection against moisture and environmental stresses.
- Reliable multimode optical transmission.
- Suitable for demanding outdoor network environments.
- Suitable for duct and direct burial installations.
- Robust construction for long-term outdoor deployment.
- High fiber capacity supporting future network expansion.
Applications
- Outdoor Multimode Fiber Optic Networks.
- High-Density Enterprise Networks.
- Campus and University Networks.
- High-Capacity Data Communication Networks.
- Data Center Interconnection.
- Network Backbone and Distribution Systems.
- Access and Distribution Networks.
- Building-to-Building Fiber Connections.
- Industrial and Infrastructure Networks.
- Outdoor Duct Installations.
- Direct Burial Applications.
- Telecommunication Network Infrastructure.
- Large-Scale Multimode Fiber Deployments.
Specifications
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Multimode Fiber Optic Cable |
| Part Number | FLFOCODD2144OM2SWASTAHD |
| Fiber Count | 144 Fibers |
| Fiber Type | Multimode |
| Fiber Grade | OM2 |
| Fiber Size | 50/125 μm |
| Cable Construction | Armored Outdoor Construction |
| Armor | Steel Wire & Steel Tape |
| Outer Sheath | HDPE |
| Installation | Outdoor, Duct & Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Application | High-Capacity Outdoor Multimode Fiber Networks |
