LSZH Fiber Optic Patch Cord SM (G.657A1) 9/125 SC-APC/LC-UPC Simplex 3.0 mm
Part Number: FLPCG71SX-SCA-000-LC-LS
Category: Patch Cord Single Mode
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
Patch Cord SC/APC-LC/UPC SX Overview
This LSZH single-mode fiber optic patch cord uses G.657A1 bend-insensitive fiber with 9/125 µm core/cladding, 1 meter in length, and SC to LC simplex connectors. Its 3.0 mm LSZH jacket ensures safe indoor use with low smoke and zero halogen emissions.
Patch Cord SC/APC-LC/UPC SX Applications
- FTTH and FTTX access networks
- GPON/EPON indoor network connections
- Patch panels and optical distribution frames
- Telecom and data center short-distance links
- Integration with OLT, ONU, and network splitters
Patch Cord SC/APC-LC/UPC SX Features
- Single-mode (SM) fiber, compliant with ITU-T G.657A1 standard.
- 9/125 µm core/cladding for high-performance optical transmission.
- SC connector on one end and LC connector on the other, simplex configuration.
- 3.0 mm LSZH jacket ensures indoor safety with low smoke and halogen-free design.
- 1-meter length suitable for short-distance patching in FTTH or telecom applications.
- Low insertion loss and high return loss for reliable signal performance.
- Durable and flexible for repeated installation and repositioning.
- Factory-terminated connectors ensure consistent quality and minimal signal loss.
Patch Cord SC/APC-LC/UPC SX Specifications
| Specification | Details |
|---|---|
| Product Name | LSZH Fiber Optic Patch Cord SM G.657A1 SC/APC-LC/UPC SX |
| Part Number | FLPCG71SX-SCA-003-LC-LS |
| Fiber Type | Single-mode (SM), G.657A1 bend-insensitive |
| Core/Cladding | 9/125 µm |
| Connector Type | SC (male) to LC (male) simplex |
| Jacket Diameter | 3.0 mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Length | 1 Meter |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Wavelength | 1310 / 1490 / 1550 nm |
| Temperature Range | -20°C ~ +70°C |
| Standards Compliance | IEC 60794, TIA/EIA-568, ITU-T G.657A1 |
Patch Cord SC/APC-LC/UPC SX Benefits
- Reliable, low-loss fiber connections for FTTH and indoor telecom networks.
- Bend-insensitive G.657A1 fiber reduces signal loss in tight bends.
- LSZH jacket improves safety in indoor installations.
- Compact SC/LC simplex design saves space in patch panels.
- Factory-polished connectors ensure consistent optical performance.
- Easy installation and maintenance for network technicians.
Patch Cord SC/APC-LC/UPC SX FAQs
What type of fiber is used?
Single-mode bend-insensitive G.657A1 fiber is used to minimize loss in tight bends.
What connectors are included?
SC connector on one end and LC connector on the other, simplex configuration.
What is the jacket material?
LSZH (Low Smoke Zero Halogen) jacket for indoor safety and fire protection.
Is custom length available?
Yes, custom lengths can be requested according to installation needs.
What is the typical insertion loss?
≤ 0.3 dB to ensure reliable optical signal transmission.
Related Products
Patch Cord SC-UPC/SC-UPC SX
PN: FLPCG71SX-SC-000-SC-LS

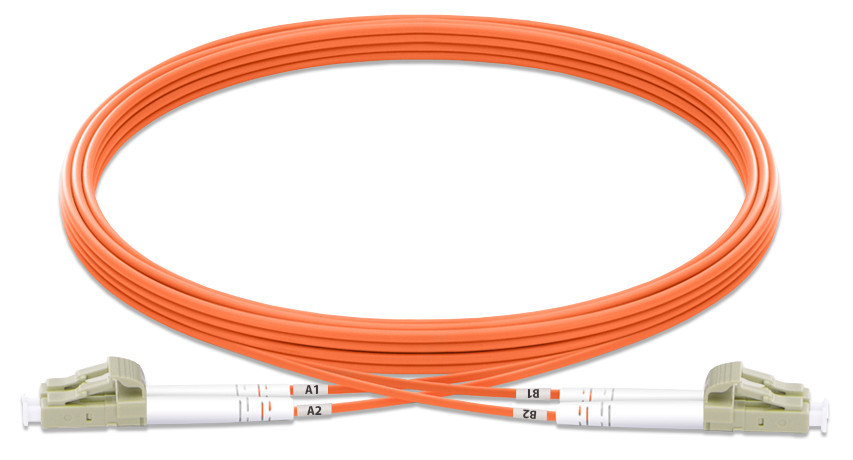

Patch Cord LC-LC OM2 DX
PN: FLPCO2DX-LC-000-LC-LS

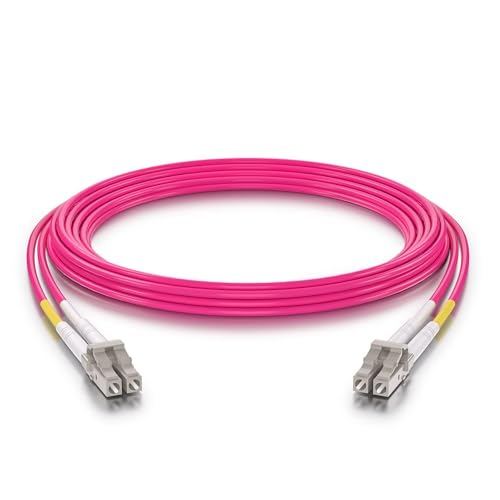

Patch Cord LC-LC OM4 DX
