Fiber Optic Outdoor Cable – 96 Core G652D Armored
Part Number: FLFOCODD2096LGSWASTAHD
Category: Outdoor Cable
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs

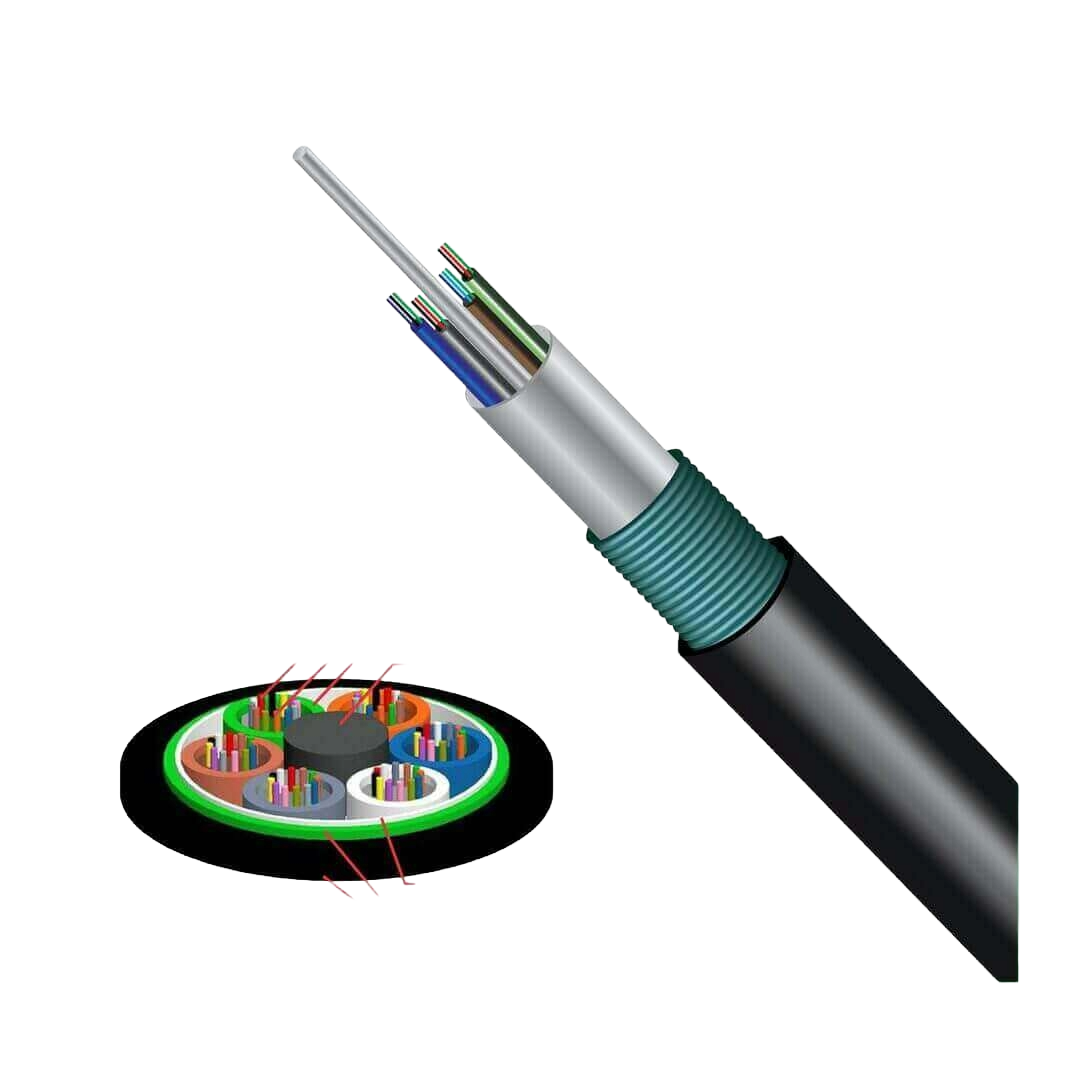

The 96 Core G652D Armored SM Outdoor Fiber Optic Cable is a high-capacity optical cable designed for reliable long-distance transmission in demanding outdoor environments. It contains 96 single-mode G.652D optical fibers and features an armored construction for enhanced protection against crushing, impact, tension, rodents, and other external mechanical stresses. The cable is suitable for telecommunication, FTTH, FTTx, access, distribution, metro, and backbone fiber optic networks.
- 96-core single-mode optical fiber construction.
- ITU-T G.652D compliant optical fiber.
- Armored construction for enhanced mechanical protection.
- Excellent resistance to crushing, impact, and tensile forces.
- Water-blocking protection for improved moisture resistance.
- Low attenuation for reliable long-distance transmission.
- Suitable for demanding outdoor environments.
- Supports duct and direct burial installation.
- High-density fiber capacity for large-scale networks.
- Durable construction for long-term outdoor deployment.
- Provides high-capacity and reliable optical transmission.
- Enhanced protection against mechanical and environmental damage.
- 96 fibers support high-density network deployments.
- Suitable for large-scale telecom and backbone infrastructure.
- Excellent resistance to moisture and outdoor conditions.
- Supports long-term network reliability and performance.
- Outdoor Telecommunication Networks.
- FTTH and FTTx Networks.
- Access and Distribution Networks.
- Optical Backbone Networks.
- Metro Fiber Networks.
- Data Center Interconnection.
- Duct Installation.
- Direct Burial Applications.
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Fiber Optic Cable |
| Fiber Count | 96 Fibers |
| Fiber Type | Single Mode (SM) |
| Fiber Standard | ITU-T G.652D |
| Fiber Diameter | 9/125 μm |
| Cable Structure | Armored Outdoor Construction |
| Armor | Metallic Armor |
| Outer Sheath | PE / HDPE |
| Installation | Duct, Direct Burial & Outdoor |
| Operating Temperature | -40°C to +70°C |
| Fiber Attenuation | ≤0.36 dB/km @1310 nm ≤0.22 dB/km @1550 nm |
FAQs
What is a 96 Core G652D Armored Outdoor Fiber Optic Cable?
It is a high-capacity outdoor armored fiber optic cable containing 96 single-mode G.652D optical fibers, designed for reliable optical transmission and enhanced mechanical protection.
What is G.652D fiber?
G.652D is a single-mode optical fiber standard widely used in telecommunications, access, metro, and long-distance optical transmission networks.
What is the purpose of the armored construction?
The armored construction provides additional protection against crushing, impact, tension, rodents, and other mechanical stresses during outdoor installation and operation.
Where can this cable be installed?
The cable is suitable for outdoor applications including duct, direct burial, access, distribution, FTTH, FTTx, and telecommunication backbone networks.
