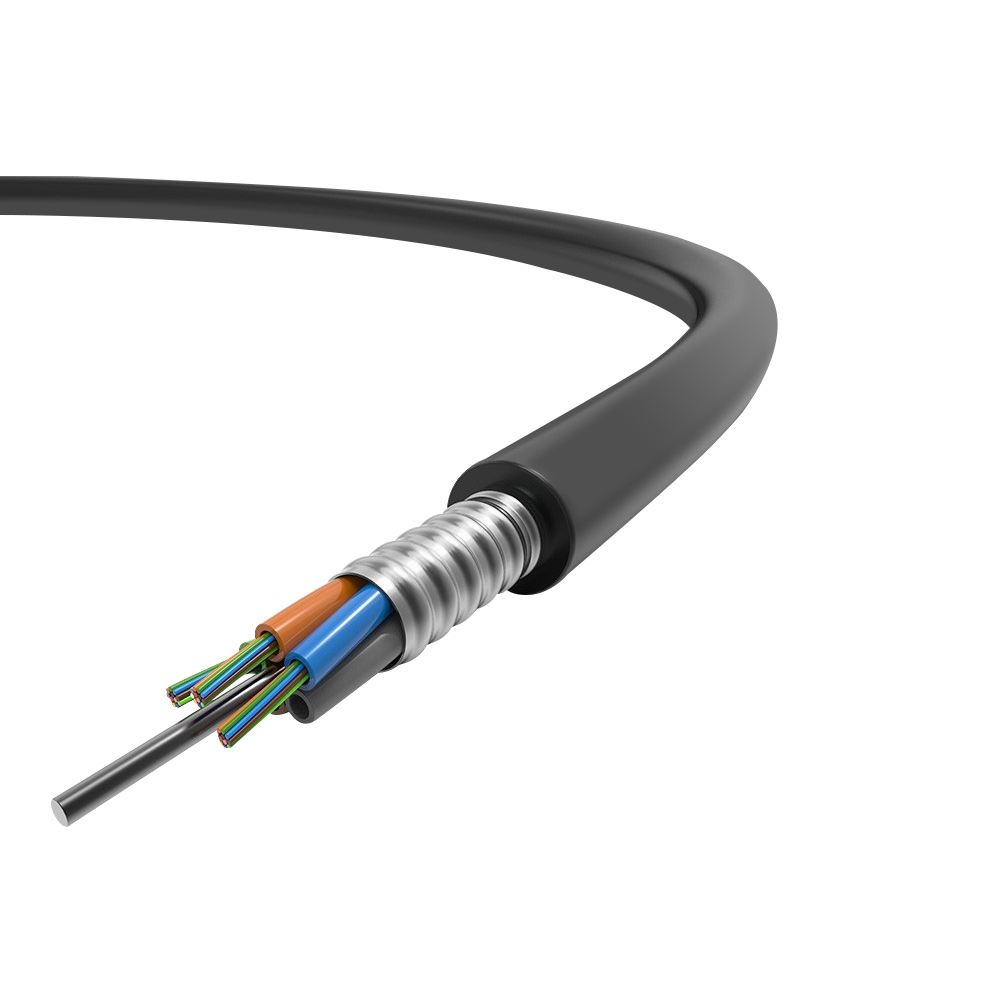

Fiber Optic Outdoor Cable – 36 Core G652D Armored
Part Number: FLFOCODD2036CTSWASTAHD
Category: Outdoor Cable
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
The 36 Core G652D Armored Outdoor Fiber Optic Cable is designed for reliable and stable optical transmission in demanding outdoor environments. It contains 36 single-mode G.652D optical fibers and features a robust armored construction that provides enhanced mechanical protection against crushing, impact, tension, rodents, moisture, and other external environmental stresses. The cable is suitable for telecommunication, FTTx, access, distribution, backbone, campus, and enterprise fiber optic networks.
With 36 optical fibers, the cable provides increased fiber capacity for network expansion and high-density outdoor deployments. The armored construction and PE/HDPE outer sheath make it suitable for demanding outdoor installation environments, including duct and direct burial applications.
- 36-core single-mode optical fiber construction.
- ITU-T G.652D compliant optical fiber.
- 9/125 μm single-mode fiber construction.
- Metallic steel tape armored construction for enhanced mechanical protection.
- Excellent resistance to crushing, impact, tension, and external mechanical stresses.
- Improved protection against rodents and environmental conditions.
- Water-blocking protection for improved moisture resistance.
- Low attenuation and reliable optical transmission.
- Suitable for long-distance outdoor fiber optic networks.
- Suitable for duct and direct burial installation.
- PE/HDPE outer sheath for outdoor environmental protection.
- 36 fibers provide increased network capacity and flexibility.
- Robust construction for long-term outdoor deployment.
- Outdoor Telecommunication Networks.
- FTTx Networks.
- FTTH Access Networks.
- Access and Distribution Networks.
- Optical Backbone Networks.
- Duct Installation.
- Direct Burial Applications.
- Campus Networks.
- Enterprise Networks.
- Fiber-to-the-Building Connections.
- Metro and Access Network Infrastructure.
- Outdoor Communication Infrastructure.
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Fiber Optic Cable |
| Fiber Count | 36 Fibers |
| Fiber Type | Single Mode |
| Fiber Standard | ITU-T G.652D |
| Fiber Diameter | 9/125 μm |
| Cable Structure | Armored Outdoor Construction |
| Armor | Metallic Steel Tape Armor |
| Outer Sheath | PE / HDPE |
| Installation | Duct, Direct Burial & Outdoor |
| Operating Temperature | -40°C to +70°C |
| Fiber Attenuation | ≤0.36 dB/km @1310 nm ≤0.22 dB/km @1550 nm |
| Application | Access, Distribution, Backbone and Outdoor Networks |
